Help Centerac dc Tig Welder
US$ 380 - 385
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KENMAI
Model Number:
WSME-200
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
KENMAI
Model Number
WSME-200
Arc Current
0-200
Pulse Frequency
50/60
Pilot Arc Current
0-200
Rated Duty Cycle
60%
Dimensions
580*370*510(mm)
Usage
welding machine
Voltage
230v
Certification
CE, ROHS
Warranty
one year
Specifications
MMA/TIG AC/DC Multifunctional Welding Machine1.WSME AC/DC digital display
2.Multifunctional welding machine

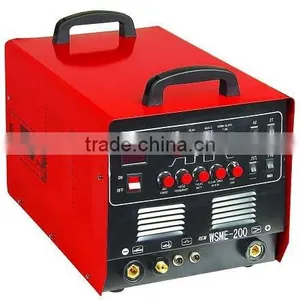

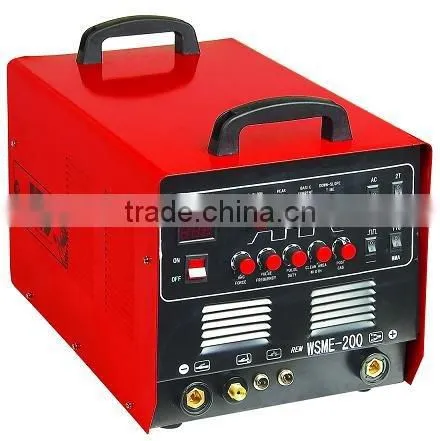

WSME-200 (MMA/TIG) AC/DC Multifunctional Welding Machine
Technical Specification
| Specification | WSME-160 | WSME-200 | ||
| Input voltage(V) | AC/DC220 | AC/DC220 | ||
| No-load Voltage(V) | 62 | 62 | ||
| Rated Duty Cycle(%) | 60 | 60 | ||
| Output Current Range(A) | 5-160 | 5-200 | ||
| Insulation Class | B | B | ||
| Up-slope Time(s) | 0-1 | 0-1 | ||
| Down-slope Time(s) | 0-10 | 0-10 | ||
| Post Gas(s) | 0-10 | 0-10 | ||
| Base Current(A) | 0-160 | 0-200 | ||
| Arc Force(A) | 0-50 | 0-50 | ||
| Pulse Frequency(Hz) | 0-200 | 0-200 | ||
| Pulse Duty(%) | 10-90 | 10-90 | ||
| Clean Width(%) | 20-80 | 20-80 | ||
| Weight(KG) | 26 | 26 | ||
| Dimension(mm) | 580*370*510 | 580*370*510 | ||
| MMA | TIG | MMA | TIG | |
| Rated Input Capacity(KVA) | 5.3 | 3.3 | 7 | 4.5 |
| Rated Output Voltage(V) | 26.4 | 16.4 | 28 | 18 |
| Arc-starting | Torch | HF | Torch | HF |
Main Features of WSME-200
1. High quality square wave current, speed current transform, stable arc, no need to use HF in stabling the arc.
2.Concentrated heat, solid arc, easy to fill in the wire, especially suitable for the wire filling welding in bicycle industry.
3.Strong capability for clearing oxidation film, the clear width can be adjusted continuously and the welding seam is beautiful and bright.
4.Can meet the demand of butt welding, angle welding, etc.
5.Widely used in aluminum, carbon steel, stainless steel, cooper and titanium welding, etc.
6.With complete accessories.
7.Carton box.
