Help CenterInverter Arc Welding Machine
Related Products
Specifications
inverter Welding Machinehigh efficiency of welding machine
low noise
inverter welding machine with pulse control
ROHS.CE
inverter welding machine
Item no:MMA-200
Technical Specification
model |
Digital MMA-200 |
| Rated Input Voltage(V) | 230 |
| Input Capacity(KVA) | 6.7 |
| Frequency(Hz) | 50/60 |
| No-load Voltage(V) | 62 |
| Current Range(A) | 10-200 |
| Output Voltage(V) | 28.0 |
| Rated Duty Cycle(%) | 100 |
| Efficiency(%) | 85 |
| Applied Welding Rod(mm) | 1.6-4.0 |
| Class of Insulation | B |
| Case Protection Degree | IP21 |
| Net Weight(kg) | 8.0 |
| Dimension(mm) | 440*220*320 |
inverter welding machine Main Features:
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Strong welding permeability, less splash, good weld appearance, sound-proof.
5.Suit for all kinds of basic and acid electrodes.
6.Be able to long-distance weld all kinds of material, such as stainless steel, steel, tungsten, titanium, nickel and other alloy material.
7.With complete accessories.
8.Carton box/BMC.

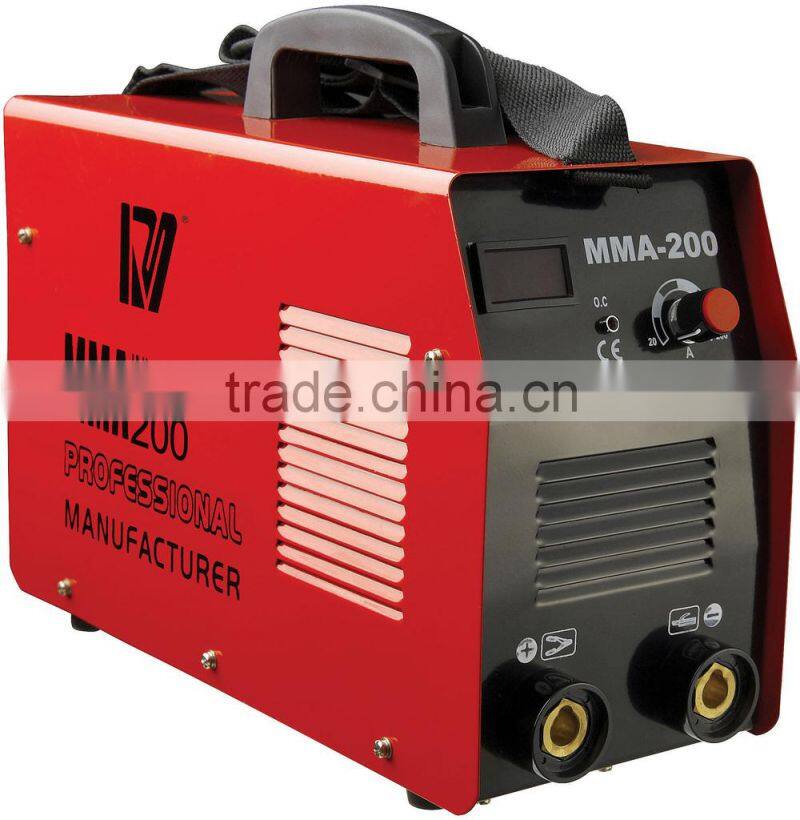

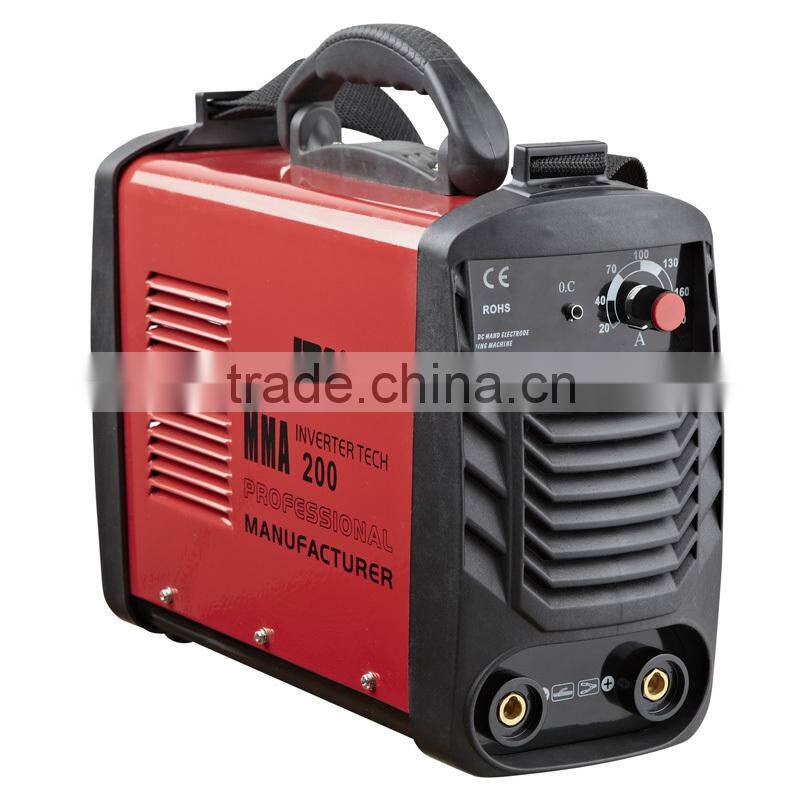

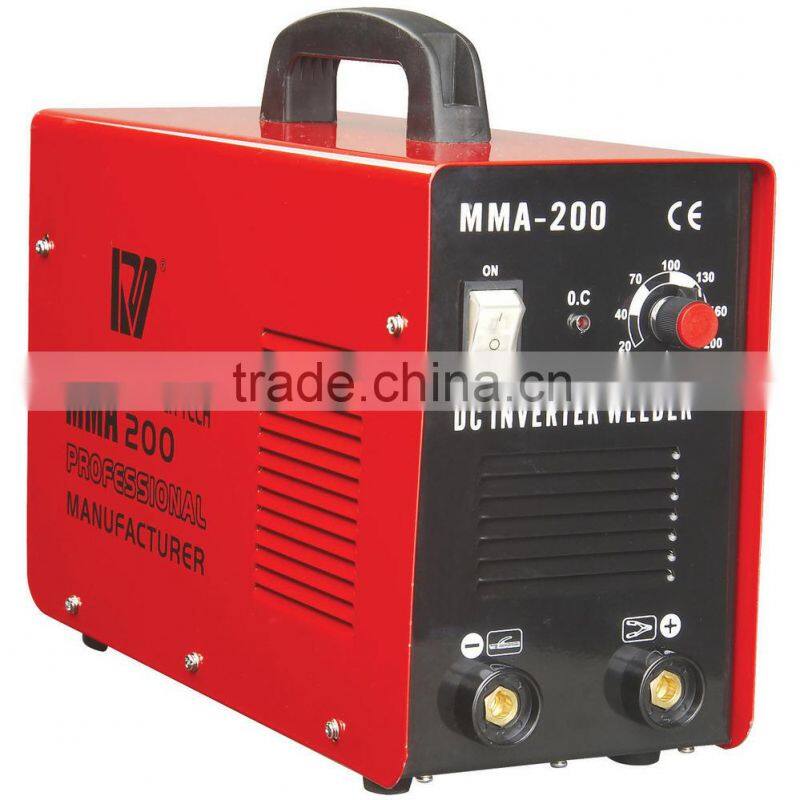

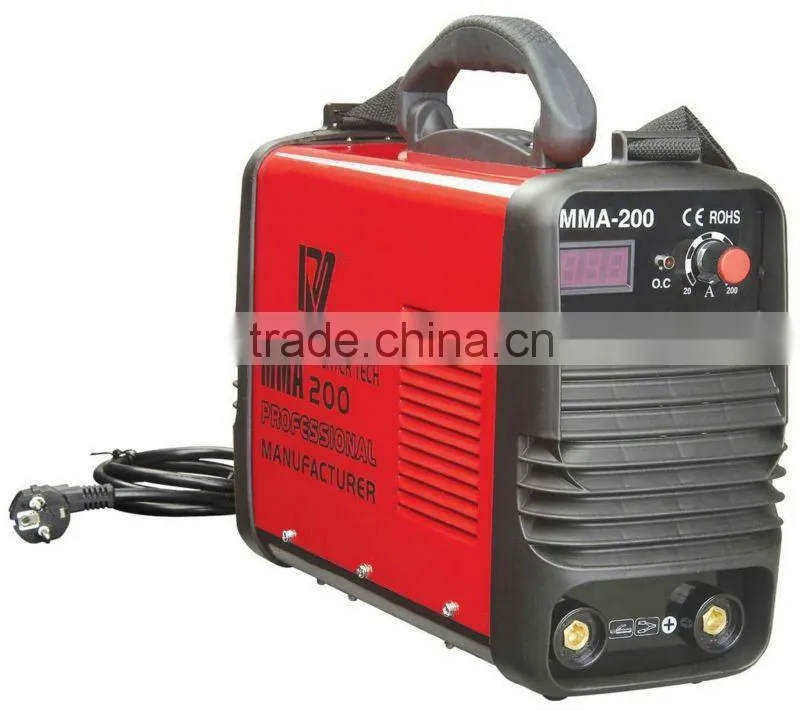

MMA-200(inverter Welding Machine)
About us:
Taizhou Changda Welding Machine Manufacturing Co., Ltd. is located in Taizhou, a beautiful coastal city in Zhejiang on the coast of the East China Sea. Our company is a high-tech company, specializing in studying and manufacturing inverter welding machines. With Haimen Port to the north of the area, Huangyan Airport to the east, and Hangwen Freeway passing through, our company boasts convenient land, sea and air transportation.
Our company has already attained the certificates of CQC in China and the ISO9001 international quality system. Moreover, all of our products have obtained the certificates of CE, RoHS, LVD and EMC. Our products are widely used in machinery, metals, petro-chemical pipelines, aerospace and electronic engineering industries. They are sold to distant areas such as America, Europe, the Middle East, and Southeast Asia. At present, our products have won high appreciation among our customers because of unique designs, innovative structures, reliable performance and convenient maintenance.
Our company advocates the principle of "market-oriented, being honest and trustworthy" with leading technology and superior service. Our company can provide top-ranking products, competitive prices and reliable quality as well as the most professional services for you. We warmly welcome you to visit our company for instruction, cooperation and development.
