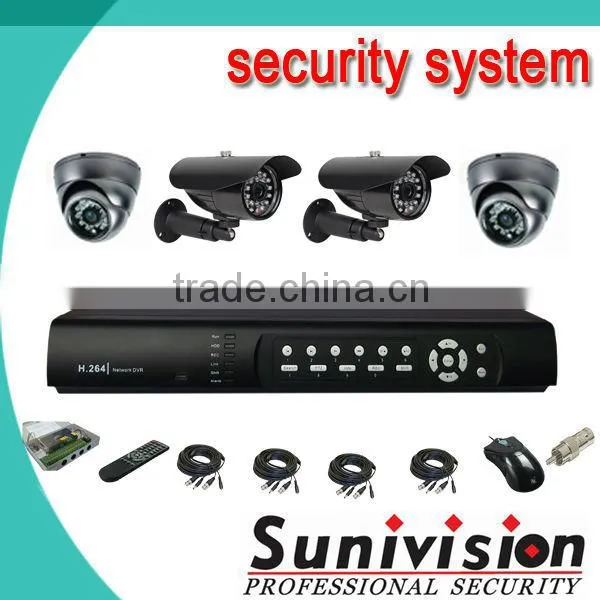

Metal indoor and outdoor Sony 700tvl home Security Systems 8ch cctv camera dvr kit
Packing detail
2pcs metal bullet camera sony 420TVL 24pcs IR leds
2pcs metal dome camera sony 420TVL 24pcs IR leds
1pc 4CH H.264 DVR with VGA, support mobile monitor
4pcs 20meter(65ft) video+power Cable
1pc Power supply for 4 camera 12V DC 3A
1pc 1 metre crossed network patch lead
1pc BNC to TV connector
1pc DVR mouse
1pc DVR remote control
4pcs CCTV Sign
DVR pic:

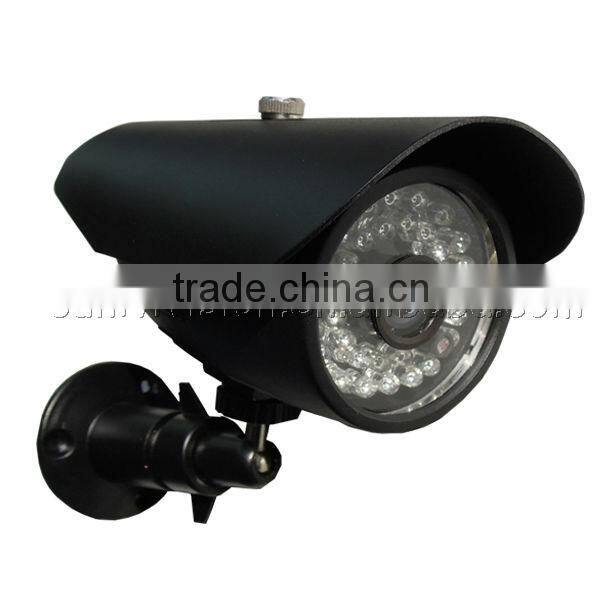

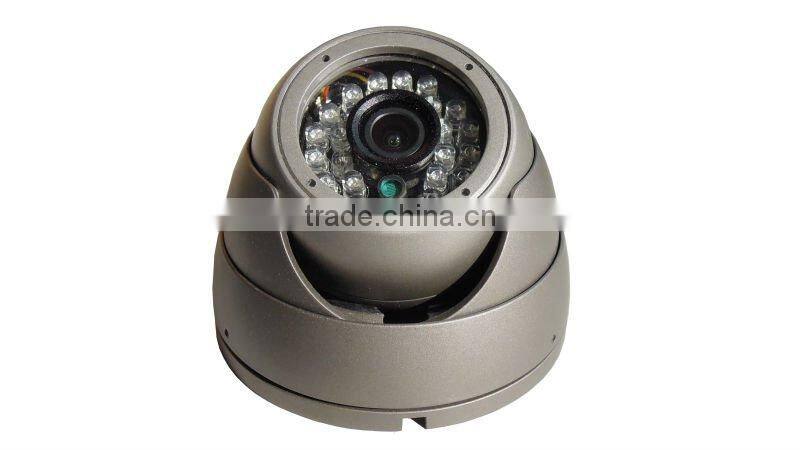

Camera Pic:
Connection:
More products:
DVR Specification:
4CH DVR; Support Remote Control by IE, Iphone, Android, Symbian, BlackBerry and Mobile System
H.264 compression; Video Input/Output:4CH/1CH; Audio Input/Output:1CH/1CH; With VGA output
Display Frame Rate:NTSC:120fps/ PAL:100fps
Recording Frame Rate:NTSC:120fps / PAL:100fps
Support 1pc 2T SATA HDD;
Support 4ch Full D1 realtime recording.
PLAYBACK synchronously MAX: 4CH;
With CMS central control software
Support PTZ control via built-in RS-485 port
Camera Specifications:
MODEL |
AP-14SGH7 / AP-147SH7 |
|
Image Device |
1/4 CMOS 700TVL |
|
Effective Pixel |
NTSC: 510x492/ PAL: 628x582 |
|
Resolution |
700TVL |
|
Sync. System |
Internal |
|
Minimum Illumination |
0LUX(IR ON) |
|
S/N Ratio |
no less than 48dB |
|
Gain Control |
Auto |
|
White Balance |
Auto(2500degree K~9500degree K) |
|
Electronic Shutter |
Auto E Shutter:1/60(1/50)~1/100000 Sec |
|
Back light Compensation |
AUTO |
|
Lens Mount Type |
3.6mm |
|
IR LEDS |
24pcs | |
IR Distance |
20m | |
AGC |
AUTO |
|
Smart Light Control |
YES |
|
IP Rating |
IP66 |
|
Video Output |
1.0Vp-p,75Ω |
|
Power Consumption |
150mA |
|
Power Supply |
DC12V |
|
Operation Temp |
-10~+50degree |
|
Welcome to buy samples for testing!
Our Company :
Sunivision Technology Development Company Limited is the leading professional manufacturer for camera cctv, dvr in China. We export camera cctv to all of the world, over one hundred of countries. Our camera cctv enjoy a very good fame among our customers for stable performance.
We have 5 professional engineers for R&D camera cctv. All the camera cctv software is developed by ourselves according to customer’s special requirement for color, brightness, lux. We could provide different layout of the camera cctv board for different customers.
1. We have 6 production line for camera cctv, and our daily camera cctv out put is 2000pcs.
2. We have enough material stock for camera cctv. We could make quick delivery for camera cctv system
3. We have strict QC inspection for camera cctv so that we could keep the stable quality for camera cctv system
· Lens fix for camera cctv set
· Assembling test for camera cctv set
· Semi-product test for camera cctv set
· Led production for camera cctv kit
· 24 hours Aging for camera cctv kit
· Night vision testing for camera cctv kit
· Final inspection for camera cctv kit
· Logo printing for camera cctv kit
Products Process:
Exhibition:
After-Sale Services:
All our products have 2 year warranty, And we sure the product will be free from maintenance within warranty period.
Faster delivery:
Within 3 days for sample after payment cleared.
Within 3-7 days for medium & large order after payment cleared.
Remark:
1, can design and print packing box according to your requirements.
2, can put your logo & model No. & series No. on the cameras and packing Box
Products packing:
