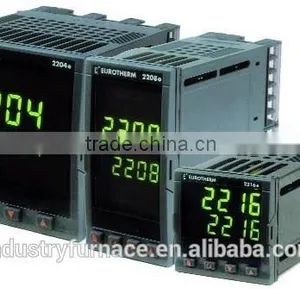

Industrial Intelligent Programmable Process Controller PID Temperature Controllers

                                       Process Controller / Programmer

Brief

The 2604 is a highly accurate and stable process controller available in a

single, dual or triple loop format. Can be used to control both furnace temperature, carbon potential and quenching.

Function

Synchronised temperature/carbon profiles

Automatic probe cleaning

Furnace sooting alarm

Probe deterioration alarm

Temperature control of quenching

Comprehensive selection of maths and logic functions

Feature

Setpoint programmer

50 Programs

3 Profiled setpoints/program

500 Segments

16 Event outputs

Furnace Temperature Control

Although the sensor input of the temperature loop can come from the zirconia probe, it is more common for a separate thermocouple to be used. The heat control output can either be connected to gas burners or thyristors. In some applications a cooling output may also be connected to a circulation fan or an exhaust damper.

Furnace Atmosphere Control

In atmosphere loops the controller increases the carbon potential by opening a solenoid valve which allows a carburising gas (ie propane) to enter the furnace. Conversely, to decrease the carbon potential, air or nitrogen is introduced into the furnace. Automatic probe cleaning functions ensure that the reading is accurate, whilst probe health and sooting alarms warn of a deterioration in the probes performance.

Quenching Temperature Control

Steel parts are rapidly cooled (Quenched) from around 850℃to obtain the desired hardness, strength or toughness. Depending on the material being treated, the quench medium is usually oil or water. The quench control loop maintains the quench bath at the desired temperature and provides a quench timer facility.

Sooting Alarm

As well as alarms on the temperature and carbon potential in the furnace the 2604 can trigger an alarm, when the atmospheric conditions are such that carbon will be deposited as soot on all surfaces inside the furnace, including the workpiece. Avoiding sooting protects the furnace lining, maintains the accuracy of the zirconia probe and stops formation of a soot barrier on the workpiece which can prevent carbon diffusion.

Automatic Probe Cleaning

The 2604 has a probe clean and recovery strategy that can be programmed to occur between batches or manually requested by an operator. A short blast of compressed air is used to remove any soot and other particles that may have accumulated on the probe. Once the cleaning has been completed the time taken for the probe to recover is measured. If the recovery time is too long this indicates that the probe is ageing and replacement or refurbishment is due. During the cleaning and recovery cycle, the CP reading is frozen thereby ensuring continuous furnace operation.

Enriching Gas Correction

A gas analyser can be used to determine the CO concentration of the enriching gas. If an analogue output is available from the analyser, it can be fed into the 2604 to automatically adjust the calculated carbon reading. Alternatively, an operator may enter this value manually.
