Pit type rolling ring furnace
Brief
Pit type rolling ring furnace is new type and energy-saving batch type furnace.Mainly used for large annular metal parts for hardening and tempering, annealing, etc.
Structure
This furnace is mainly composed of furnace shell, furnace lining, lifting mechanism and furnace cover, heating device and electric control system, etc.
Advantages
1.Furnace shell is frame structure, is made of steel and steel plate welded;
2.Furnace cover supporting is channel steel and rail, formed combination of mobile structure;
3.Using the new environment-friendly multiple furnace lining, excellent in temperature protection effect, more efficient than other furnace;
4.Microcomputer intelligent instrument control, to handle power adjusting and pressure regulating by silicon controlled parts,complete heating,heat preservation,cooling and other process engineering automatically,the temperature control is precise, stable and reliable. Can use the programming control to storage the record the in-real time, also have functions of group control and network.
Technical data (example of execution)
Item |
Parameter name |
Parameters requirements |
1 |
Plant capacity |
Appr.800 kg/hr net (180pc/hr) with CHD 0,6mm |
2 |
Tablet measures |
880mm*280mm(L*W); 3 parts / tablet |
3 |
Working temperature |
Max.950℃ |
4 |
Gross heating up capacity |
Max.1250 kg/hr |
5 |
Heat treatment parts |
Shafts and wheels of 20 MoCr4 |
Note: Various size of annular pit type furnace can be also designed and manufactured as user's needs.

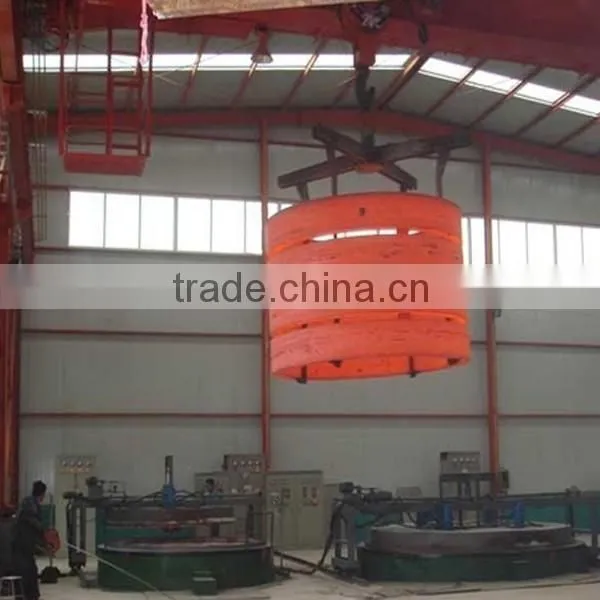

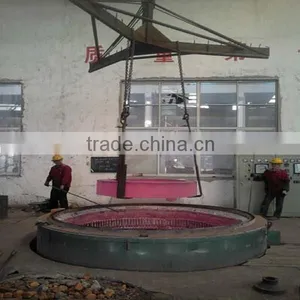

Detailed images
