Help CenterSmall Tumble Belt Shot Blasting Machine
Related Products
-
Crawler Tumble Belt Type Shot Blasting Machine for SaleUS$ 25,000 - 35,000MOQ: 1 Set -
Tumble Blet Crawler Shot Blasting Machine /derusting Desaclling Cleaning EquipmentUS$ 20,000 - 30,000MOQ: 1 Set
-
Tumble Blet Shot Blasting Machine /derusting Desaclling EquipmentUS$ 20,000 - 30,000MOQ: 1 Set
-
Tumble Blet Shot Blasting Machine /derusting Desaclling Cleaning EquipmentUS$ 15,000 - 50,000MOQ: 1 Set
-
15 GL Apron Shot Blast Machine With Metallic BeltUS$ 50,560 - 305,650MOQ: 1 Set
Specifications
1.Design based on requirments2.Prompt Delivery
3.Competitive price
4.Tumble blast
5.Casting & forging blasting machine
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.

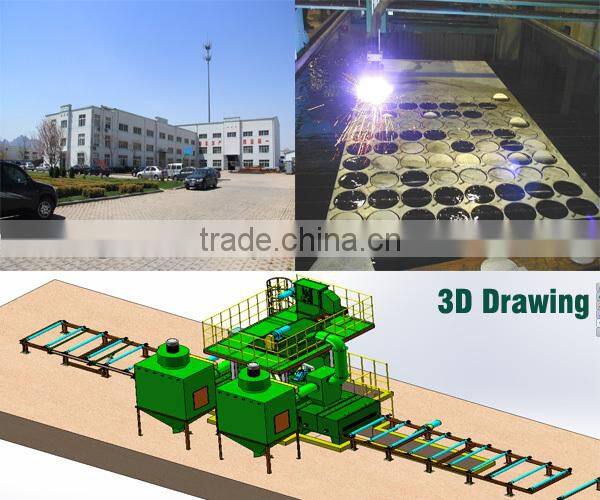

3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

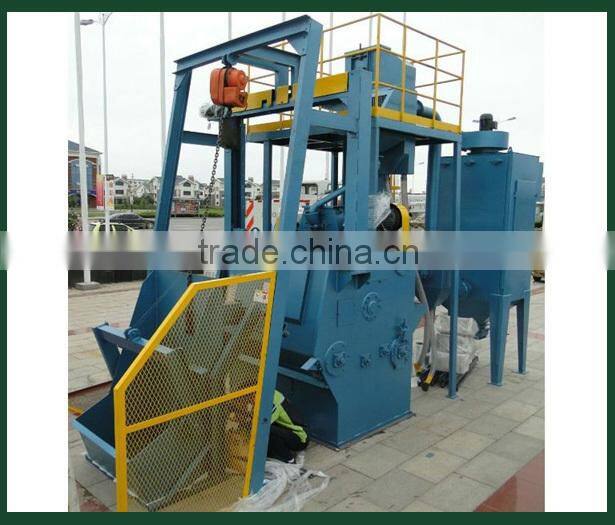

This small shot blasting machine uses wear proof rubber belt to load castings.

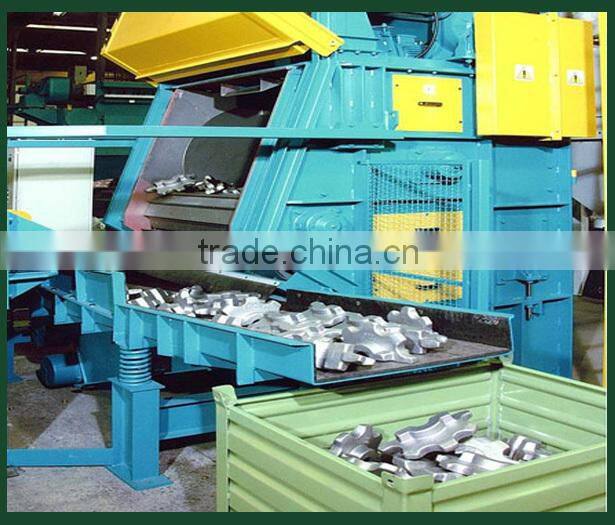

The tumble blast machines with rubber belt conveyor are employed for the surface treatment of batches of parts, loaded manually or automatically by means of a hydraulic skip loader.
The belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement the whole surfaces of the parts are exposed to the shots thrown by the turbines.
The offloading of the parts is obtained by the rotation of the belt conveyor in the opposite sense. Parts can fall directly into the empty container or through an offloading belt or vibrating conveyor.
The max loading capacity can vary from 200 to 600 Kilos in weight.
Technical Specification of Q326EA tumblast machine:
1. Productivity: 0.6-1.2 T/h
2. Max Load capacity: 200 KG
3. Max weight of single castings: 10 KG
4. Load volume: 0.15 CBM
5. Blast wheel quantity: one
6. Motor power of wheel: 7.5 Kw
7. Abrasive flow rate: 120 kg/min
8. Power consumption: 12.6 Kw
9. Dust collector: bag type
Technique parameter:
| Item | Unit | Q326C | QR3210 | 15GN | 28GN |
| Productivity | T/hr | 0.6-1.2 | 1.5-2.5 | 5-6 | 10-12 |
| Feeding amount | Kg | 200 | 600 | 1300 | 3500 |
| Max weight of single piece | kg | 10 | 30 | 230 | 360 |
| Diameter of round disk | mm | 650 | 1000 | 1092 | 1245 |
| Effective volume | cbm | 0.15 | 0.3 | 0.43 | 0.79 |
| Abrasive blast rate | kg/min | 100 | 250 | 480 | 700 |
| Air volume of dedusting | cbm/hr | 2000 | 5000 | 5300 | 6500 |
| Power consumption | Kw | 12.6 | 24.3 | 49.3 | 64.5 |
Notice:
According to your requirements,the most suitable machines will be designed for your workpieces please indicate
the folloing details.
1.What kind of workpiece will you clean?
2.The workpiece size,length, width and height of maximum workpiece ?
3.How many workpiecs do you want to clean per day?
Based on this question,the detaled technical proposals will be sent to you for reference.
1.Production time of 40 days small shot blasting machine
2.Installation and commissioning time:20 days
3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation
and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD
70 per day per person.
4.warranty time of shot blasting machine:12 months from date of commissioning completion,but no more
than 18 months from date of delivery.
5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery
6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,
manual book,electric wiring diagram,electric manual book and maintenance book ,etc .
