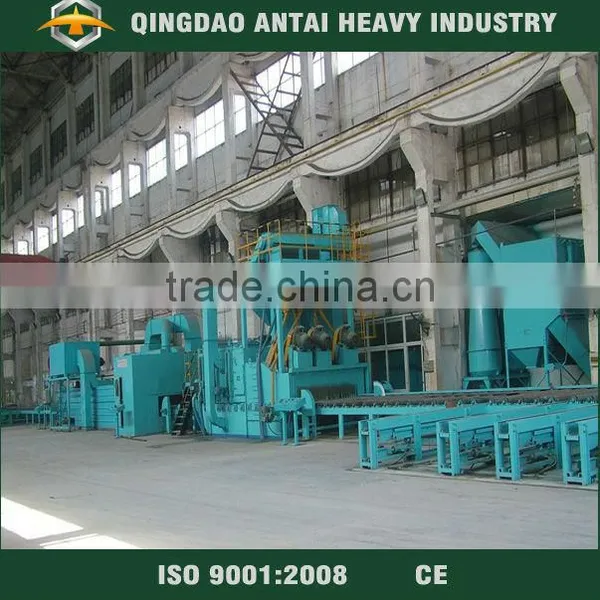

Q69 raceway through the type shot blasting machine

Specifications

1.Design based on requirments
2.Prompt Delivery
3.Competitive Price
4.8 turbine wheels
5.Pass through type

Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.









This series of shot blasting machines belong to the roller type shot blast-cleaning machine ,and mainly used to de-stress and surface de-rust the steel structures,such as Large-scale H steel,etc.In the construction and bridge professions. We can design different size of shot blasting machine for H beam and other structure steel according to customer's demand.



Structure steel shot blasting machine

Tunnel type shot blasting machine

Roller shot blasting machine

Technical Specification:

Model: QH6920



1. Inlet opening: 2000mm(W)* 2500mm(H)

2. Size of H beam: Height≤2500mm, Width ≤1000mm

3. Roller conveyor speed: 0-4 m/min, frequency inverter

4. Max load of conveyor: 1500 kg/m

5. Rust removal standard: Sa2.5

6. Number of turbine: 12 pcs

7. Power of turbine: 11 KW* 12

8. Total power of this machine: about 240 KW

9. Protective liner of cabinet: ZGMn 13

10. Dust collector: cyclone+cartridge type dust collector

11. Noise level: ≤90 dB



other models specification:

No.	Model Item		Q698	Q6912	Q6915	Q6920	Q6925
1	Width of workpiece	mm	800	1200	1500	2000	2500
2	Size of inlet opening	mm	800*1600	1200*400	1500*400	2000*400	2500*800
3	Length of workpiece	mm	1200-12000	1200-6000	1200-12000	1200-12000	3000-12000
4	Roller speed	m/min	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5
5	Thickness of plate	mm	3-60	3-60	1.5-60	3-60	3-60
6	Abrasive flow rate	kg/min	8*120	4*250	4*250	6*250	6*250
7	Abrasive initial fill	kg	4000	4000	4000	4500	4500
8	Adjusting height of rolling brush	mm	400	200	350	450	600
9	Ventilation capacity	m3/h	22000	17560	19000	19550	27758
10	Total power (no dust collector)	kw	90	78.3	113.6







































































1.Production time of 40 days pass through shot blasting machine

2.Installation and commissioning time:20 days

3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation

and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD

70 per day per person.

4.warranty time of shot blasting  machine:12 months from date of commissioning completion,but no more

than 18 months from date of delivery.

5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery

6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,

manual ook,electric wiring diagram,electric manual book and maintenance book ,etc
