steel plate shot blasting and auto painting and drying line
- 12 Set / Sets per Month
- Qingdao
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Shandong, China | Brand Name: | Antai | Model Number: | QXY2500 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.roller conveyor type2.preheating,blasting,painting&drying
3.fully automatic
4.shot blasting for steel plate
5.PLC control
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE & TUV certificate will be issued soon.
Worked with world famous supplier, such as ABB, SEW, OMRON, Mitsubishi, SIEMENS,etc.
Own foundry has a large spare parts warehouse for our customers.

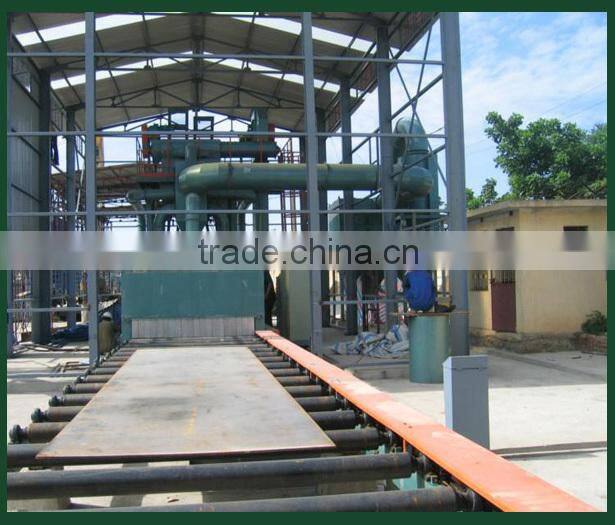

Shot blasting machine

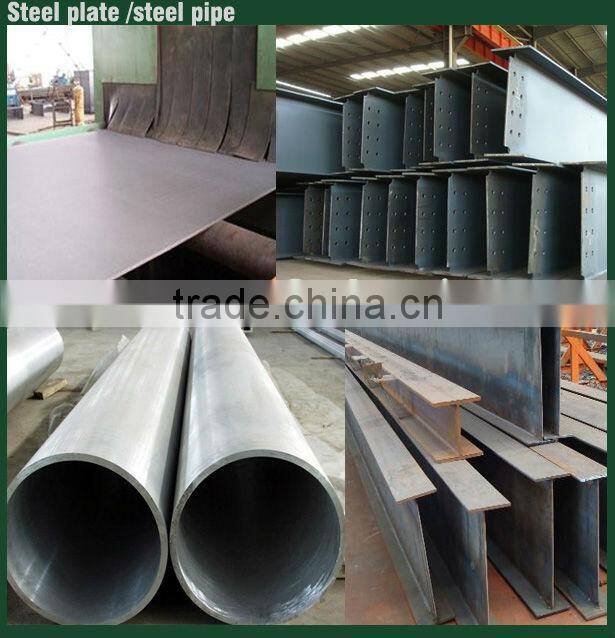

Specially designed for blasting steel plate, sectional steel, beams or structure.
Shot blasting machine for steel plate, section steel, beams, bars is designed and produced by adopting the advantages of similar products from both within the country and abroad.
The rusting cleaning part (shotblast cleaning) adopts high-efficient blast wheel and full shutter type shot sand separator.
The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method.
The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.
It is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.
Technical Specification:
Machine Model: QXY2500 steel plate shot blasting machine, painting booth, drying room
1. Width of steel: 2500 mm
2. Inlet opening: 2500 * 600mm
3. Length of steel: 1200-12000 mm
4. Roller speed: 0.5-6 m/min
5. Thickness of plate: 3-60 mm
6. Quantity of turbine: 6 sets
7. Motor power of turbine: 22Kw * 6
8. Abrasive cleaning: rolling brush and blowing device
9. Dust collector: cartridge type dust collector
10. Power consumption: 470 Kw
Professional and experienced workers to load the machine into container and fasten it tightly.
Delivery Photos shared as below:
This machine installation time needs 25 to 35 days if all preparation work is done.
Our company will send two or three technicians (mechanical & electrical) to customer site help the installation and commissioning. Give free training to customer operators.
1. We offer one year time quality warranty for the machine we produced and sold.
2. Any broken parts(exculde easy wear parts) or machine failure, we supply free replacement or solutions.
3. Easy wear parts service life guarantee:
Blade--high chrome material, 500-600 hours
Distributor wheel--high chrome material, 1200 hours
Control cage--high chrome material, 1200 hours
Protective liner plate--high chrome material, 2000 hours.
Liner plate for blast chamber--Manganse steel casting, 7000-8000 hours.
