portable steel sand blasting machine
Our Service
Product Introduction

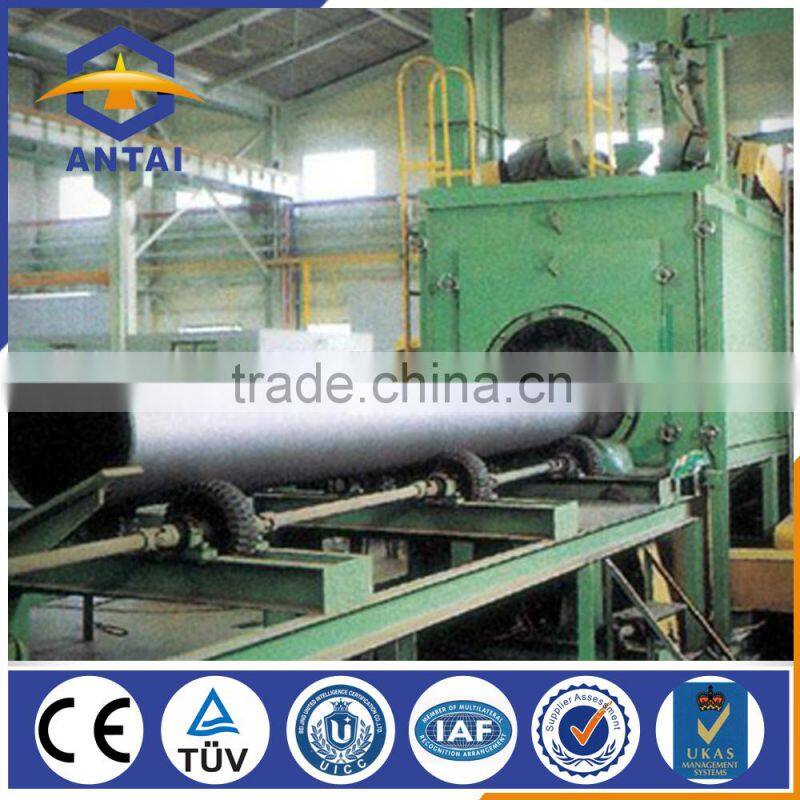

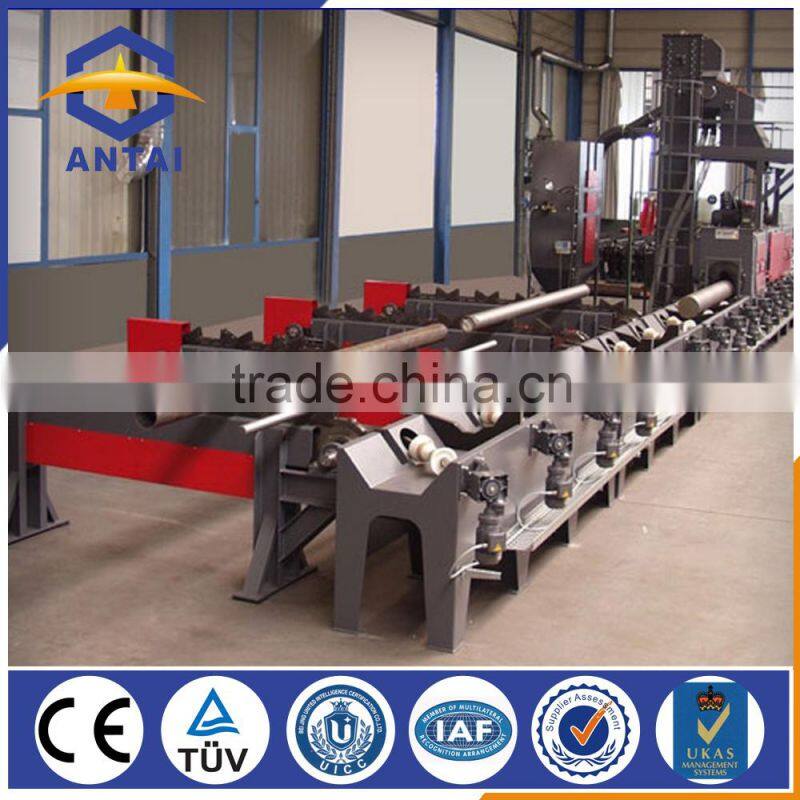

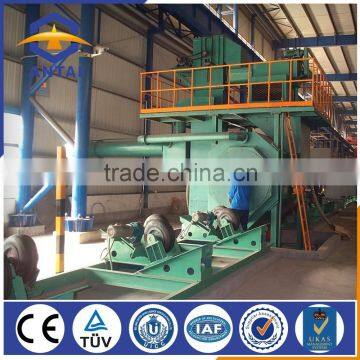

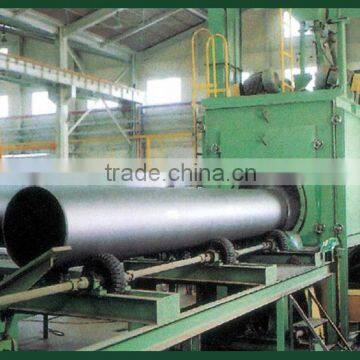

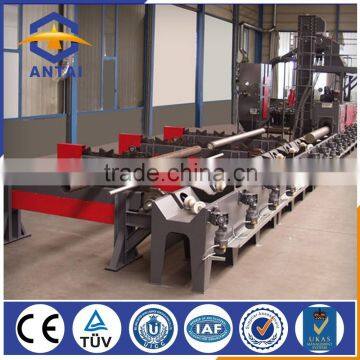

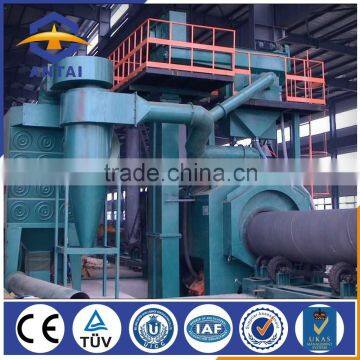

Steel pipe blasting machine is suitable for cleaning steel tube, pipe, round bar and steel bottles. It can remove surface scale, paint and welding slag, which is good for next step-coating.
Technique parameter
| No | Item | step moving type shot blasting machine | Continuous moving shot blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | |||
| 1 | Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| 4 | Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | Converter speed |
| 6 | Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | 2560 |
| 7 | Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimension of shot blasting machine | mm | 8450*5350*5003 | 12235*5410*9411 | 4500*5350*5003 | 18000*5960*6440 | 17700*9615*10000 |
Features
1.This machine use high speed cantilever centrifugal type turbine blast wheels. Curve blades blast wheel has more blasting force to process steel products.
2. Material of blades, abrasive distributor, and control cage is high chrome, which can be used over 500 hours. Another option is Taiwan made special material blades, which has 1000-1500 hours lifetime.

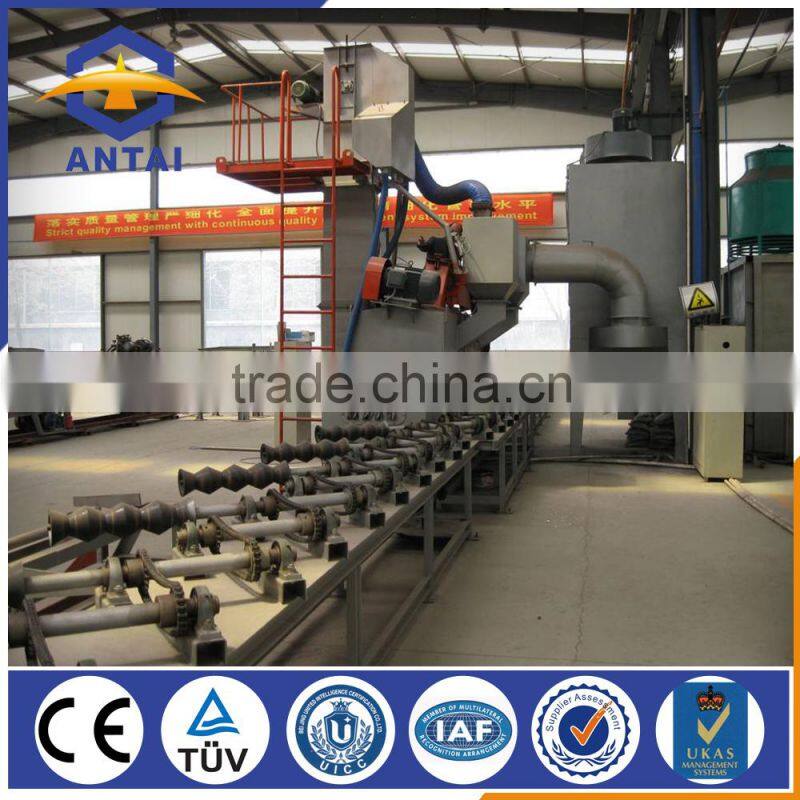

3. V shape roller is controlled by frequency converter, which can adjust moving speed to fit for different blasting purpose.

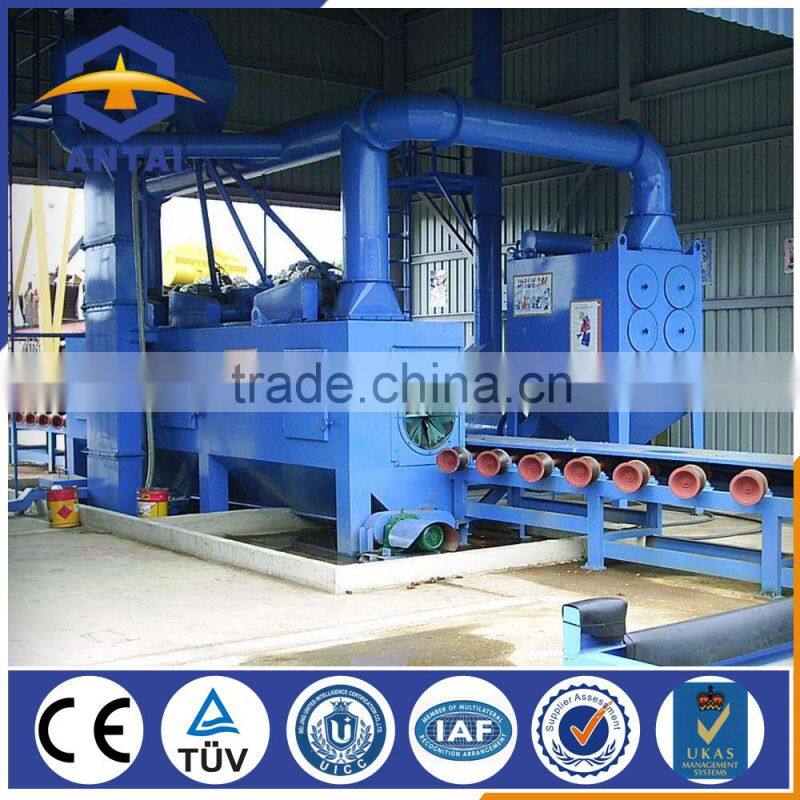

4. Full shutter type air wash separator has three steps separating, which effectively separate dust and abrasive. It is good for abrasive recycle, improve cleaning effect and protect the machine.
5. Pulse jet bag type dust collector, dust remove efficiency is over 99%. Good for environmental protection. Cartridge type dust collector is optional.
6. Safety protection, electrical interlock, failure self detection and alarming function. Full range of automatic control.
7. ABB motor, SEW gear box, SKF/NSK bearings, SIEMENS/Mitsubishi PLC, Mitsubishi/SIEMENS touch screen, Schneider electric components are optional selection
NOTICE:
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the following details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
4.Do you have special requirement for motor, reducer, electric components or pneumatic components, please?
Spare parts
Product Pictures
1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )
2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.
3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time.
FAQ
1. Which industry is mainly used in?
It is suitable for processing large batches middle-and small-sized work pieces.
2. What are the characteristics of the machine?
This series has three types: continuous mix, step-by step and accumulating roller conveyor. The workpieces, along with the pendent chain, move continuously or step by step, or by accumulating roller conveyor transportating. they can stop at given position and shot blasting room. It is very easy and exact to finish the static loading/unloading and shot blasting works. the single hook can load capacity of 50-2000kg, accumulating roller chains has unique advantages:high efficiency and reliable operation.
3. What is it combined of?
It is composed of shot blasting machine, wear-resisting rubber band, twisted dragon, ascending, separator, incoming material conveying, dust removal machine, cleaning machine combination.
4. How many days do you need to produce this machine?
| Qingdao Antai Heavy Industry Machinery Co.,LTD. | ||||
| 1. Founded in 2003, 10 years experience for making shot blasting machine. | ||||
| 2. A group company, having real estate, machinery and leather bags industry. | ||||
| 3. Eight experienced engineers to consider every possibility for customers. | ||||
| 4. Three of them has over 25 years knowledge of shot blasting technology. | ||||
| 5. 3D software for auxiliary design, Show every design details in front of you. | ||||
| 6. Experienced technicians for production, installation, commissioning & service. | ||||
| 7. ISO 9001:2008 certified company, CE certificate will be issued soon. | ||||
| 8. All machining parts out sourced from professional CNC machining company | ||||
| with strict quality control procedure. | ||||
| 9.Own foundry to produce special material spare parts for our machines. |
