High Efficiency Pit Type Metal Hardening Furnace

High Efficiency Pit Type Metal Hardening Furnace thumbnail-1
High Efficiency Pit Type Metal Hardening Furnace thumbnail-2
High Efficiency Pit Type Metal Hardening Furnace thumbnail-3
High Efficiency Pit Type Metal Hardening Furnace thumbnail-4
High Efficiency Pit Type Metal Hardening Furnace thumbnail-5
High Efficiency Pit Type Metal Hardening Furnace thumbnail-6
High Efficiency Pit Type Metal Hardening Furnace photo-1

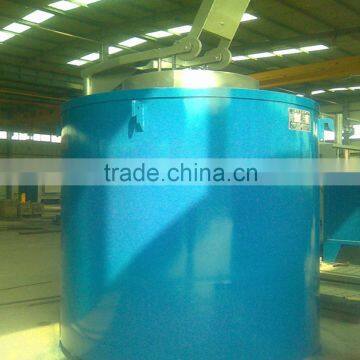

High Efficiency Pit Type Metal Hardening Furnace photo-2
High Efficiency Pit Type Metal Hardening Furnace photo-3
High Efficiency Pit Type Metal Hardening Furnace photo-4
High Efficiency Pit Type Metal Hardening Furnace photo-5
High Efficiency Pit Type Metal Hardening Furnace photo-6
US$ 3,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Resistance Furnace
Usage:
Heat Treatment Furnace
Contact Supplier Request Quote Chat Now
Xinxiang Zhongli Furnace Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Resistance Furnace
Usage Heat Treatment Furnace
Place of Origin Henan, China
Brand Name ZHONGLI
Model Number RQ3
Voltage 380V,also can provide as user's needs.
Power(W) 20-288kw
Dimension(L*W*H) Diameter:950mm; Depth:1400mm
Weight 1700-8000kg
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided No overseas service provided

High efficiency metal hardening furnace

Brief

RQ3 series pit type metal hardening furnace is new type and energy-saving batch type furnace,working temperature is 950℃,using the following heat treatment,carburizing, nitriding and carbonitriding, the workpiece is vertically loaded in furnace tank for heating,not easy to deformation. Pit type furnace is usually placed under the ground plane in the workshop, also is placed above the ground plane, or ground level fluctuation in each half.



Application field

This pit type metal hardening furnace is mainly used for rod and long axis steel mechanical parts.



Structure

This pit type metal hardening furnace is composed of furnace shell, furnace lining, heating device, muffle tank, loading frame, the furnace cover, and furnace cover lifting mechanism.,etc. Furnace body is cylindrical deep well.



Advantages

1.The workpiece is vertically loaded in furnace tank for heating,not easy to deformation;

2.Good sealing, easy operation and maintain, long working service life.

3.Using advanced protective atmosphere control system, including carbon control instrument and oxygen probe, ensure that the workpiece carbonitriding layer uniform and high precision.



Main technical parameters

Model

RQ3-25-9

RQ3-35-9

RQ3-60-9

RQ3-60-12

RQ3-75-9

RQ3-90-9

RQ3-105-9

RQ3-150-9

RQ3-180-9

RQ3-220-9

RQ3-288-9

Rated power(KW)

25

35

60

60

75

90

105

150

180

220

288

Rated voltage(V)

380

380

380

380

380

380

380

380

380

380

380

Max temperature(℃)

950

950

950

950

950

950

950

950

950

950

950

Working temperature(℃)

0-940

0-940

0-940

0-940

0-940

0-940

0-940

0-940

0-940

0-940

0-940

Phase

3

3

3

3

3

3

3

3

3

3

3

Charging size

(mm)

Diameter

Φ300

Φ300

Φ450

Φ450

Φ450

Φ600

Φ600

Φ600

Φ800

Φ800

Φ800

Depth

450

600

600

600

900

900

1200

1800

1500

1800

2500

Muffle tank size

(mm)

Diameter

Φ450

Φ450

Φ630

Φ630

Φ630

Φ780

Φ780

Φ780

Φ980

Φ980

Φ980

Depth

938

1125

1144

1144

1450

1490

1800

2400

2100

2400

3100

Furnace hearth size(mm)

Diameter

Φ590

Φ590

Φ770

Φ770

Φ770

Φ920

Φ920

Φ920

Φ1120

Φ1120

Φ1120

Depth

958

1150

1164

1480

1480

1520

1830

2430

2130

2450

3130

Heating zone qty

1

1

2

2

2

2

2

2

2

2

3

Heating elements connection

Y

Y

YY

YY

YY

YY

YY

YY

YY

YY

YYY

No-load heating up time(h)

≤2.5

≤ 2.5

≤ 3

≤3

≤3

≤3

≤3.5

≤3.5

≤3.5

≤3.5

≤4

No-load power losses(KW)

≤7

≤8

≤11

≤16

≤14

≤16

≤18

≤28

≤29

≤34

≤41

Temperature control precision(℃)

±1

±1

±1

±1

±1

±1

±1

±1

±1

±1

±1

Max loading capacity(kg)

50

100

150

150

220

400

500

800

1500

2000

3000

Weight(kg)

1700

1850

2650

2950

3200

3700

4500

5000

5500

6000

5500

Note: Various size pit type metal hardenig furnace can be designed and manufactured as user's needs.
