Monel Wire Conductive Shielding Seal /Wire Mesh Shielding Liner/seal Strip/Electromagnetic Shielding Sealing Strip

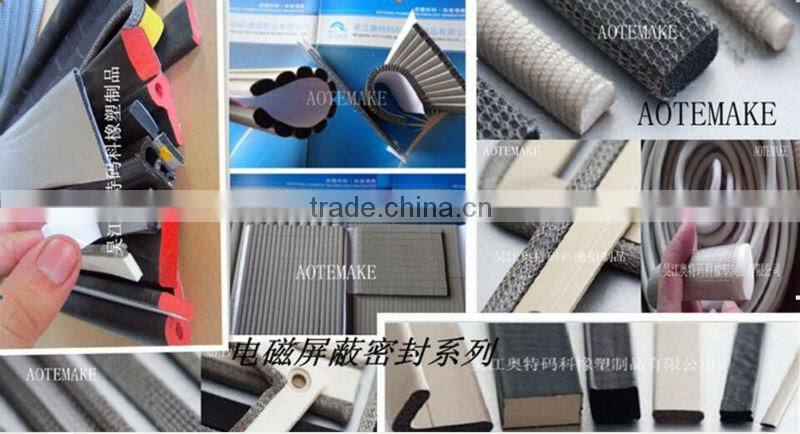

Monel Wire Conductive Shielding Seal /Wire Mesh Shielding Liner/seal Strip/Electromagnetic Shielding Sealing Strip photo-1
US$ 4.8 - 6 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
AOKE
Model Number:
AOKE-00017
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name AOKE
Model Number AOKE-00017

Specifications

Monel wire Conductive shielding seal /Wire mesh shielding liner/seal strip/Electromagnetic shielding sealing strip

Monel wire Conductive shielding seal



Monel wire Conductive shielding seal knitted wire mesh gaskets provide an excellent cost effective EMI gasket, providing shielding in the magnetic as well as electric fields. Kemtron knit in four wire types, Monel, Stainless steel, aluminium and tin plated copper clad steel. Knitted mesh gaskets can be supplied as solid mesh or knitted over elastomeric cores with or without environmental seal in continuous lengths or fabricated to custom designs.

This product consists of a knitted wire mesh tape that is formed into a solid profile that is then over knitted making a continuous gasket strip. The conductive metallic knitted wire is flexible and compressible which makes an excellent RFI/EMI/EMP gasket.

Performance

Frequency  field    Monel          Aluminiu     Tin         Stainless

10 KHz    H         45          40          60           40

100 KHz   H         49          45          65           44

1 MHz     H         60          60          85           58

1 MHz     E         125         125         125          125

10 MHz    E         120         120         120          120

100 MHz   E         100         100         108          100

400 MHz   P         98          95          99           94

1 GHz     P         85          76          78           76

10 GHz    P         80          65          62           60

Monel wire Conductive shielding seal /Wire mesh shielding liner/seal strip/Electromagnetic shielding sealing stripMonel wire Conductive shielding seal /Wire mesh shielding liner/seal strip/Electromagnetic shielding sealing strip
