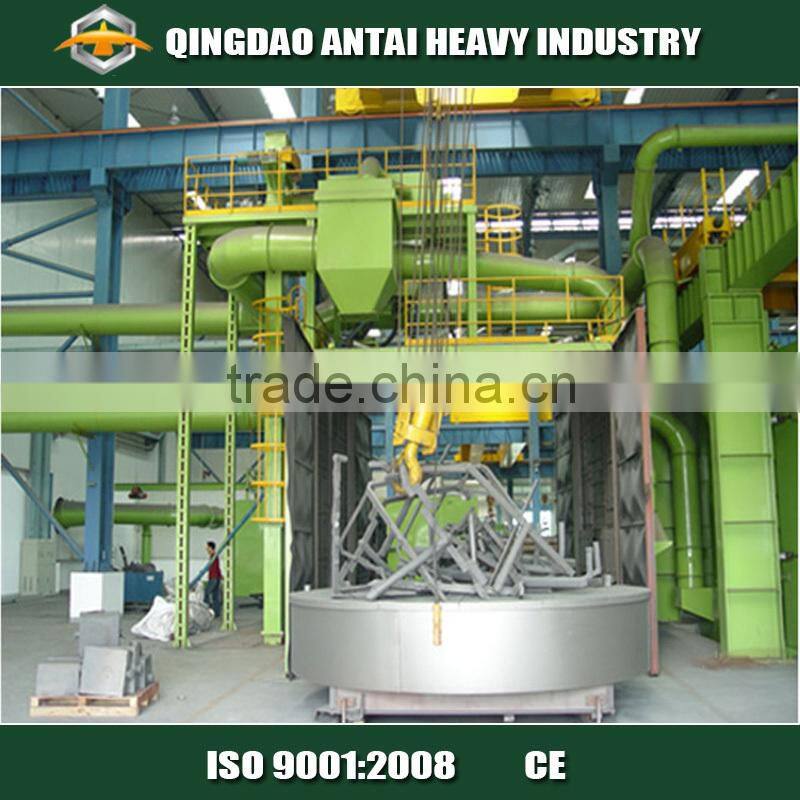

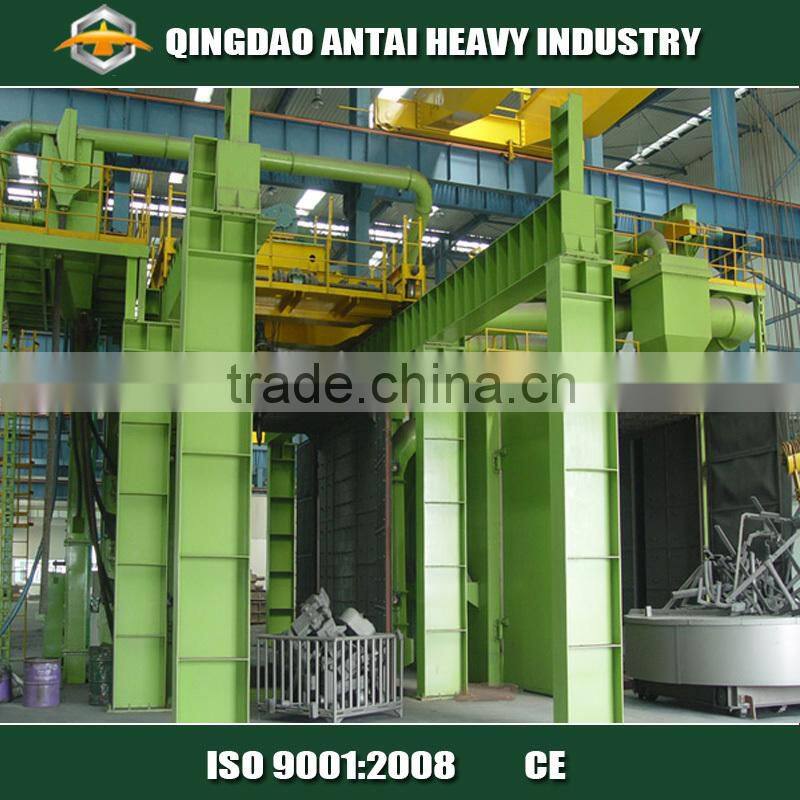

Trolley Table Blasting Machine For Cleaning
Trolley Table Blasting Machine For Cleaning Summary
Trolley Table Blasting Machine For Cleaning mainly used in cleaning and strengthening the surface of the castings,and used in removing oxide and welding dregs.
Trolley Table Blasting Machine For Cleaning Feature
1.Suitable for casting,forging,machinery,iron and steel industry etc.
2.Cleaning fast
3.PLC control system
4.3D disign and plasma cutting
5.Chamber liner by olling Mn13 steel,at least 3~5 years
Trolley Table Blasting Machine For Cleaning Technical Parameter
| No. | Model Item |
Q765C | Q7610 | Q7620 | Q7630 | Q7640 | Q7650 | Q7660 | Q76120 | |
| 1 | Size of workpiece | mm |
Φ2000 *730 |
Φ2500* 860 |
Φ2500* 1100 |
Φ3700* 980 |
Φ4000* 1120 |
Φ4850* 1280 |
Φ5000* 1280 |
Φ7000* 1500 |
| 2 | Load capacity | kg | 5000 | 10000 | 20000 | 30000 | 40000 | 50000 | 60000 | 120000 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 4*250 | 5*250 | 6*250 | 6*250 | 7*250 | 10*250 |
| 4 | Air pressure | Mpa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| 5 | Air consumption | M3/m | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| 6 | Elevating amount | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | 150 |
| 7 | Separating amount | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | 150 |
| 8 | Ventilation capacity | M3/h | 16000 | 20000 | 25000 | 30000 | 35000 | 35000 | 40000 | 60000 |
| 9 | Power(no dust collector) | kw | 54 | 72 | 91 | 115 | 148 | 162 | 188 | 280 |
| 10 | Outline dimension |
mm |
9000* 5200* 9290 |
14900* 5500 *8100 |
16900* 6540 *10028 |
9168* 7680 *10874 |
15000* 8200 *11000 |
15800* 8600 *11960 |
16800* 8670 *11800 |
26000* 15000 *11000 |
Product Detail
Qingdao Antai Heavy Industry Machinery CO., LTD was founded in 2003, is located in the convenient transportation and beautiful scenery Huangdao.
1.Company mainly produces shot blasting machine, shot blasting cleaning equipment and sand producting machine, molding machine, environment dedusting machine and so on more than 30 kinds of products.
2.Eight experienced engineers to consider every possibility for customers.
3.Three of them has over 25 years knowledge of shot blasting technology.
4.3D software for auxiliary design. Show every design details in front of you.
5.Experienced technicians for production, installation, commissioning & service.
6.Successfully passed the quality management system certification ISO9001: 2000 and CE.
7.All machining parts out sourced from professional CNC machining company with strict quality control procedure.
8.Own foundry to produce special material spare parts for our machines.
Customers Visits Our Company
1.How many days do you need to produce this machine?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion,it needs about 45 to 50 days.
1.What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
2.What’s your machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3.Are you able to give installation and commissioning overseas?How long will it take?
Yes,we supply overseas service,but customer needs to pay for the engineers flight tickets and hotel,
food.
Small machine usually takes within 5 days.
Big machine usually takes about 20 days.
4.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency.
ANTAI is ALIBABA’s golden supplier with BV&TUV assessment.
You can check with ALIBABA,we have never got ant complaint from our customers.
