Double Hook Shot Blasting Machine,shot Blaster

Name: Double Hook Shot Blasting Machine,shot Blaster
Brand: ANTAI
SKU: 110447441
Availability: InStock

US$ 6,000 - 16,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ANTAI

Qingdao Antai Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name ANTAI

Model Number HHH-36

Feature Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor

Fuel Electric

Certification CE, Other, CE, iso9001:2000

Use Burnishing, Container / Bottle Cleaning, Degreasing, Descaling / Stripping

Cleaning Process Other, steel shot

Cleaning Type Manual

Industry Used Electronic Industry

Material Metal / Coil

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Lifting hook type shot blasting machinery
2.High shot blasting rate an cleaning rate
3.Rust cleaning

Features:

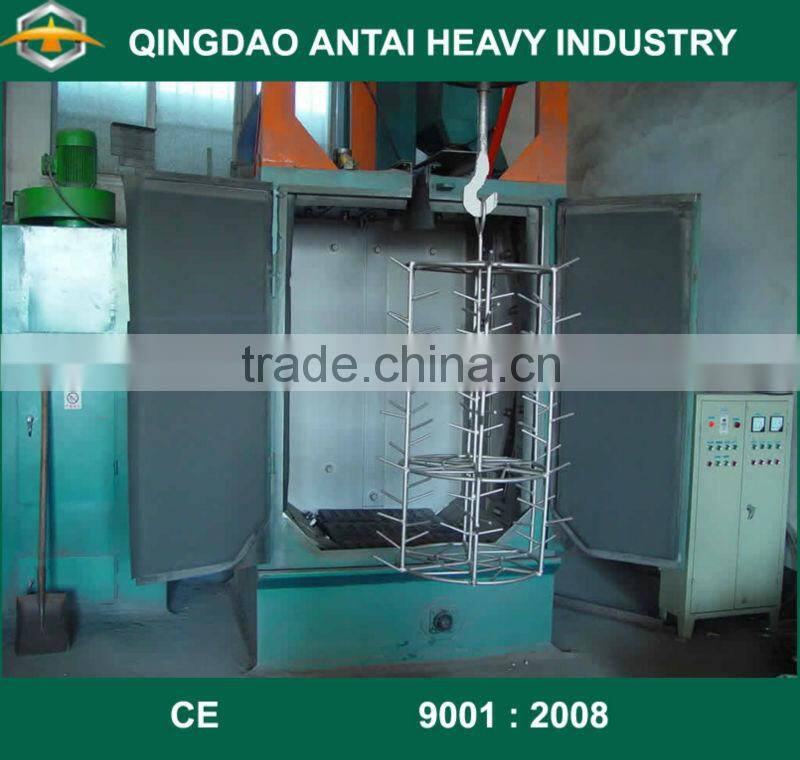

This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
No special request for the workpiece structure. Can be used for different kinds of workpieces.
Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
Can be equipped as a part of a processing line.

Technical parameters:

Item	Unit	Q376	Q376B	Q378c	Q3710	Q3720	Q3730	Q3750	Q37100
Maximum weight of cleaning	Kg	500	600	800	1000	2000	3000	5000	10000
Abrasive flow rate	Kg/min	2*200	2*200	2*250	2*250	3*250	3*250	4*250	5*250
Ventilation capacity	m³/h	5000	5000	5000	5000	9000	11000	14000	16000
Lifting amount of elevating conveyor	T/H	24	24	30	30	45	45	60	75
Separating amount of separator	T/H	24	24	30	30	45	45	60	75
Max overall dimensions of suspender	mm	Ø600 *1200	Ø700 *1200	Ø1000 *1600	Ø1200 *1800	Ø1400 *2200	Ø1600 *2300	Ø1800 *2500	Ø3000 *3000
