Specifications
1.Design based on requirments2.Double or single hook
3.Prompt delivery
4.High quality and competitive price

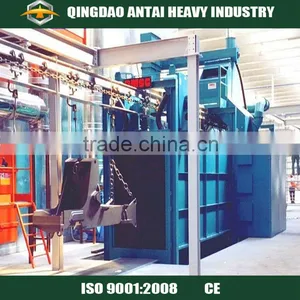

Name: Q37 series Hook type shot blasting machine
QingdaoAntai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
Special Features:
- Suitable for removing oxidized surface, rust and other matters on steel structure parts,castings,aluminum alloy parts and other spare parts to gain bright metal surface
- Can improve technique characteristics of surface steel structure parts, enhance resistance to rot, promote quality of products and decrease labor force and pollution in work site
- Widely used in foundry,forging,mechanical and steel industry.
Technical Specification:
Model: Q378
1. Size of parts: Φ800*1500 mm
2. Load capacity of one hook: 1000 Kg
3. Quantity of blast wheel: two
4. Turbine motor power: 11 Kw * 2
5. Door opening: manually or pneumatically controlled
6. Digital control panel
7. Overhead rail: "I" shape or "Y" shape
8. Dust collector: bag type dust collector
9. Installation power: 32.5 Kw
| Unit | Q376 | Q378 | QD3710 | Q3720 | |
| Size of workpiece | mm | Ø600*1100 | Ø800*1500 | Ø900*1600 | Ø1400*2300 |
|
Carrying weight of single hook |
kg | 500 | 1000 | 1000 | 2000 |
| Capacity of shot-blasting | kg/min | 2*120 | 2*200 | 2*250 | 3*250 |
|
Lifting capacity of hoist |
t/h | 15 | 22 | 30 | 45 |
|
Sparating capacity of separetor |
t/h | 15 | 22 | 30 | 45 |
|
Ventilation capacity |
m3/h | 5000 | 8000 | 9000 | 15000 |
| Power(excluding dedusting) | Kw | 19 | 32.5 | 39.65 | 61.27 |
| Outline dimensions | mm | 4429*2850*3443 | 4325*2660*5009 | 5844*2742*5716 | 6110*3599*7842 |
Commercial terms for shot blasting machine:
1. MOQ: 1 set
2. Quality guarantee: 12 months from installation date
3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C

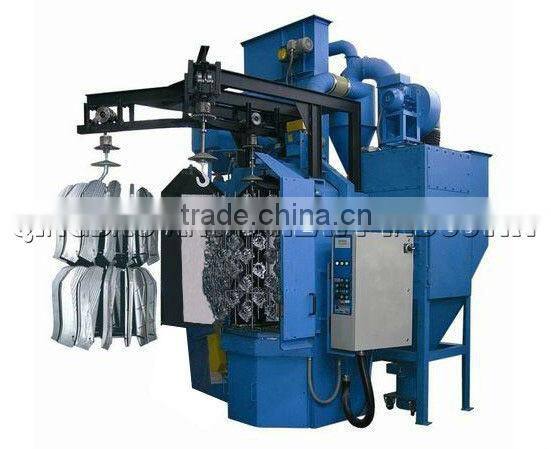

Product picture
More machinery based on differenent size is available.
Special design based on the requirements of client is available.
ABOUT US
Note: If anyone else says the same words as the above mentioned, it must be a FAKE !
For more items of Shot Blasting Machine and their details, please contact us
TODAY by e-mail. Thanks.
