Specifications
1.Lifting hook type shot blasting machinery2.High shot blasting rate an cleaning rate
3.Rust cleaning
Qingdao Antai Heavy Industry Machinery co.,ltd
10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

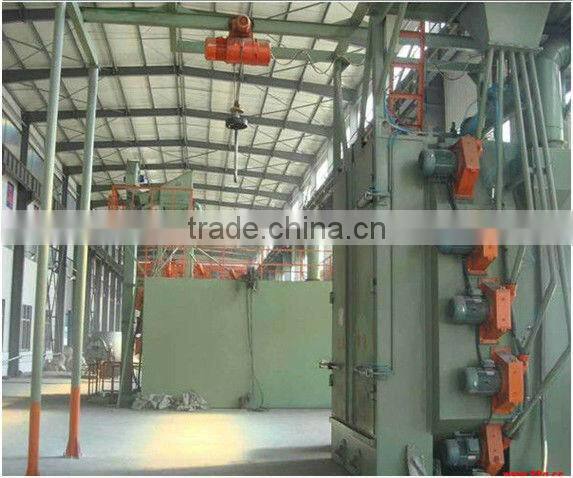

Hanger type shot blasting machine is widely used in foundry plant, forging plant, metal processing.
The monorail or Y track rail shot-blasting machines are the most versatile in terms of typical employment and size of the materials to be treated. Moreover the motorised hoists installed on the overhead conveyor allow the lifting of very high loads. The customer can choose the size and loading capacity of the machine according to the parts to be shot-blasted.

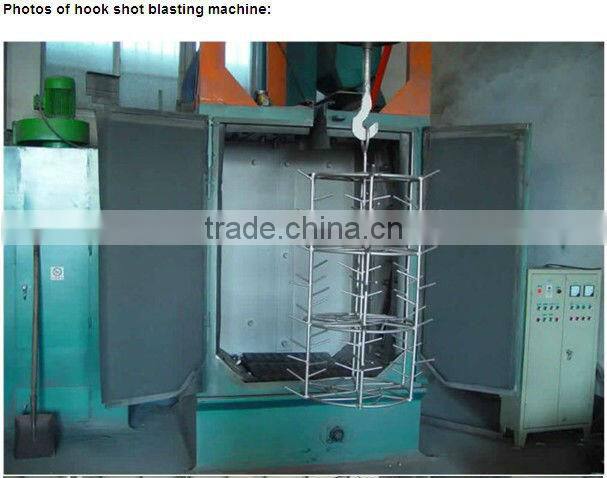

The materials are hanged on the hook, and this is manually or automatically transferred into the blasting room. Once in position, the hook starts to rotate on its axis and move back and forward in front of the turbines (mounted on one side of the machine). These combined movements ensure the complete shot-blasting of the parts external surface.
Usually, this machine doesn't need a pit. The shot-blasting unit is supplied complete with a bag type dust collector.
Technical Specification:
Model: Q378
1. Size of parts: Φ800*1500 mm
2. Load capacity of one hook: 1000 Kg
3. Quantity of blast wheel: two
4. Turbine motor power: 11 Kw * 2
5. Door opening: manually or pneumatically controlled

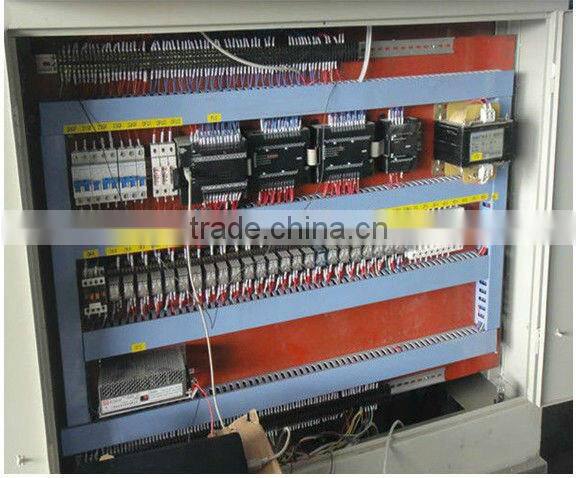

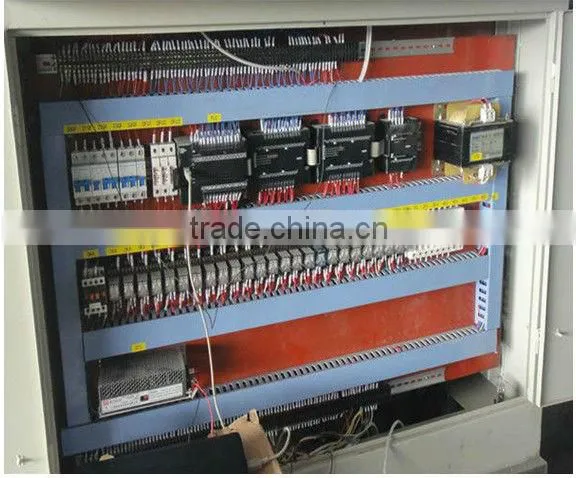

6. Digital control panel
7. Overhead rail: "I" shape or "Y" shape
8. Dust collector: bag type dust collector
9. Installation power: 32.5 Kw
Technique parameter:
| Type | Size of workpiece cleaned | Carrying weight of single hook | Capacity of shot- blasting | Lifting capacity of hoist | Separating capacity of separator | Ventilation capacity | Power(excluding dedusting) | Outline dimensions |
| mm | kg | kg/min | t/h | t/h | m3/h | kw | mm | |
| Q376 | Ø600*1100 | 500 | 2*120 | 15 | 15 | 5000 | 19 | 4429*2825*3443 |
| Q378 | Ø800*1500 | 1000 | 2*1200 | 22 | 22 | 8000 | 32.5 | 4325*2660*5009 |
| Q3710 | Ø900*1600 | 1000 | 2*250 | 30 | 30 | 9000 | 36.55 | 5047*3850*5156 |
| QD3710 | Ø900*1600 | 1000 | 2*250 | 30 | 30 | 9000 | 39.65 | 5844*2742*5716 |
| Q3720 | Ø1400*2300 | 2000 | 3*250 | 45 | 45 | 15000 | 61.27 | 6110*3599*7842 |
| Q3730 | Ø1600*2500 | 3000 | 3*250 | 45 | 45 | 15000 | 64.4 | 7085*4650*8652 |
| Q3750 | Ø1800*2500 | 5000 | 4*250 | 60 | 60 | 18000 | 78.4 | 7062*5460*8652 |
| Q3780 | Ø2000*3000 | 8000 | 4*250 | 60 | 60 | 20000 | 81.5 | 8050*6400*8526 |
Hanger spinner hook shot blasting machine Technical parameters
Item |
Unit |
Q376 |
Q376B |
Q378C |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
Q37100 |
Maximum weight of cleaning |
Kg |
500 |
600 |
800 |
1000 |
2000 |
3000 |
5000 |
10000 |
Abrasive flow rate |
Kg/min |
2*200 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
5*250 |
Ventilation capacity |
m3/h |
5000 |
5000 |
5000 |
5000 |
9000 |
11000 |
14000 |
16000 |
Lifting amount of elevating conveyor |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Separating amount of separator |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Max overall dimensions of suspender |
mm |
Ø600 *1200 |
Ø700 *1200 |
Ø1000 *1600 |
Ø1200 *1800 |
Ø1400 *2200 |
Ø1600 *2300 |
Ø1800 *2500 |
Ø3000 *3000 |
