Specifications
1.Lifting hook type shot blasting machinery2.High shot blasting rate an cleaning rate
3.Rust cleaning
Qingdao Antai Heavy Industry Machinery co.,ltd

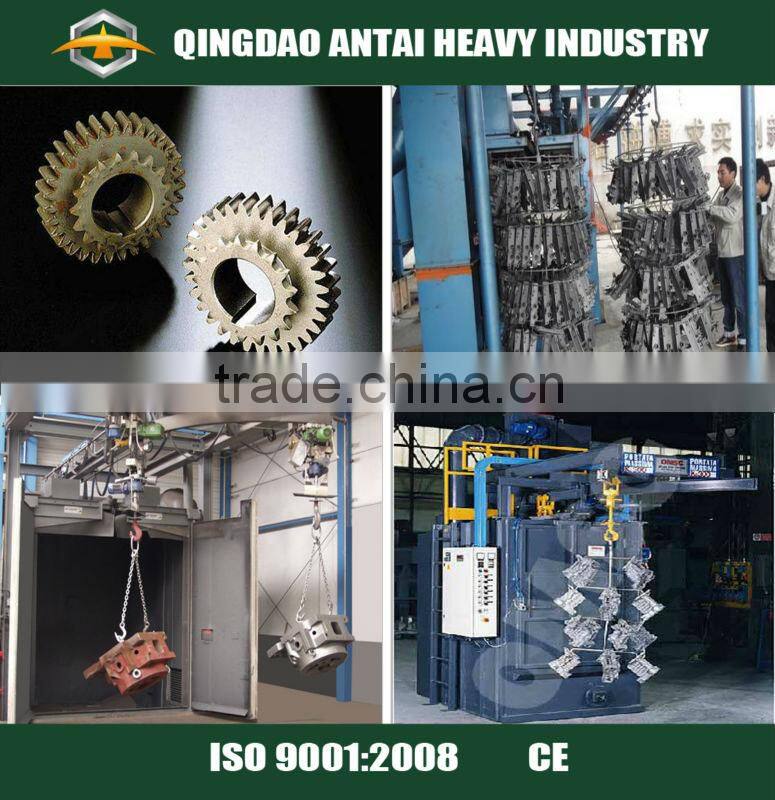

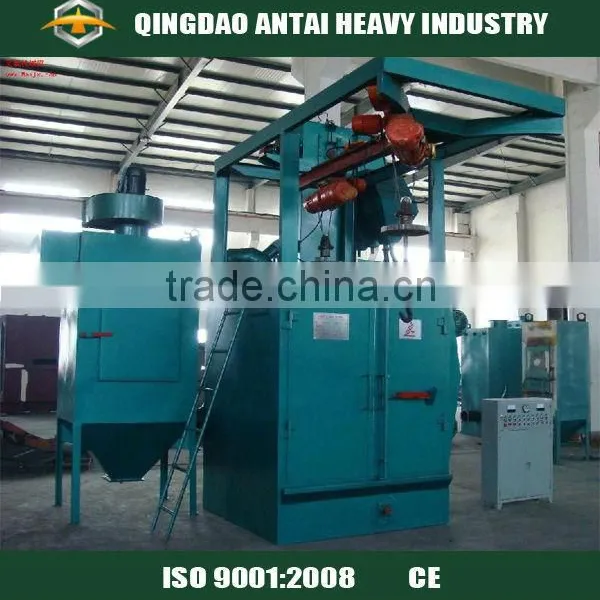

Hanger spinner hook shot blasting machine Particularly suited to:
1.Hanger spinner hook shot blasting machine suite to multiline varieties, small quantizes of castings, forgings and steel parts for surface cleaning and enhancement to remove the work piece surface of a small amount of viscous-sand, sand core and oxidative skin.
2.Hanger spinner hook shot blasting machine suited to heat treatment on the surface clean-up and enhancement. Right inappropriate collision slender, thin-walled parts cleaning.
3.Hanger spinner hook shot blasting machine applies equally to clean up parts special tooling will be disassembled into liquidation conducted peen, such as aluminum alloy wheels, round or square billet, bar, and the work piece to clean the work piece size adjustable section, the number and angle of peen layout through computer simulation, uniform cleaning effect.
Hanger spinner hook shot blasting machine Technical parameters:
Item |
Unit |
Q376 |
Q376B |
Q378C |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
Q37100 |
Maximum weight of cleaning |
Kg |
500 |
600 |
800 |
1000 |
2000 |
3000 |
5000 |
10000 |
Abrasive flow rate |
Kg/min |
2*200 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
5*250 |
Ventilation capacity |
m3/h |
5000 |
5000 |
5000 |
5000 |
9000 |
11000 |
14000 |
16000 |
Lifting amount of elevating conveyor |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Separating amount of separator |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Max overall dimensions of suspender |
|
|
|
|
|
|
|
|
|
If you are interested in this equipment, please don't hesitate to contact us!
If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
Before and after the workpiece cleaning(Compare the photos)
Certification:
Commercial terms for shot blasting machine:
1. MOQ: 1 set
2. Quality guarantee: 12 months from installation date
3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C
