Help CenterSurface Cleaning and Strengthening Single Hook Shot Blasting Machine
Related Products
-
Hanger Hook Shot Blasting Machine/ Cleaning MachineUS$ 6,800 - 70,000MOQ: 1 Set -
Hook Shot Blasting Machine/ Lifting Hook Shot Blasting MachineUS$ 6,800 - 50,000MOQ: 1 Set
-
Single or Double Hook Type Shot and Air Blast MachineUS$ 50,000 - 70,000MOQ: 1 Set
-
Qingdao Antai Hook Type Shot Blasting MachineUS$ 40,000 - 60,000MOQ: 1 Set
-
Polishing Machine/lifting Hook Shot Blasting Machine/derusting MachineUS$ 20,000 - 50,000MOQ: 1 Set
Specifications
1.special design2.highest quanlity
3.best price
4.shortest delivery
5.CE,ISO9001

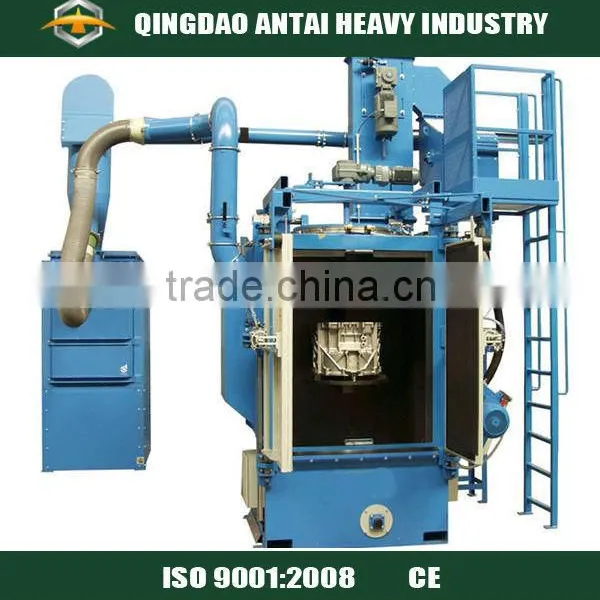

HQ37 series Hook Shot Blasting Machine can be used for light industrial machinery, construction machinery, engineering machinery, mining machinery, pressure vessels, automobiles, shipbuilding, construction, chemical, electrical, small and medium industries such as machine tool castings, steel pates, aluminum and other pates of the surface cleaning or strengthened, Hook Shot Blasting Machine used to enhance product quality and the appearance of parts of the surface state.
Hook Shot Blasting Machine Particularly suited to:
1.Hook Shot Blasting Machine suite to multiline varieties, small quantizes of castings, forgings and steel parts for surface cleaning and enhancement to remove the work piece surface of a small amount of viscous-sand, sand core and oxidative skin.
2.Hook Shot Blasting Machine suited to heat treatment on the surface clean-up and enhancement. Right inappropriate collision slender, thin-walled parts cleaning.
3.Hook Shot Blasting Machine applies equally to clean up parts special tooling will be disassembled into liquidation conducted peen, such as aluminum alloy wheels, round or square billet, bar, and the work piece to clean the work piece size adjustable section, the number and angle of peen layout through computer simulation, uniform cleaning effect.
Hook Shot Blasting Machine Technical parameters
Technology parameter of lifting hook shot blasting machinery | |||||
|
Type Item |
Q376 |
Q378 |
Q3710 |
Q3720 |
Q3750 |
Workpiece Dimensions(mm) |
φ600*1100 |
φ800*1500 |
φ900*1600 |
φ1400*2300 |
φ1800*2500 |
Each hook capacity (kg) |
600 |
1000 |
1000 |
2000 |
5000 |
Shot blasting rate (kg/m) |
2*120 |
2*180 |
2*250 |
3*250 |
4*250 |
Lifting capacity (t/h) |
15 |
22 |
30 |
45 |
60 |
Fractional dose (t/h) |
15 |
22 |
30 |
45 |
60 |
Blast volumeof Dust Elimination (m3/h) |
5000 |
8000 |
9000 |
15000 |
18000 |
If you are interested in this equipment, please don't hesitate to contact us!
If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
4: Before and after the workpiece cleaning(Compare the photos)
5: Certification:
6: Commercial terms for shot blasting machine:
1. MOQ: 1 set
2. Quality guarantee: 12 months from installation date
3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C
