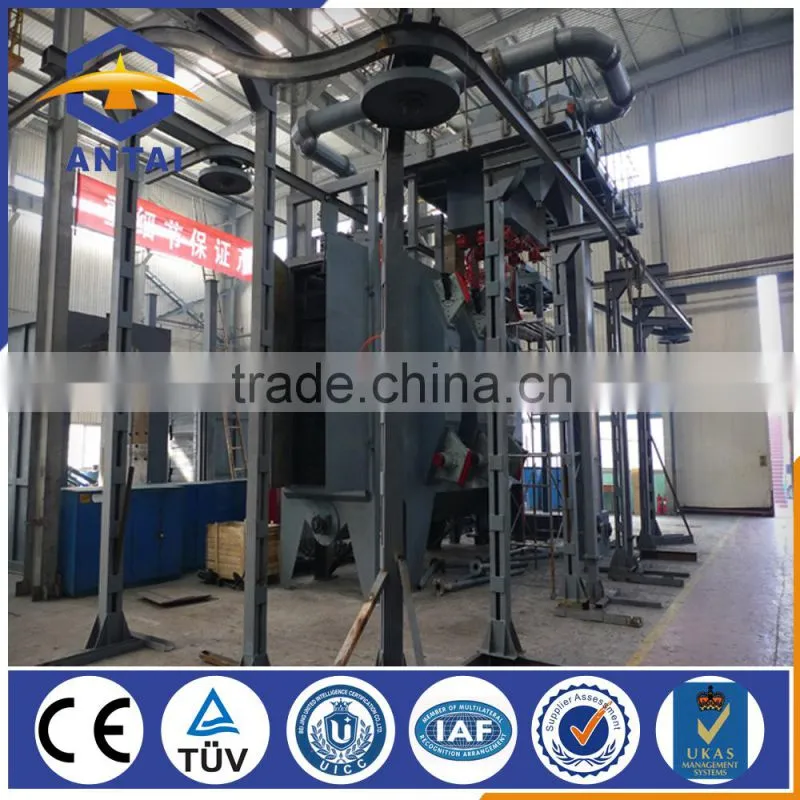

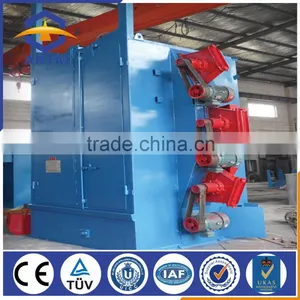

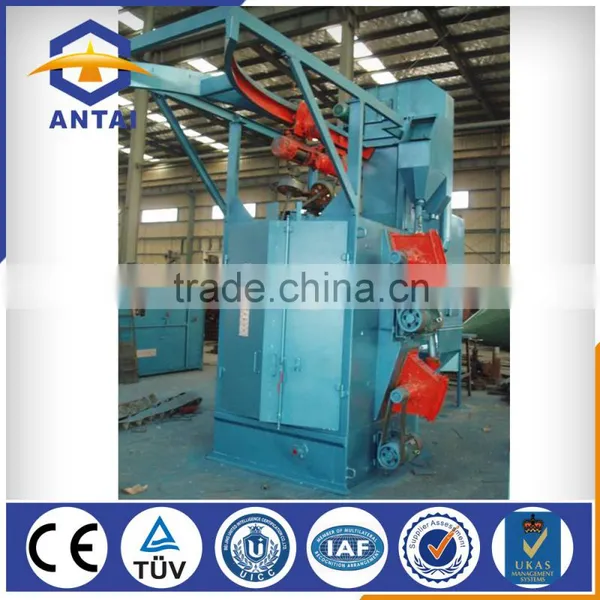

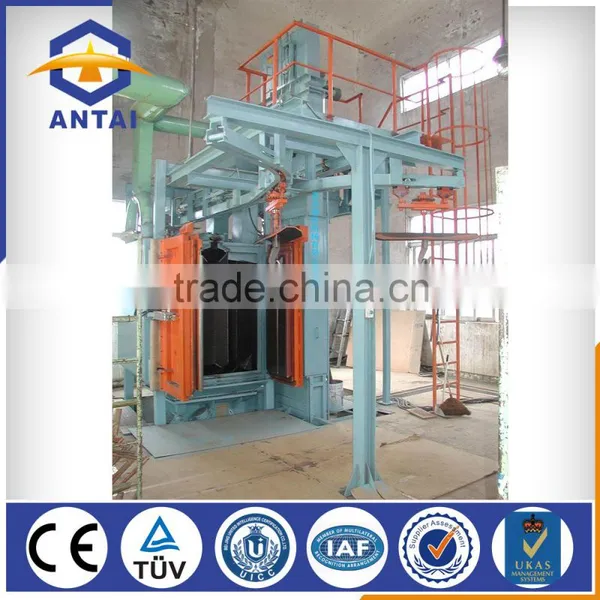

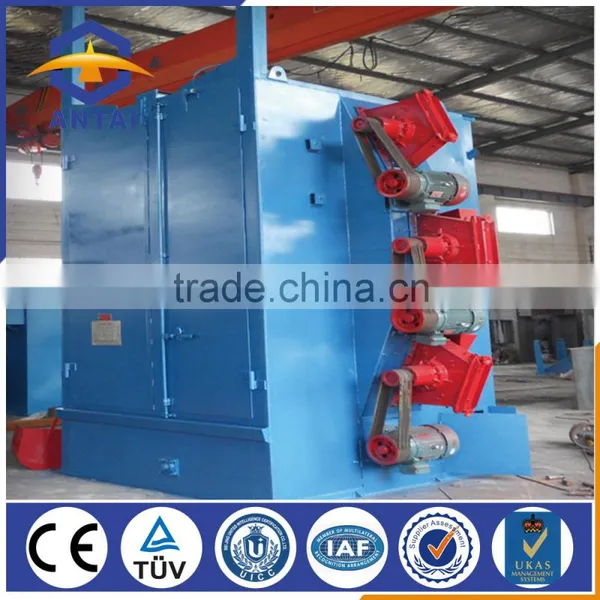

surface cleaning hook type Shot Blasting Machine

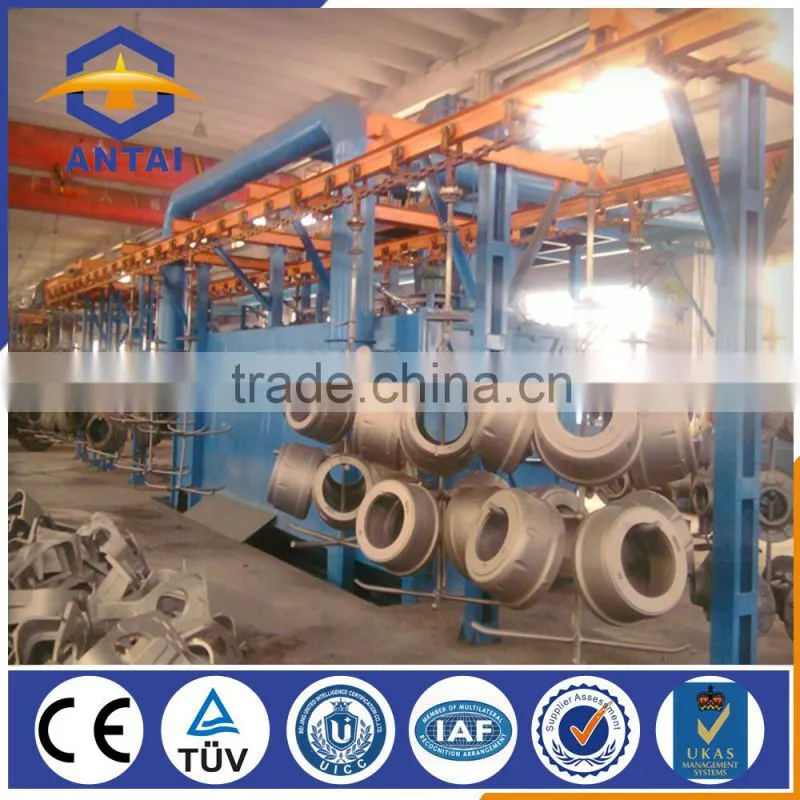

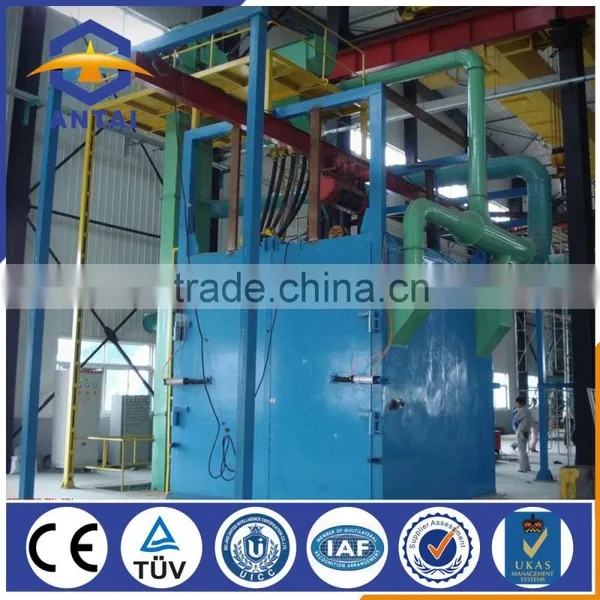

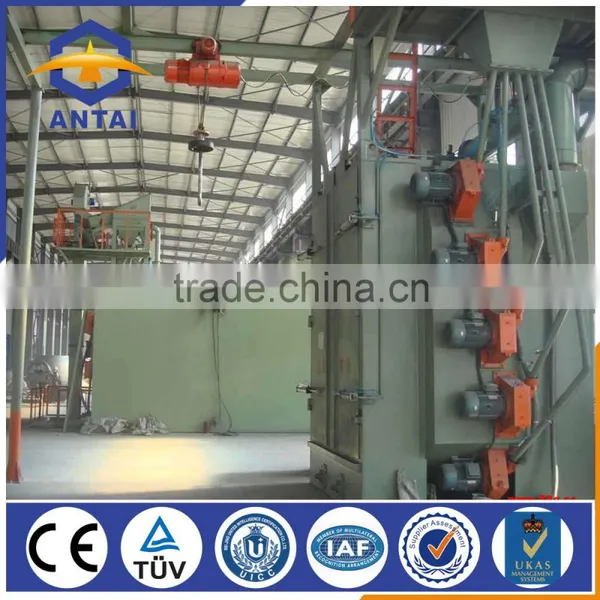

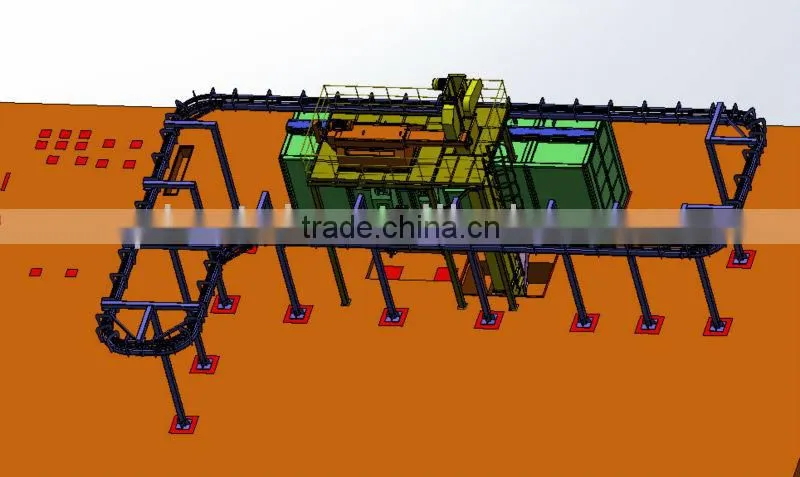

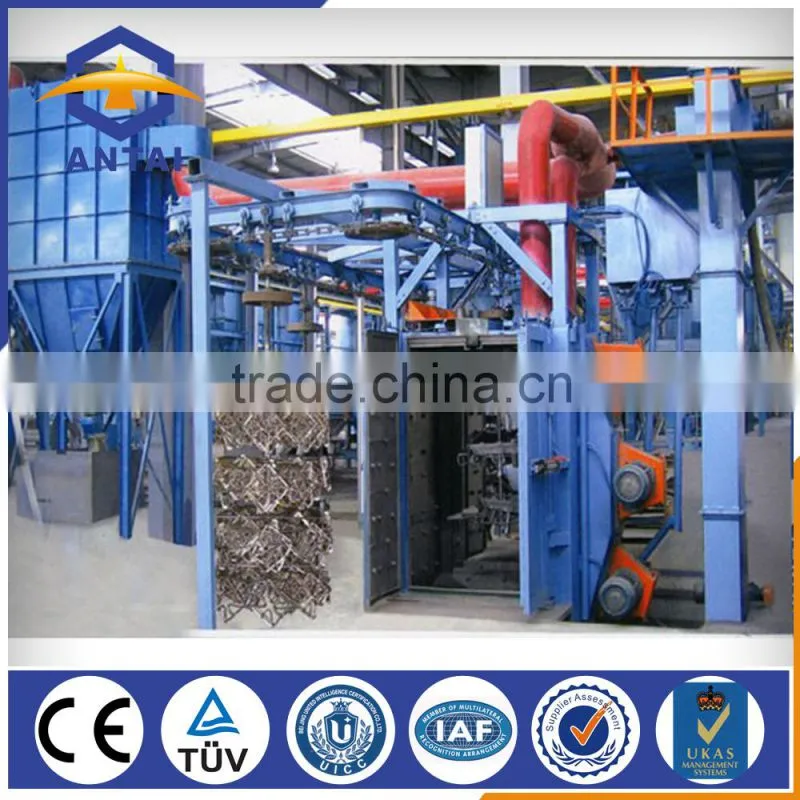

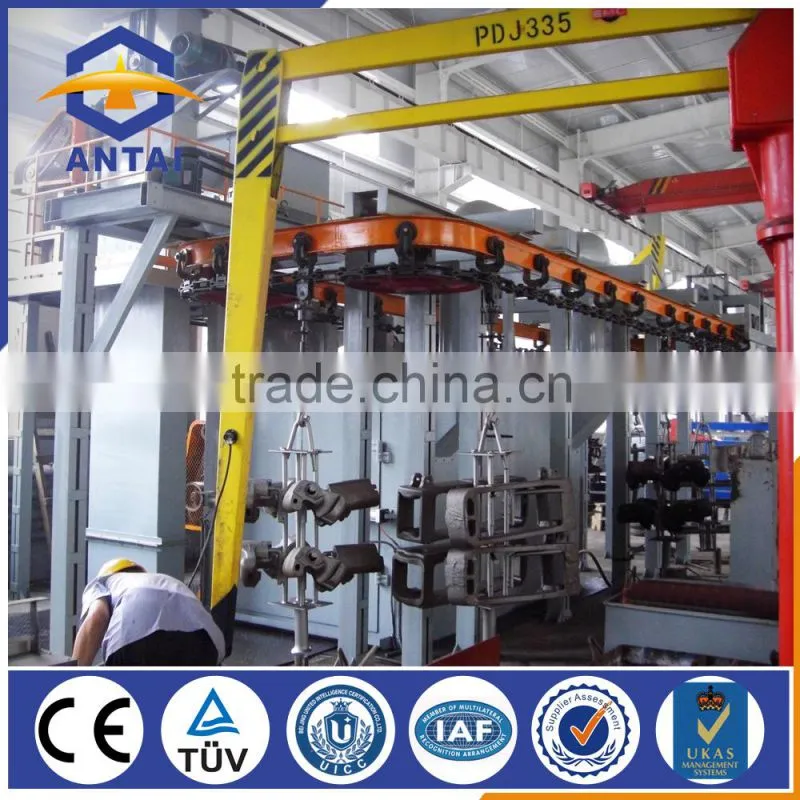

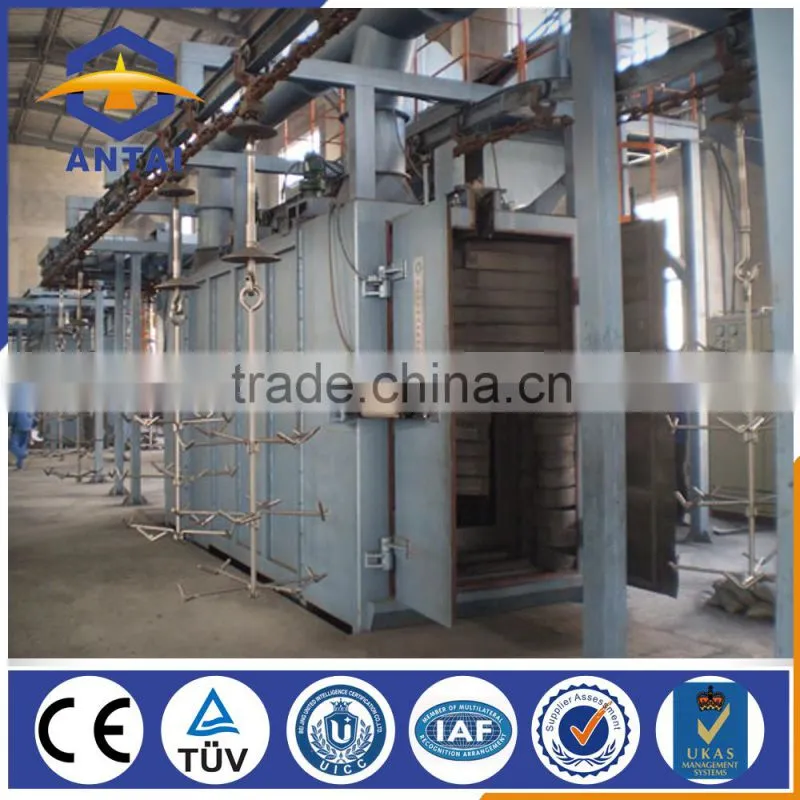

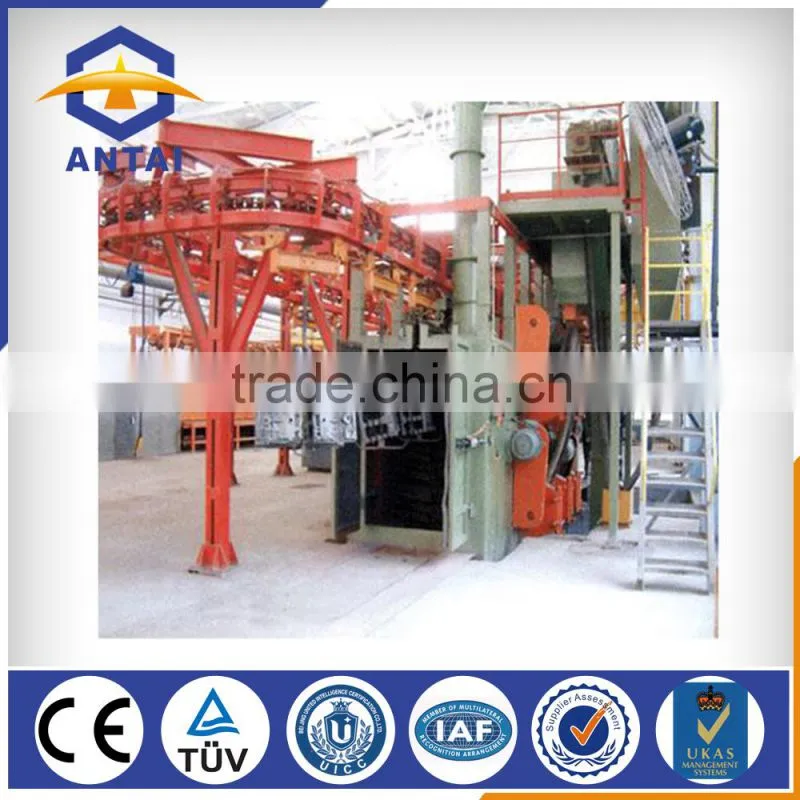

QAT483 monorail shot blasting machine is a specially designed machine for cleaning aluminum alloy parts. Operators load the work piece in front of the pneumatic door, and the hook conveyor transport workpiece into blasting chamber. The rotation mechanism makes the hook rotate in the blasting chamber.
The hook can also move back and forth in the chamber.Two sets of blast turbines will give thorough blasting to workpiece. After blasting, the hook conveyor transports the hook out of the chamber from the other pneumatic door and moves to next step. It is a continuous work process, and can be connected the whole production line or used separately.
| Item | step moving type shot blasting machine | Continuous moving shot blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | ||
| Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | Converter speed |
| Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | 2560 |

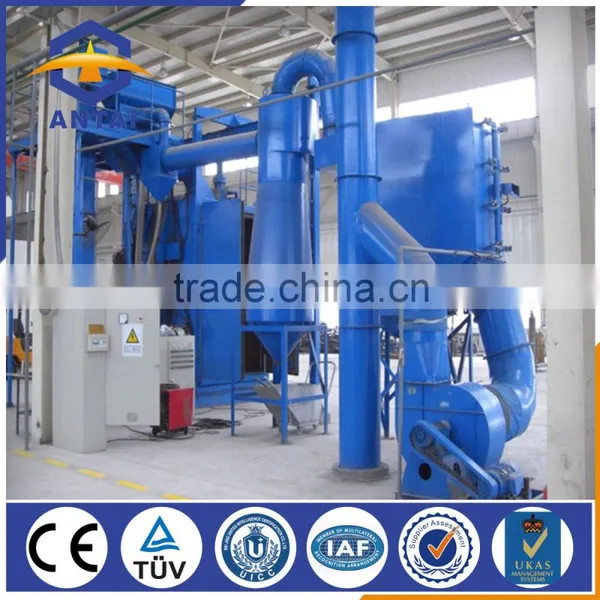

| Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| Outline dimension of shot blasting machine | mm | 8450*5350*5003 | 12235*5410*9411 | 4500*5350*5003 | 18000*5960*6440 |
17700*9615*10000 |
This is the parameters of our standard products,machines can be individually designed according to customer's requirements. | ||||||
A. Casting surface cleaning and strengthen
B. Thick steel surface rust removal
C. PLC control , can achieve automatic operation
D. Deburring, deflashing and Cosmetic finishing
E. When production requires dictate batch processing
F. Small to medium size castings, fabrications and heat-treated parts
G. Suitable for the unfavorable impact of long and thin, thin wall parts cleaning

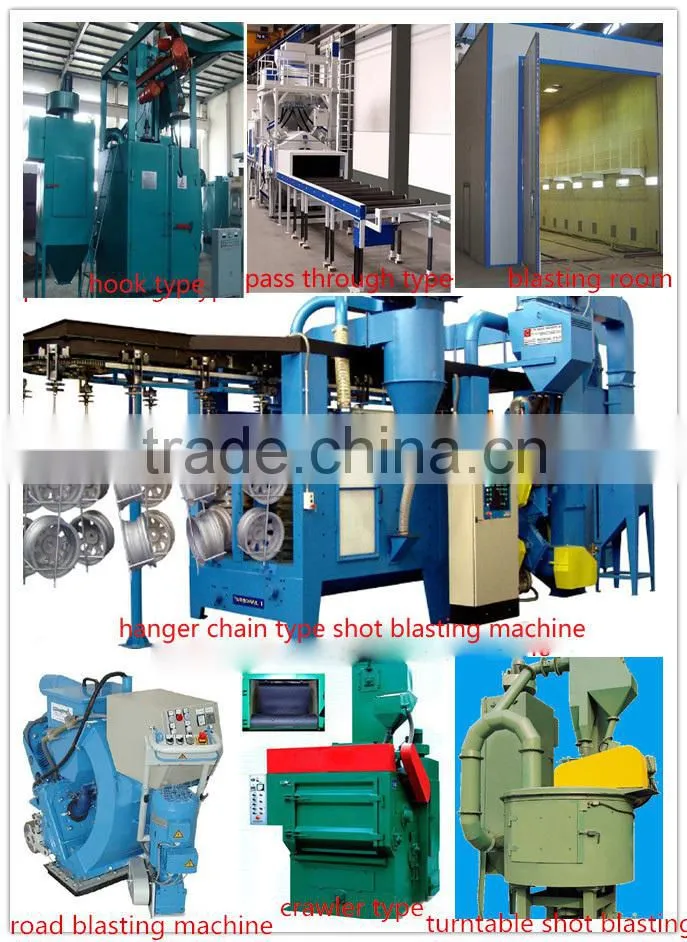

Types of shot blasting machine
1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )
2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.
3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time.
FAQ
1. How many days do you need to produce this machine?
