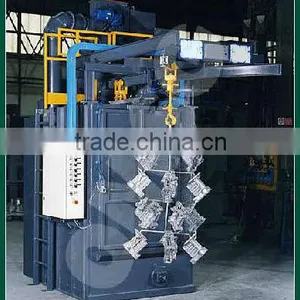

Help CenterAT35/Hook Type Shot Blasting Machine/Cleaning Machine
Related Products
-
Hook Shot Blasting Machine/ Cleaning MachineUS$ 6,800 - 70,000MOQ: 1 Set -
Hook Type Shot Blasting MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Double Hook Shot/sand Blast Cleaning MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Hanger Type Industrial Air Blast/hook Type Shot MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Hook Shot Blasting Machine/lifting Hook/cleaning MachineUS$ 6,800 - 70,000MOQ: 1 Set
Specifications
1.shot blasting machine2.Quantity of shot blasting: 2 * 150kg/min
3.Auto.one operator
4.Custom processing:yes
5.iso9001

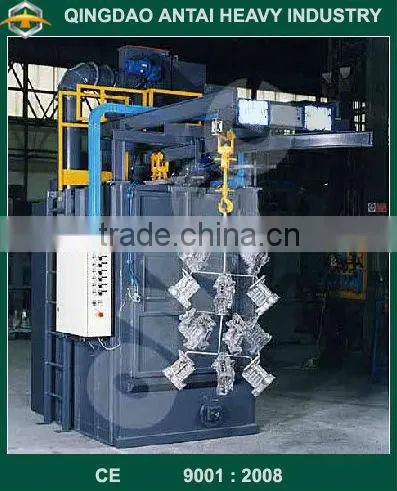

Hanger spinner hook shot blasting machine
COMPANY
•Founded in 2003, is mainly focus on the prouduction and development of casting machinery and enviromental protection.
•After exploring market for 10 years, it gradually formed three leading products: surface cleaning, sand treatment, environmental protection equipment.
•One of the industrialization of entity collecting scientific reseaech, development,production and operation.It has fomed the domestic engineering center of complete sets equipment for shot blast cleaning machine.
•Production desigh all adopt CAD computer aided design.The production base and thchnology development center of casting machinery which has whole variety, high technical content in China foundry machinery industry.
•As a foundry machinery professionaol manufactuers, the company has advanced level at technology, product quality and automation level in the same industry at home.
• Specially equipped with wear-resistant parts factory, to provide customers the best quality accessories service.
1:Usage
This machine is for surface cleaning or strengthening treatment of small castings,forging parts in industry of foundry, building, chemical, motor, machine tool etc. It isspecial for surface cleaning and blasting strengthening on various types, smallproduction castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wall parts which is not suitable for impact.
2: Q3720: specification:
1.Design based on requirments
2.Prompt delivery
3.Competitive price
4.Overhead conveyor
5.Continuous flow process
Max.dimension work piece cleaned |
|
Dia* Height |
Φ2000*2000 mm |
Electric crane type |
CD2 1 set |
Max. lifting height |
2t |
Self-rotating speed |
2.8 r/min |
Motor Power |
0.75 kiwi |
Running speed |
20 m/min |
Lifting speed |
8 m/min |
Motor power |
3 kw |
3:Hook shot blasting machine advantages:
*Improving anti-fatigue character of mechanical products and steel structure parts.
*Removing stress concentration
*Extending its wear life.
*Optimize surface technology state of work pieces.
*Increasing cleaning efficiency enormously.
* Reducing labour strength of cleaning job.
* Reducing environmental pollution.
Other hook shot blasting machine parameter:
Item |
Unit |
Q376 |
Q376B |
Q378c |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
Q37100 |
Maximum weight of cleaning |
Kg |
500 |
600 |
800 |
1000 |
2000 |
3000 |
5000 |
10000 |
Abrasive flow rate |
Kg/min |
2*200 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
5*250 |
Ventilation capacity |
m3/h |
5000 |
5000 |
5000 |
5000 |
9000 |
11000 |
14000 |
16000 |
Lifting amount of elevating conveyor |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Separating amount of separator |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Max overall dimensions of suspender |
mm |
Ø600 *1200 |
Ø700 *1200 |
Ø1000 *1600 |
Ø1200 *1800 |
Ø1400 *2200 |
Ø1600 *2300 |
Ø1800 *2500 |
Ø3000 *3000 |
If you are interested in this equipment, please don't hesitate to contact us!
If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
4: Before and after the workpiece cleaning(Compare the photos)
5: Certification:
