Specifications
1:good quality2:good after-sell service
3:reasonable price
Specifications
1.shot blasting machine
2.Quantity of shot blasting: 2 * 150kg/min
3.Auto.one operator
4.Custom processing:yes
5.iso9001
Technical parameters:
Custom processing:yes
Type: hook type
Model: hook type shot blasting machine
Brand: tongyong
Quantity of shot blasting: 2 * 150kg/min
Dimensions: 395 * 292 * 418.8 (cm)
Load: 500 (kg)
Power: 18670 (w)
Drum diameter: 250mm (mm)
Quantity of shot blasting: 2 * 200kg/min
Dust air flow: 5300m3 / h
Dust removal efficiency: 99%
Load: single hook load: 1000 (kg)
Equipment characteristics:
(1) The machine adopts the no pit structure, easy installation, reduce the investment costs;
2 with a large quantity of shot blasting, high projectile speed centrifugal shot blasting, can significantly improve the cleaning efficiency, satisfied with the quality of clean-up.
By electric hoist hanging the work of the workpiece, the hook own walking track, full hook lifting, running, indoor rotating three functions.
4 dual-hook gear drive rotation of the device.

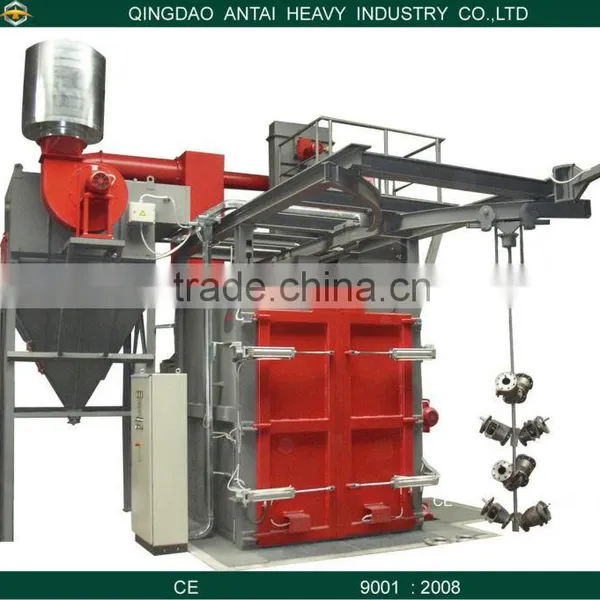

Hook type shot blasting machine for steel castings, aluminum parts and other parts of the surface cleaning and strengthening. Widely used in casting, forging, machinery, iron and steel industry. Which it has no pit, double hook does not change the track, compact structure, high productivity.

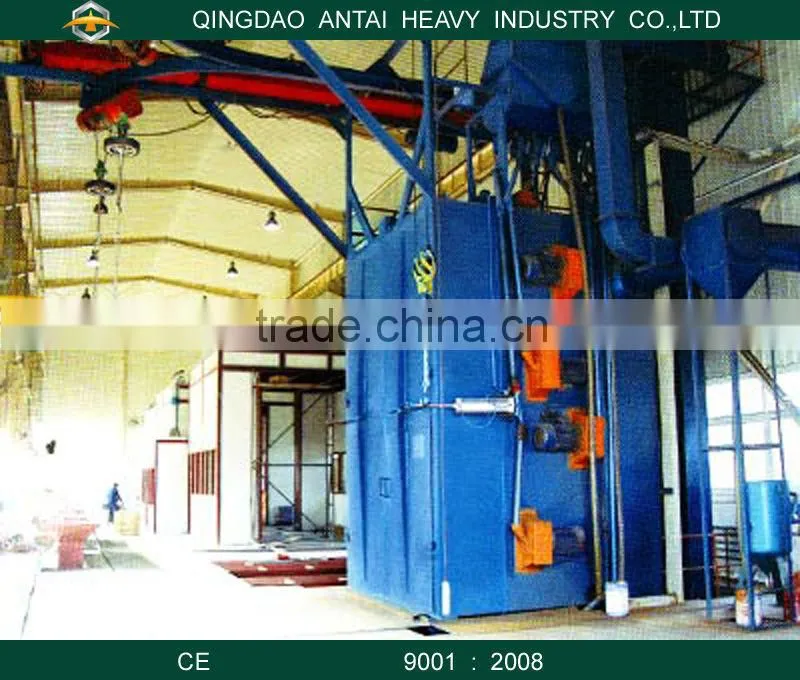

The machine uses no pit structure, indoor equipped with high-Luo wear shield, hook lift, rotate out of automation. It is widely used in many varieties, medium and small quantities of iron castings, steel castings, forgings. Weldment surface cleaning and strengthening. Aircraft type points single hook and double hook, double hook set the Y-shaped track, the workpiece in the outer chamber body cleaning, and loading and unloading, compact structure, production efficiency is significantly improved.
