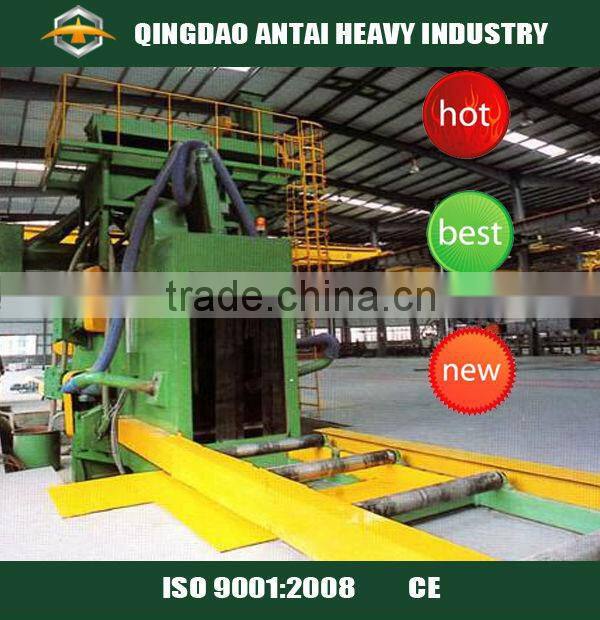

Pass Through Type Shot Blasting Machine

FOB Price

USD $30,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ANTAI	Model Number	Q69
Feature	Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor	Fuel	Electric
Certification	CE, Other, CE, ISO	Use	Burnishing, Degreasing, Descaling / Stripping
Cleaning Process	Other, metal abrasive	Cleaning Type	Clean-In-Place (CIP)
Industry Used	Other, steel plate	Material	Metal / Coil
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1Shot Blasting Machine(Sand blast)
2Plate W1-5m,L 6-12m,T 5-80mm
3Blasting speed1~2.5m/min
4Sa2.5 / Sa3

QH6920 H Beam Shot Blasting Machine / Roller Conveyor Type Shot Blasting Machine / Pass Through Type Shot Blasting Machine

Equipment Main components:

1. Inlet roller

2. Pre-heating chamber

3. Shot blasting chamber

4. Sweeping chamber

5. Abrasive/ shot balls circulation system

6. Shot cycle purifying system

7. Shot dust collecting system

8. Painting chamber

9. Drying chamber

10.Fume filter and harmful gas purifying device

11.Outlet roller

12.Electric control system

Other roller through type shot blasting macnine

Parameter	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
The effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
Dimesion of inlet opening	1600*800	1200*400	1700*400	2200*400	2700*800	3200*800	4200*400
The length of cleaning workpiece(mm)	1200-12000	1200-1600	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
The speed of conveyer(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thickness of cleaning steel sheet (mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Shot ball flow rate (kg/min)	4*120	4*250	4*250	6*250	6*250	6*360	8*360
The shot ball first loading (kg)	4000	4000	4000	4500	4500	8000	11000
Roll brush adjusting height (mm)	200	200	350	450	600	850	900
Air capacity(m3/h)	22000	17560	19000	19550	27758	28050	38000
Total power (kw)	90	78.3	113.5	156.6	204.8	224.55	293.6

We can do all kind of shot blasitng machine according customer's need

Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.

1. The max. Length of the workpiece.

2. The max. Width of the workpiece.

3. The max. Height of the workpiece.

4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)

5. The power supply you need( such as 380V, 3P, 50HZ)

6. Better to send us the workpiece photo or drawing.

Photos:
