Manufacturer Provide Continuous Mesh Belt Thermal Treatment Furnace

Continuous Mesh Belt Thermal Treatment Furnace

Brief

  The continuous mesh belt thermal treatment furnace is mainly used for heat treating small bulk parts, using the following heat treatment processes:

  1.Hardening and Tempering

  2.Austempering

  3.Annealing from forging heat

  4.Isothermal Annealing

  5.Normalizing and Recrystallizing

  6.Hardening

  7.Tempering

  8.Carburizing

Structure

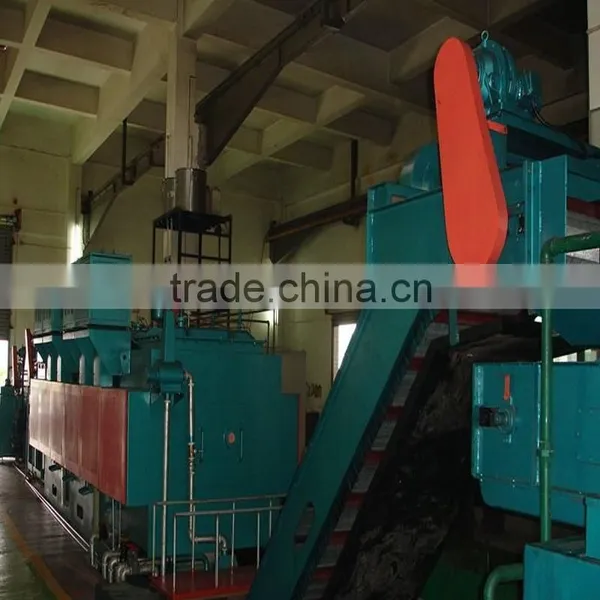

  This thermal treatment furnace production line mainly consist of feeding machine, quenching furnace, elevator, quenching tank, cleaning machine, dryers, tempering furnace and electric control system, etc.

Application field

This thermal treatment furnace is well suited for heat treating;

1.Standard parts and hardware,for instance, bolts and nuts

2.Small pressed parts

3.Rings

4.Punched parts

5.Castings

6.Forged parts

Advantages

1.Internal conveyor belt, wherever possible; this results in energy savings by eliminating the need for energy to heat up the belt repeatedly; less wear     on the belt through uniform temperature ad use of stored heat; long belt life;

2.Internal conveyor belt is available in different cast link designs;

3.Gas tight furnace design heated by radiant tubes;

4.Loading devices for different loading techniques handling the product carefully (soft-handling). Metering and weighing is performed part specific and adjusted for furnace capacity;

5.Integrated pre-wash with dephosphatizing and intermediate washing technique, preferably, with centrifuge washers. It is also possible to use spiral  washers, continuous washers or washers in combination;

6.Quench and cooling equipment for all customary media, with removal of the parts via conveyor belts;

7.The process in continuous, conveyor belt furnace runs automatically. with the characteristic of large capacity, high efficiency, and saving labor force.

Main technical parameters of heating furnace

Remarks: Various furnace sizes can be designed and manufactured as user’s needs.
