Pit type carburizing furnace vacuum and gas carburizing process can be used
- 500 Set / Sets per Month
- Any port of China.
- T/T
Product Details
Condition: | New | Type: | Resistance Furnace | Usage: | Heat Treatment Furnace |
Place of Origin: | Henan, China | Brand Name: | ZHONGLI | Model Number: | RQ3-25-9 |
Voltage: | 380 V, can be customized according to user's needs | Power(W): | 25 KW | Dimension(L*W*H): | Diameter:800mm, Depth:950mm |
Weight: | 1700 kg | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | No overseas service provided |
Product Description

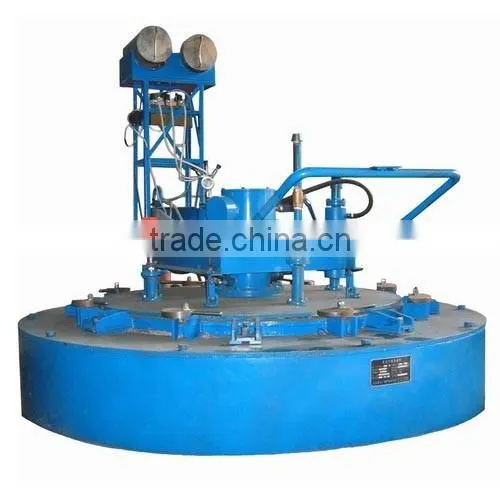

Pit type carburizing furnace (vacuum and gas carburizing process can be used)
Brief
Pit type carburizing furnace (vacuum and gas carburizing process can be used) is new type and energy-saving batch type furnace, working temperature is 950℃,mainly used for rod and long axis steel mechanical parts for gas carburizing,the workpiece is vertically loaded in furnace tank, not easy to deform.
Structure
Pit type carburizing furnace (vacuum and gas carburizing process can be used) is mainly composed of furnace shell, furnace lining, heating device, muffle tank, loading frame, the furnace cover, and furnace cover lifting mechanism, etc. Furnace body is cylindrical deep well, workpiece is vetically loaded in furnace tank for heating,Pit type furnace is usually placed under the ground plane in the workshop, also is placed above the ground plane, or ground level fluctuation in each half.
This series can also be used for machine parts for quenching, tempering, annealing, normalizing, carburizing and carbonitriding heat treatment.etc,
Electric or gas can be used for heating, if electricity is used as heat source, known as well type resistance furnace.
Main technical parameters of pit type carburizing furnace
Model | Rated power(KW) | Rated temperature (℃) | Rated voltage(V) | Phase | Furnace hearth size(mm) | Max loading capacity(kg) | Weight(kg) |
RQ3-25-9 | 25 | 950 | 380 | 3 | φ 300*450 | 50 | 1700 |
RQ3-35-9 | 35 | 950 | 380 | 3 | φ 300*600 | 100 | 1850 |
RQ3-60-9 | 60 | 950 | 380 | 3 | φ 450*600 | 150 | 2650 |
RQ3-75-9 | 75 | 950 | 380 | 3 | φ 450*900 | 220 | 2950 |
RQ3-90-9 | 90 | 950 | 380 | 3 | φ 600*900 | 400 | 3700 |
RQ3-105-9 | 105 | 950 | 380 | 3 | φ 600*1200 | 500 | 3800 |
Note: various size pit type carburizing furnace (vacuum and gas carburizing process can be used) can be also designed and manufactured as user's needs.
