High Efficiency High Temperature Bell Type Annealing Furnace
Brief

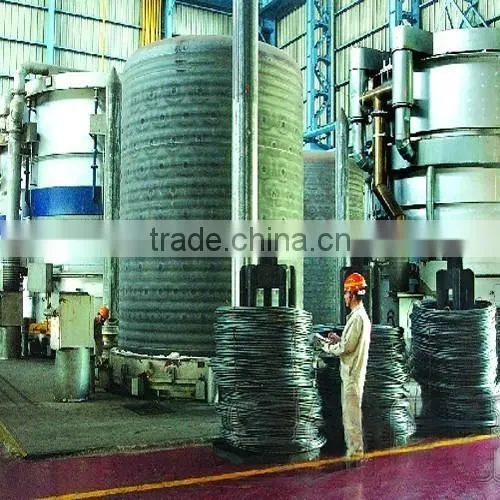

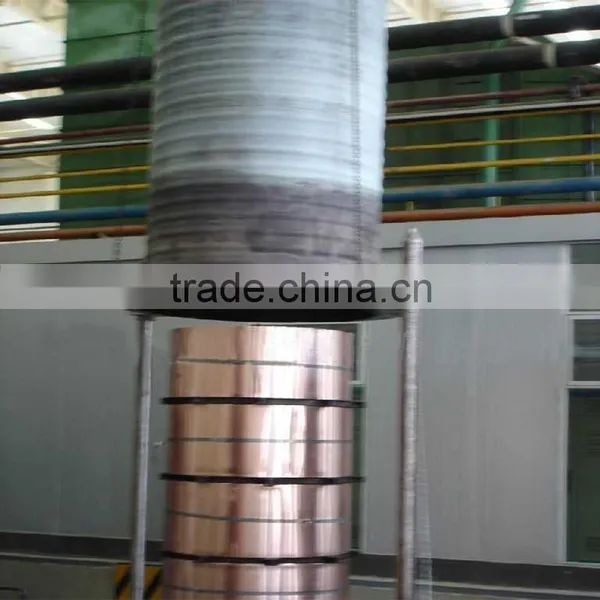

Bell type annealing furnace is new type and energy-saving batch type furnace.Mainly used for coiled stock, pipe coil, coiled silicon steel sheet of red copper, brass, alloy copper for no oxygen bright heat treatment.
Structure

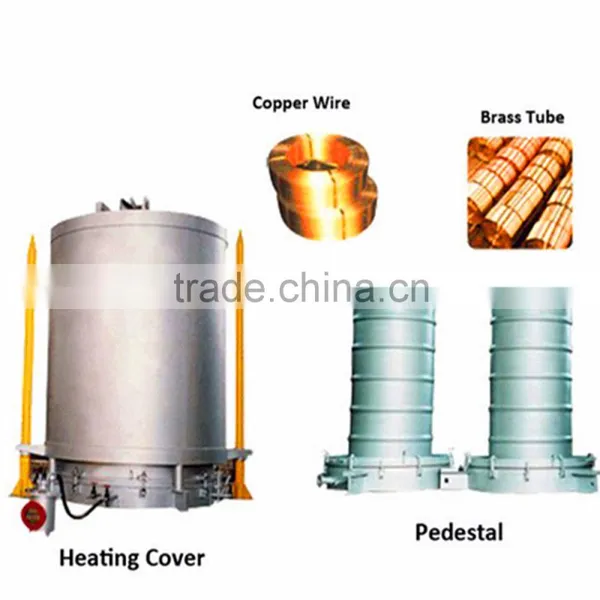

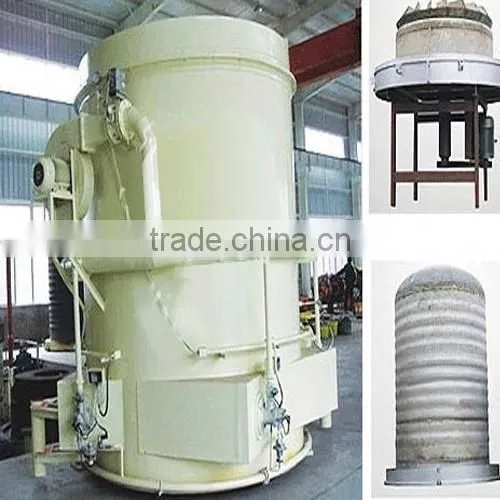

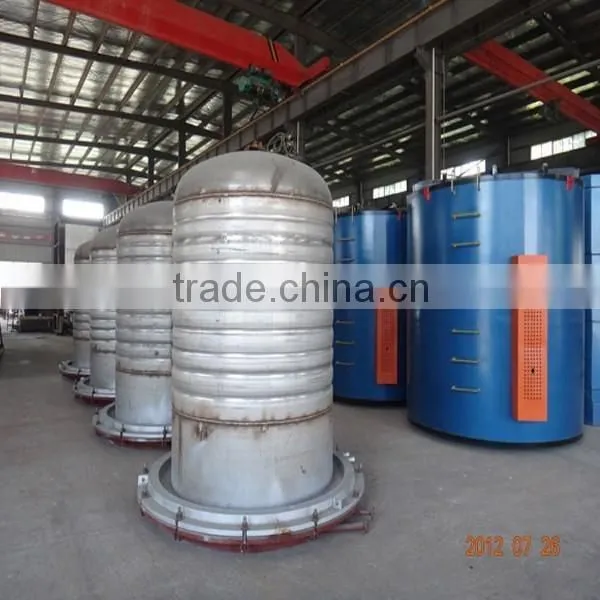

This bell type annealing furnace is mainly composed of 1 heating shield,2 furnace base,2 inner cover,cooling cover, valve braket and pipeline.
Advantages
1.Strong convective circulation,shortening heat treatment cycle and high efficiency;
2.Using PPM sealing mechanism in the connection part, more stable atmosphere, can avoid H2 or other protective atmosphere combined with air;
3.Using the microcomputer intelligent instrument to control furnace temperature, can perform auto control.
Technical parameters
Model |
RZ-100/200-8 |
RZ-120/250-8 |
RZ-140/290-8 |
RZ-160/320-8 |
Effective loading diameter (mm) |
1000 |
1200 |
1400 |
1600 |
Effective loading height (mm) |
2000 |
2500 |
2900 |
3200 |
Max loading capacity (t) |
5 |
10 |
20 |
30 |
Max. working temperature(℃) |
850 |
850 |
850 |
850 |
Heating power(kw) |
150 |
210 |
280 |
360 |
Fan heat cycle power(kw) |
15/22 |
15/22 |
10/37 |
10/37 |
Heat cycle rpm fan speed (rpm) |
750/1500 |
750/1500 |
750/1500 |
750/1500 |
Diameter blower fans (mm) |
640 |
640 |
850 |
850 |
Control temperature accuracy (℃) |
<±3 |
<±3 |
<±3 |
<±3 |
Cooling fan power (kw) |
0.5*2 |
0.75*2 |
0.75*2 |
1.1*2 |
Cooling water consumption (t/h) |
8 |
10 |
12 |
14 |
Protective gas consumption( m3/h) |
8 |
14 |
18 |
25 |
Weight (t) |
20 |
25 |
32 |
40 |
Note: Various size of bell type annealing furnace can be also designed and manufactured as user's needs.
