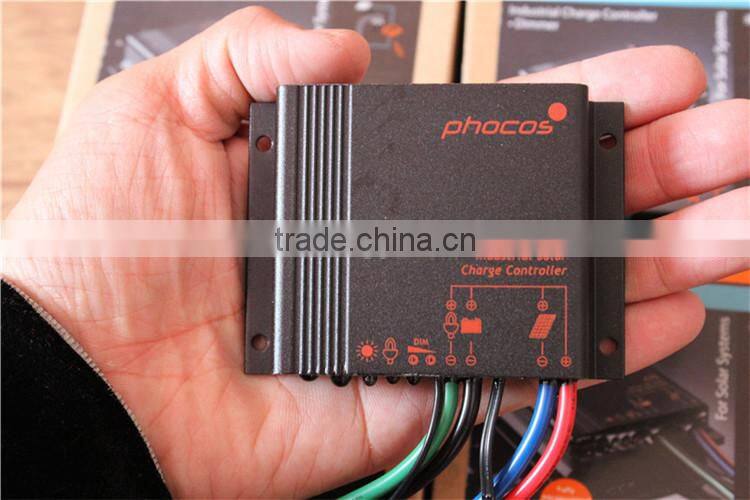

Phocos Solar Charge Controller 48 Volt Solar Charge Controller

Name: Phocos Solar Charge Controller 48 Volt Solar Charge Controller
Brand: PHOCOS
SKU: 110442965
Availability: InStock

US$ 1 - 2 MOQ: 100 Sets

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

PHOCOS

Model Number:

CIS

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name PHOCOS

Model Number CIS

Application Charger Controller

Rated Voltage Other, 12/24v AUTO

Maximum Current 5A,10A,20A

Specifications

Phocos solar charge controller 48 volt solar charge controller
1.12V and 24V
2. Infrared Remote Control

Phocos solar charge controller 48 volt solar charge controller

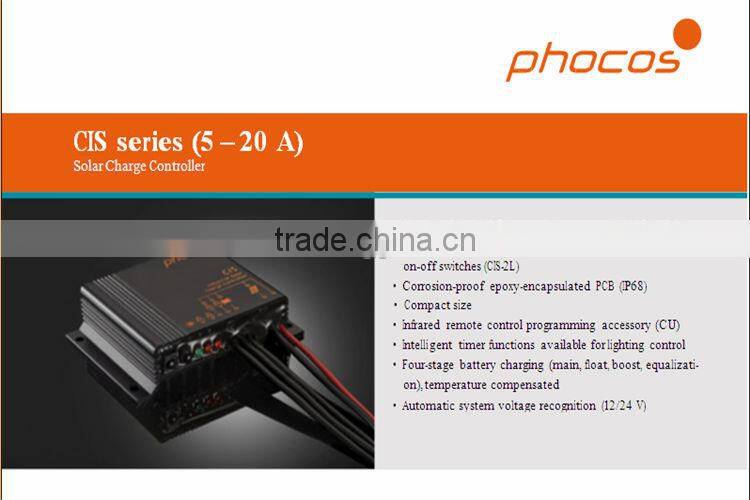

Features Phocos solar charge controller 48 volt solar charge controller

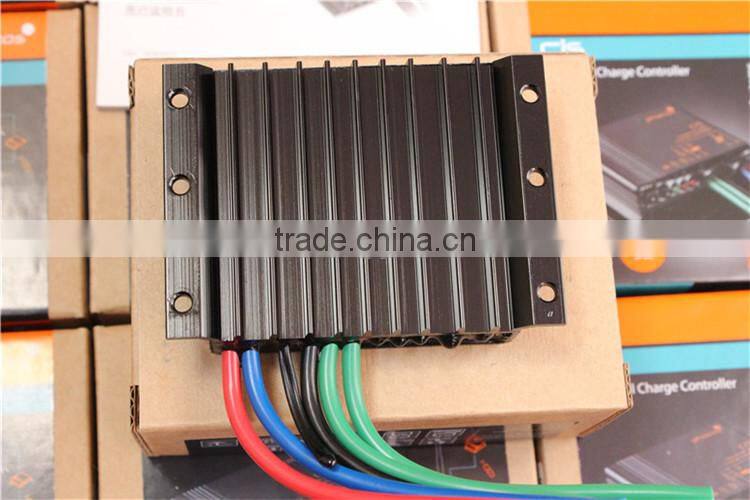

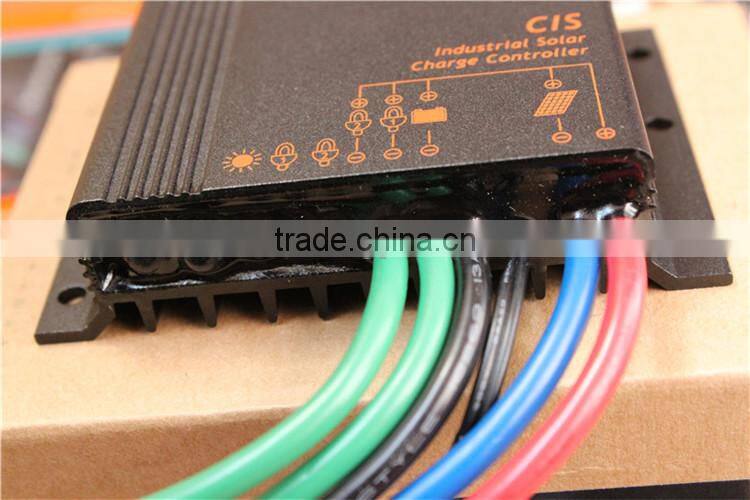

1.Robust Aluminum Housing.

2.Expoxy Encapsulated PCB to Prevent Corrosion.

3.Compact Size.

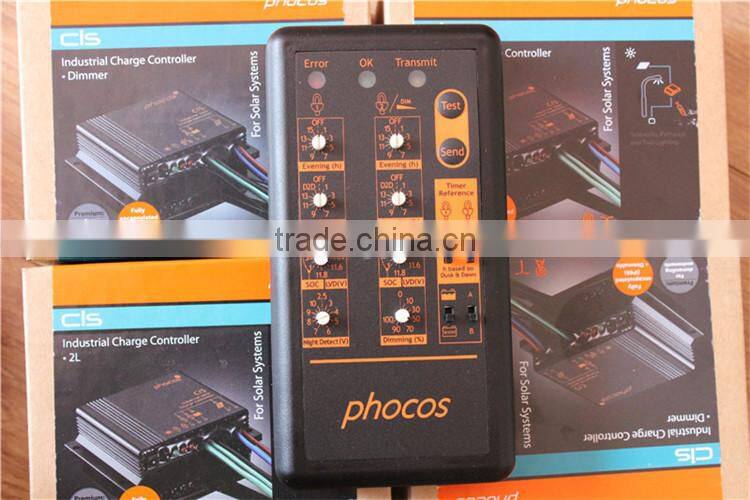

4.Infrared Remote Control Programming Accessory.

5.Intelligent Timer Functions.

6.Widely Programmable.

7.External Temperature Sensor(Optional).

8.4 Stage Battery Charging (Main, Float, Boost, Equalization).

9.Dual load or Dimmable Load Output.

10.Automatic System Voltage Recognition(12V/2V).

Parameter Phocos solar charge controller 48 volt solar charge controller

Type	CIS 05 CIS-2L 05	CIS 10 CIS-2L 10	CIS 20 CIS-2L 20
System voltage	12/24 V auto recognition
Max. charge/load current	5 A	10 A	20 A
Floatcharge	13.8/27.6 V (25 °C)
Main charge	14.4/28.8 V (25 °C), 30 min. (daily)
Boostcharge	14.4/28.8 V (25 °C), 2 h Activation:battery voltage < 12.3/24.6 V
Equalization	14.8/29.6 V (25 °C), 2 h Activation:battery voltage < 12.1/24.2 V (at least every 30 days)
Deep discharge protection: Cut-off voltage Reconnectlevel	11 – 12 V / 22 – 24 V 12.8/25.6 V
Overvoltage protection	15.5/31.0 V
Undervoltage protection	10.5/21 V
Max. panel voltage (Overvoltageprotection by varistor)	55 V
Temperaturecompensation (Charge voltage)	−25 mV/K at 12 V −50 mV/K at 24 V
Max. own consumption	5 – 8 mA at 12 V 6 – 10 mA at 24 V
Grounding	Positive grounding possible
Ambienttemperature	−40 to +60 °C
Max. altitude	4,000 m above sea level
Batterytype	Leadacid (GEL, AGM, flooded)
Adjustmentrange: Evening/morninghours Night/day detection	0 – 15 h / 0 – 14 h 2.5 – 10 V
Wire length	10 cm
Dimensions (W x H x D)	82 x 58 x 20 mm
Weight	150 g
Wire cross section	1.5 mm2	1.5 mm2	2.5 mm2
Type of protection	IP68 (1.5 m, 72 h)
