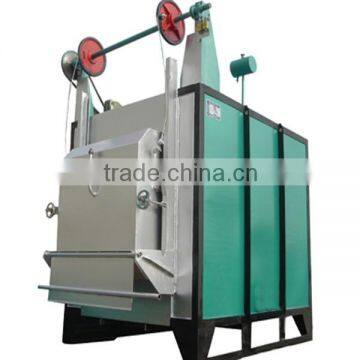

Box-type sealed quench furnace
- 300 Set / Sets per Month
- Any port of China
- T/T
Product Details
Condition: | New | Type: | Resistance Furnace | Usage: | Heat Treatment Furnace |
Place of Origin: | Henan, China | Brand Name: | ZHONGLI | Model Number: | RX3-90-12 |
Voltage: | 380V,also can provide as user's needs. | Power(W): | 90KW | Dimension(L*W*H): | 1700*950*650(L*W*H)mm |
Weight: | 3900kg | Certification: | ISO9001:2008 | Warranty: | 1 year |
After-sales Service Provided: | No overseas service provided |
Product Description
Box type resistance furnace
Brief
RX3 series box type resistance furnace is standard energy-saving batch type furnace,using the following heat treatment processes: quenching, tempering, annealing and normalizing heat treatment,etc.
Application field
Mainly used for high chromium, high manganese steel castings, ductile iron, roll, steel ball, crusher hammers, wearing plate, flange and various mechanical parts. Can also suitable formetallic material heat treatment in various colleges, universities and research institutes.
Advantages
1.Low heat conduction and heat capacity;
2.Excellent thermal stability and thermal insulation;
3.Good heat preservation effect and temperature uniformity.
Main technical parameters
Model | Rated power(KW) | Rated voltage (V) | Rated temperature(℃) | Phase | Furace hearth size(L*W*H)(mm) | Max.loading capacity(kg) | Weight (kg) |
RX3-15-9 | 15 | 380 | 950 | 3 | 650*300*250 | 80 | 1100 |
RX3-30-9 | 30 | 380 | 950 | 3 | 950*450*350 | 200 | 2000 |
RX3-45-9 | 45 | 380 | 950 | 3 | 1200*600*400 | 400 | 2500 |
RX3-60-9 | 60 | 380 | 950 | 3 | 1500*750*450 | 700 | 4500 |
RX3-75-9 | 75 | 380 | 950 | 3 | 1800*900*550 | 1200 | 5200 |
RX3-20-12 | 20 | 380 | 1200 | 3 | 650*300*250 | 50 | 1400 |
RX3-45-12 | 45 | 380 | 1200 | 3 | 950*450*350 | 100 | 2210 |
RX3-65-12 | 65 | 380 | 1200 | 3 | 1200*600*400 | 200 | 2600 |
RX3-90-12 | 90 | 380 | 1200 | 3 | 1500*750*450 | 400 | 3900 |
RX3-115-12 | 115 | 380 | 1200 | 3 | 1800*900*550 | 600 | 4900 |
RX3-14-13 | 14 | 380 | 1350 | 3 | 520*220*220 | 50 | 635 |
RX3-25-13 | 25 | 380 | 1350 | 3 | 600*280*300 | 80 | 1200 |
RX3-37-13 | 37 | 380 | 1350 | 3 | 810*550*370 | 100 | 1920 |
Remarks:Various furnace sizes can be designed and manufactured as user’s needs.
