High Efficiency Aluminum Alloy Aging Furnace

Name: High Efficiency Aluminum Alloy Aging Furnace
Brand: ZHONGLI
SKU: 110428535
Availability: InStock

US$ 3,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Resistance Furnace

Usage:

Heat Treatment Furnace

Xinxiang Zhongli Furnace Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Resistance Furnace

Usage Heat Treatment Furnace

Place of Origin Henan, China

Brand Name ZHONGLI

Model Number JN94-383

Voltage 380V,also can provide as user's needs.

Power(W) 60kw

Dimension(L*W*H) Diameter:800mm; Depth:700mm

Weight 4000kg

Certification ISO9001:2008

Warranty 1 year

After-sales Service Provided No overseas service provided

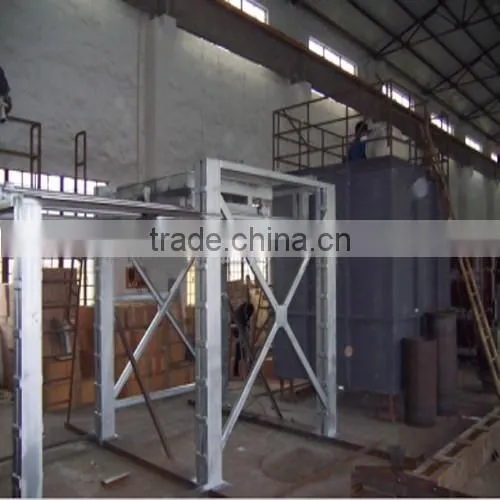

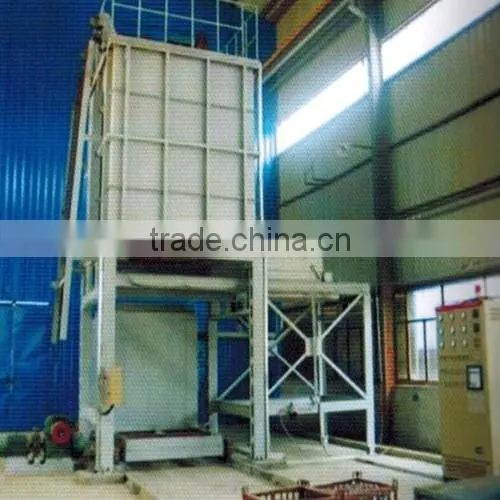

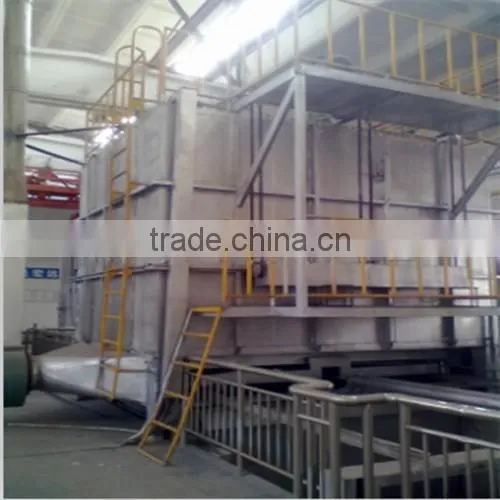

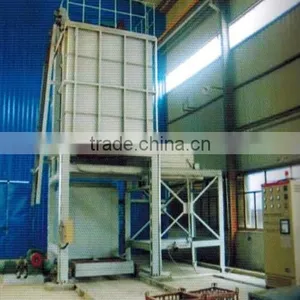

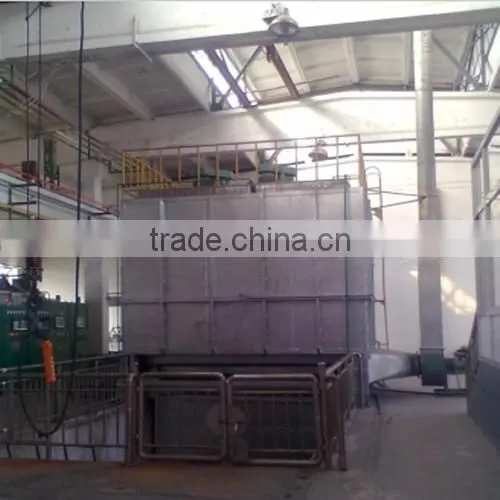

Aluminum alloy aging furnace

Application field

This Aluminum alloy aging furnace is mainly used for aluminum alloy casting rapid quenching and tempering heat treatment, etc.

Advantages

1.Using the suspension type operation, good thermal stability and uniform temperature.

2.The electric furnace is equipped with charging cart, with manual and automatic control.

3.Aadopts PID automatic temperature control, high precision of temperature control.

Main technical parameters

Model		JN94-383	JN94-398	JN94-144	JN94-3414
Rated power(KW)		60	90	150	100
Rated voltage(V)		380	380	380	380
Frequency(Hz)		50	50	50	50
Max. temperature(℃)		650	650	650	650
Working temperature(℃)		650	650	650	650
Phase		3	3	3	3
Furnace hearth size(mm)	Length(mm)			1400	1100
	Width(mm)	800	1000	1400	1100
	Height(mm)	700(depth)	1000(depth)	1200	1400
Heating element connection		Y	Y	Y	Y
No-load heating up time(h)		≤2	≤2	≤2.5	≤3
No-load furnace power losses(KW)		≤13	≤18	≤32	≤18
Temperature control accuracy(℃)		±1	±1	±1	±1
