Used professional video cameras sale DVI-I video output interface
Model No.: HD8820-DSYC-K4
20x Optical Zoom, DVI,HD-SDI,CVBS
2.0 Megapixel Full HD Camera experience 1080p60fps vivid images, equipped with 20x optical zoom lens, enhancing your video conferencing, distance learning, training meeting or courtrooms with natural and smooth video images. The HD-SDI, YPbPr, CVBS Video output available at model HD8820-DSYC-K4 multi-interface only, and DVI-I connector is suited for DVI-I Digital component which provide high-quality video display
Performance of cameras with DVI-I video output interface :
- Full HD (1080P60)
- 2X optical zoom auto focus lens
- 1/2.8'' Progressive CMOS,2.1 M compatible f=4.7-94mm
- H.264/MJPEG compression
- G.711 audio compression
- Two-way audio supported,broadcast system
- Support auto Day/Night
- Pan:0°~355°,Tilt:0°~180°
- Pan speed:0.01°-180°/sec,Tilt speed:0.01°-120°/sec
Features of cameras with DVI-I video output interface :
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Power ON-OFF switch
- Work & Standby LED indicator
- Speed Match
- Auto/Manual focus/brightness/WB
- RS-232C/VISCA Protocol
- Lens/Dome OSD menu
- Boundary scanning
- Standby & wakeup status
- Swap video format button
- DVI,HD-SDI,CVBS output
Installation of cameras with DVI-I video output interface :
- Desktop
- Ceiling mount
- Standard Tripod accessory

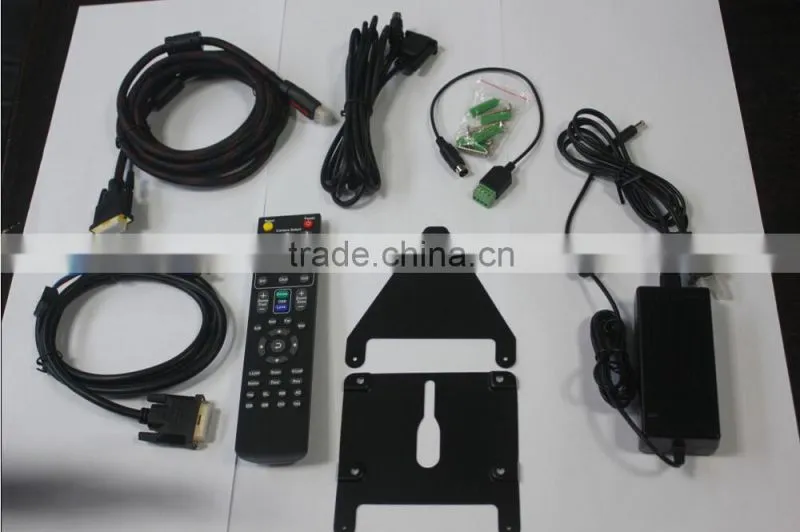

Accessories kits in package of cameras with DVI-I video output interface :
- 1x HD8820-DSYC-K4 Video Camera
- 1x DC 12V/2A Power Adaptor
- 1x User’s manual
- 1x Installation brackets & screws
- 1xIR Remote Controller
Specification Sheet
|
Image Sensor |
Sensor |
1/2.8” Progressive CMOS |
Effective Pixels |
2.1 Mega Pixel |
|
White Balance |
Auto /Manual /Indoor /Outdoor |
|
Minimum Illumination |
0.5 Lux at F1.6 |
|
Back-light compensation |
On/Off |
|
S/N Ratio |
>50db |
|
Shutter speed |
1/1s - 1/10,000s |
|
S/N ratio |
>50dB |
|
Lens |
Focus |
f=4.7-94 mm |
Hov |
55°-4° |
|
Zoom |
20 Optical Zoom |
|
Video Output |
10M/100M LAN |
|
Network protocol |
PPPOE,TCP/IP,DHCP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,STP,DDNS,DNS |
|
Video output formats |
1080P60,720P60 |
|
Audio Input |
MIC |
|
Audio Output |
linear |
|
Communication control interface |
RS-485 |
|
Communication control protocol |
PELCO-D VISCA |
|
Baud Rate |
9600bps |
|
Preset |
64 |
|
Patrol tours |
4 |
|
Speed Matching Function |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image Auto Flip |
Support Horizontal/Vertical image flip |
|
Pan Speed |
0-120 degrees/s |
|
Tilt Speed |
0-150 degrees/s |
|
Pan Rotation Angle |
355 degrees |
|
Tilt Rotation Angle |
+ 90 degrees, - 45 degree |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359 degree(Programmable) |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power |
DC12V±10%,1.2A |
|
Operation Temperature |
0℃~50℃ |
|
Length X width X high |
250mm×140mm×154mm |
|
Weight |
1380g |
|

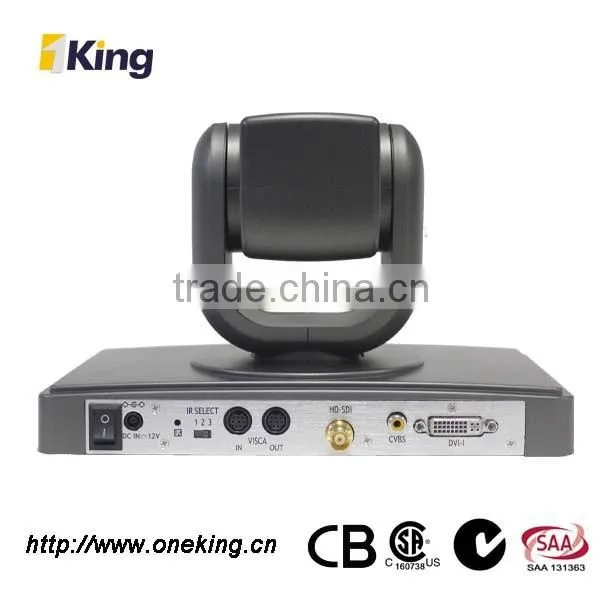

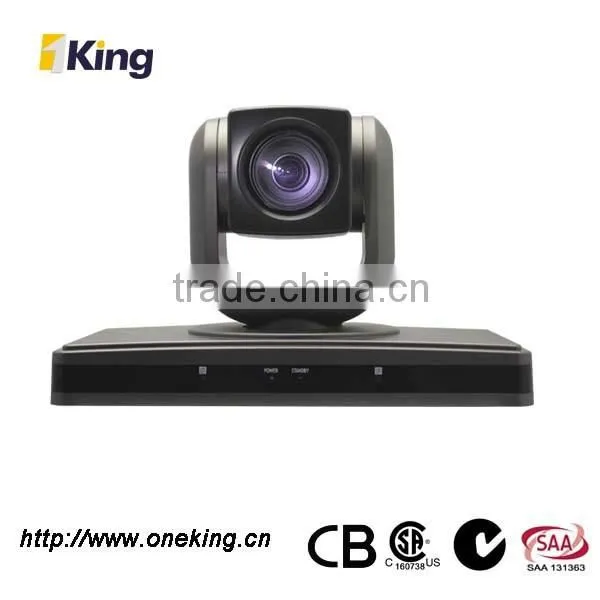

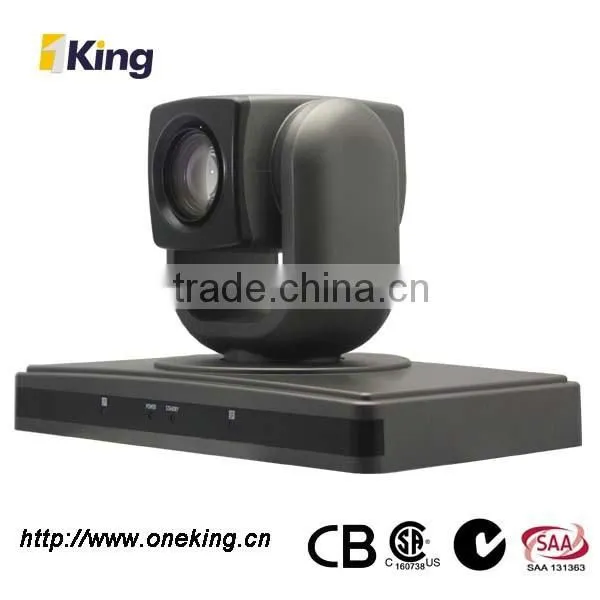

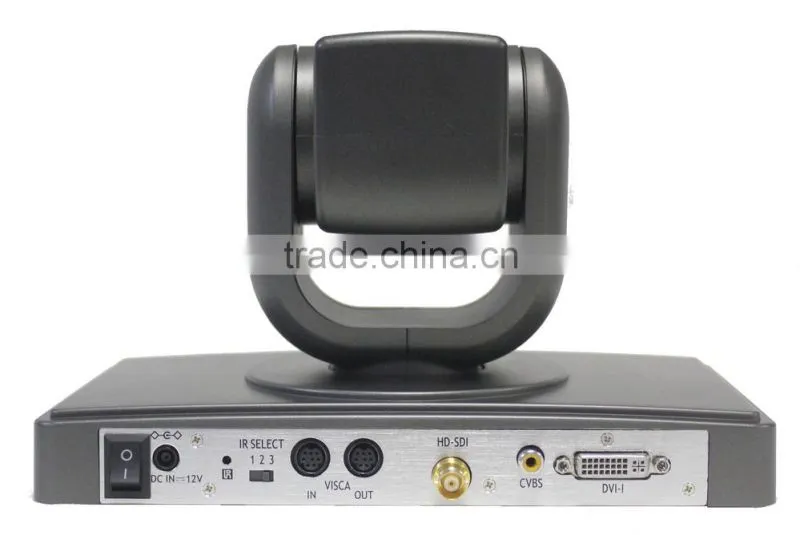

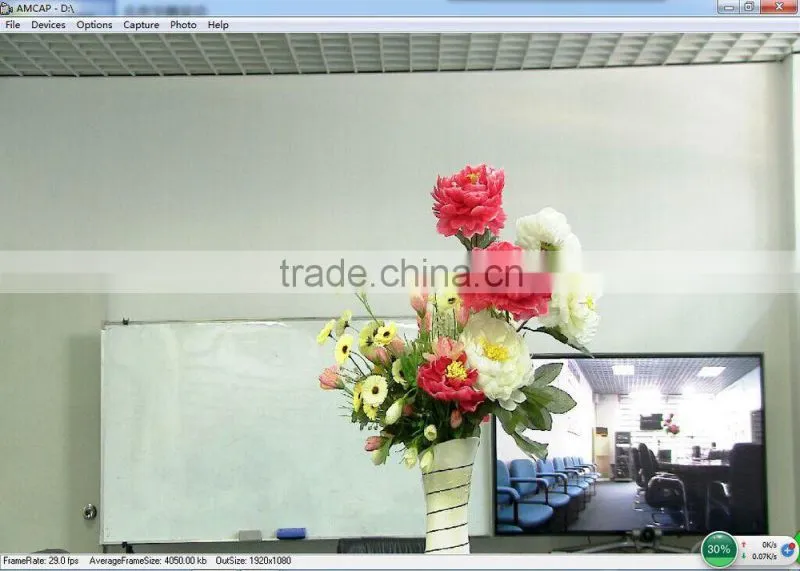

Images of cameras with DVI-I video output interface :

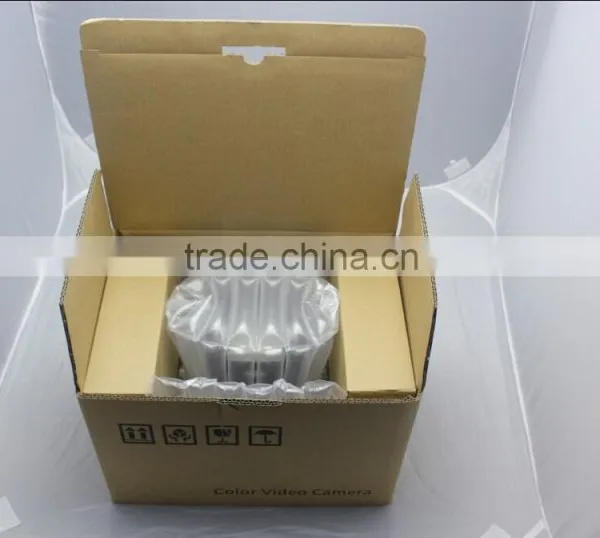

Package of cameras with DVI-I video output interface :
contact me please scan the QR code:
Payment Of cameras with DVI-I video output interface :
Oneking Of cameras with DVI-I video output interface :
Oneking introduction |
Oneking Technologies was found in 2005, a high-tech enterprises which has 110 staff, engaged in designing, producing and marketing of the professional Color Video Conferencing cameras and video surveillance products over 7-year. Since 2001 we had took part in research of network video & audio products in the Institute of Shenzhen University telecommunications, and keep pace with the most advanced Technologies. |
Example Projects Of cameras with DVI-I video output interface :
Guarantees/Warranties/Terms and Conditions
1. Quality is guaranteed within 2 years and delivery is on time.
2. T/T, Western Union or Paypal are accepted.
3. 3-5 working days since payment receipt;
4. Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
5. We ensure our goods with the same quality as the approved one. If not, we will remake them for you.
What is beneficial for you ? |
|
FREE advantages 2. A full quotation as your required will be offered in 24 hours; 3. 20 designers team-workers will give you ideas for your products; |
