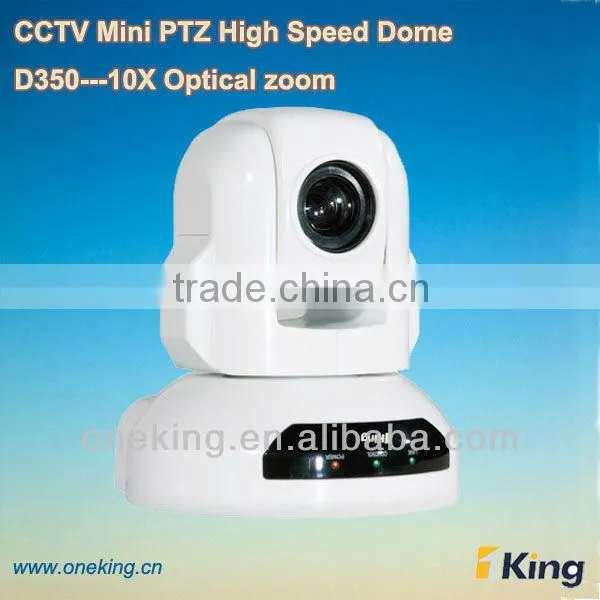

High Quality Analogy Camera Mini High Speed dome camera
- 3000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Oneking | Model Number: | D350 |
Type: | Other, Analog Camera, Video Camera | Style: | Mini Camera | Sensor: | CCD |
Technology: | Infrared | Special Features: | Other |
Product Description
Specifications
IP Mini High Speed dome camera ,1/4" Sony CCD, 420TVL IR, 20M IR Distance Low Speed Dome PT 355 de pan & 180 de tilt rotation
We are the professional manufacturer of PTZ IP/cctv Camera------
Basic Features of D350 Mini High Speed Dome Camera :
l Mini indoor speed dome with wide view angle
l 1/4 inch,Interline Transfer CCD
l 10 Optical x 10 Digital zoom 480-530TVL, support SONY, SAMSUNG, Oneking Cam modules
l BNC/CVBS:1.0 vpp Video Output
l PTZ Control Protocol :PELCO-P PELCO-D
l RS-232, RS-485 control communication
l 360 degree Pan Continuously & 180 degree Tilt
l 64 preset positions, 4 Patrol cruise
l Support Wall/Ceiling mount
High Quality Analogy Camera Mini High Speed dome camera
- 1. Private tooling for OEM/ODM project, we could put your logo on software and products for free under mass production (attached the logo for example).
2. Auto-identify various SONY,CNB,CIGE, etc, and auto read camera model when power on.
3. Show and Edit title function containing 20 English letters, can independently set the titles for camera itself, Preset Position, Pattern Scan, Auto-level Scan and Zone display.
4. Auto flip with vertical 180° in Omni-directions, no fade zone.
5. 64 preset position with editable title; 4 patrol tracking routes, each can insert 32 spots.
6. 6 display zones with editable title.
7. RS485 control, integrated various of protocols, PELCO-D
8. IP 66 outer cover with all day protection; Built-in auto thermostatic control system with patent.
PTZ Mini CCTV Camera Details Product Images :

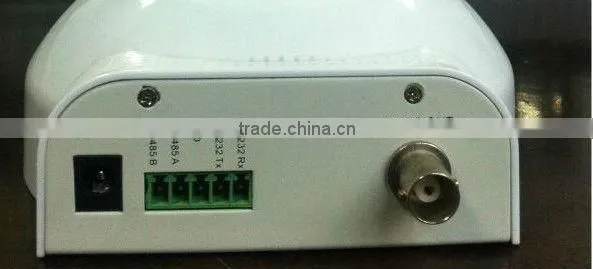

The Analogy PTZ CCTV Camera -Backboard:
The Analogy PTZ CCTV Camera -Package Box:
Analogy CCTV Camera Spec sheet:
Spec sheet of D350:
Image Sensor | 1/4 inch,Interline Transfer CCD |
Camera Module | Samsung SCM-2121P(12X Optics),SDM-100(10 X Optics),SONY 10 X,Oneking 10X(Optional) |
Zoom | 12 X Optics X 16 X Digital Zoom (standard) |
Min Illumination | SCM-2121P(12X) 0.2Lux/F1.6(50 IRE):Color 0.04Lux/F1.6(50 IRE):B/W |
SDM-100(10X) 0.7Lux/F1.8(50 IRE):Color 0.02Lux/F1.8(50 IRE):B/W | |
Infrared | / |
Gain Control | AUTO |
White Balance | AUTO |
S/N Ratio | >48db |
Video Output | CVBS:1.0Vpp at 75 0hm |
Pan Speed | 1-250°/s |
Tilt Speed | 1-100°/s |
Pan Rotation Angle | 360° |
Tilt Rotation Angle | 90° |
Boundary Scan Function | 0-359° |
Power-on Setting | Boundary Scanning, Patrol tours |
Speed Matching | Support |
Preset | 128 |
Patrol Tours | 6 |
Control Communication Interface | RS-485 / RS-232 |
Baud Rate | 2400/4800/9600/19200 bps |
OSD Menu | Support |
PTZ Control Protocol | PELCO-P,PELCO-D |
Power | DC12V±10%,6W |
Working Temperature | Tem: -10°C~50°C RH: 10%~90%RHG |
MTBF | 50000 hours |
Size | 4 inch |
Weight | 2350g |
Installation | Ceiling/Wall/Pendent mounts |
