Pan & Tilt Mini CCTV Camera With Fixed Lens

Name: Pan & Tilt Mini CCTV Camera With Fixed Lens
Brand: Oneking/OEM
SKU: 110419367
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Oneking/OEM

Model Number:

D370

Shenzhen Oneking Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Oneking/OEM

Model Number D370

Type Other, Analog Camera, CCTV Camera

Style Mini Camera

Sensor CCD

Technology Infrared

Specifications

Pan & Tilt cctv camera
1/3" Sony CCD, 420TVL IR, 20M IR Distance Low Speed Dome PT 355 de pan & 180 de tilt rotation
RF10meter

We are the professional manufacturer of PTZ IP/cctv Camera------

Basic Features of D370 Mini PT CCTV Camera :

l 1/3" Sony CCD

l 6mm fixed lens 480-530TVL,

l BNC Video Output

l 360 degree Pan Continuously & 180 degree Tilt

l 64 preset positions, 4 Patrol cruise

ll Support Wall/Ceiling mount

Pan & Tilt CCTV Mini camera with Fixed Lens

Additional advantages:

1. Private tooling for OEM/ODM project, we could put your logo on software and products for free under mass production (attached the logo for example).

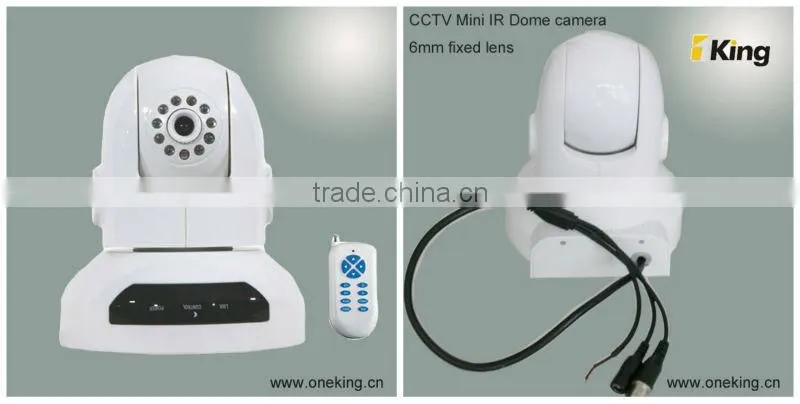

PT Mini CCTV Camera Details Product Images :

The Analogy PTZ CCTV Camera -Package Box:

Analogy CCTV Camera Spec sheet:

Model Number:D370

Model		D-370
Image Sensor	CCD	1/3" SONY CCD
	Minimum Scene Illumination	0.05 Lux
	White Balance	AUTO/Manual
	Gain Control	AUTO
	Back-light compensation	On/off
	Electronic shutter	1/50-1/120,000S
	Horizontal resolution	>420 TVL
	S/N Ratio	More than 46 dB
Lens	Focus	Manual
	Lens	1/3 Sony CCD,6mm Lens
IR Distance		15-20M
Video Output		VBS: 1.0Vpp at 75 ohm
Control Decoder		Built-in
Communication		EIA/RS-485/RS-232
PTZ Control Protocol		PELCO-P,PELCO-D,OneKing
Baud Rate(EIA/RS-485)		4800/9600bps
Patrol		4
Preset Position		64
Power On active		Auto pan scan or Patrol (programmable)
Speed Matching Function		Support
Pan Speed		0-16 degrees/s
Tilt Speed		0-16 degrees/s
Pan Rotation Angle		355 degrees
Tilt Rotation Angle		180 degrees
Auto Pan Scan		support
Boundary scan		0-355 degrees (programmable)
Power		DC12V+-10% 1.2A
Operation Temperature		0°-60°C
Environmental humidity		0 - 95%RH(non-condensation)
Weight		640g
