Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > Best China Wpc Profile Production Line to Produce the Good Wpc Profiles

Best China Wpc Profile Production Line to Produce the Good Wpc Profiles

Name: Best China Wpc Profile Production Line to Produce the Good Wpc Profiles
Brand: TRINITY
SKU: 110412559
Availability: InStock

US$ 50,499 - 63,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Granules

Plastic Processed:

PVC

Contact Supplier Request Quote Chat Now

Tongling Zonfa Trinity Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai and ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Granules

Plastic Processed PVC

Screw Design Other, no screw

Automatic Grade HIGH

Place of Origin Anhui, China

Brand Name TRINITY

Model Number SS14

Voltage 380V and 480V

Power(W) 22.6KW

Dimension(L*W*H) 14000x1400x1150mm

Weight 4800KG

Certification CE and ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Best china wpc profile production line to produce the good wpc profiles

Product Description

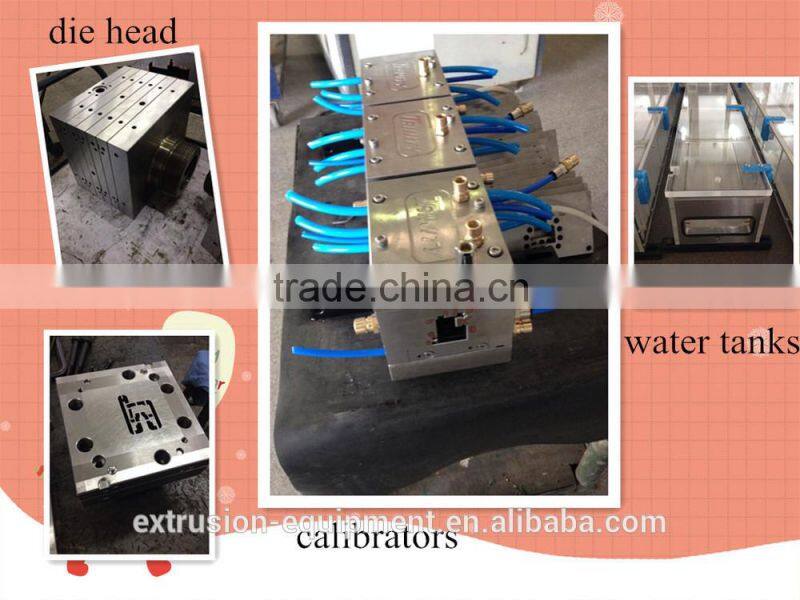

The whole wpc production line includes the extruder, extrusion tooling and downstream equipment.

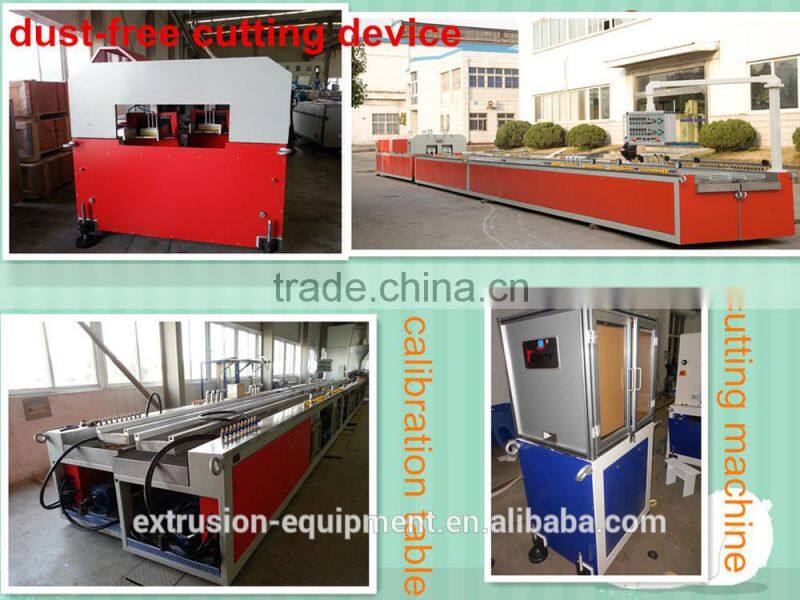

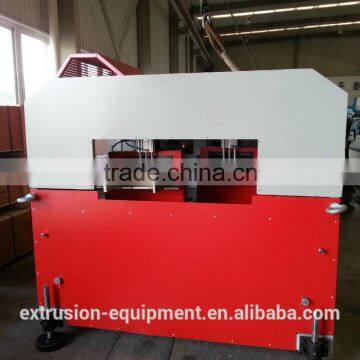

Zonfa Trinity develops three kinds of downstream equipment, including single strand, double strands and panel downstream equipment. With regard to the length of calibration table, there are 6m, 8m, 11m and 14m for your option. Advanced energy saving design, it can reduce energy consumption by 40%. Haul-off machine adopts Trinity unique lifting technology with the advantages of stable work and strong pulling force. Cutting uint has two options, saw cutting and dust free guillotine cutting. In accordance with customers' individual requirements, Trinity can provide energy saving and stable systemic design solution.

Our Services

1. Before the delivery, we will pretest the machine in our site and once get good results, we will tell you to deliver.

2. After the machine arrive your factory, if you need, we can send techincians to your site to test and assemble the machine.

3. We guarantee the quality of the machine for one year. And if any problems with the machine, we will repair it for free.

Also, if the components of the machine are broken, we will help you replace them.

Main parameters of the machine:

SS6 m Standard structure and parameters
No.	Description	Specification	Qty	Remark

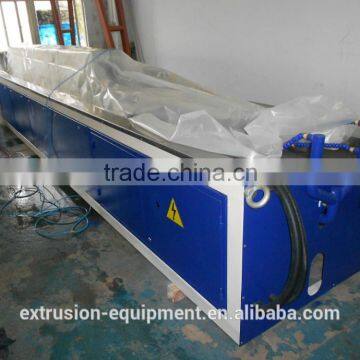

	Calibration Table
1	Vacuum Pump ( SIHI)	6kW	1
2	Vacum Cyclone Pump ( SIHI)	6kW	1
3	Water Pump (Groundfos)	7.5KW	1
4	Vacuum connector	ABA1/2"	10+8+8
5	Whirling vacuum connector	Ø50mm	4
6	Water connector	ABA1/2"	12+12+10
7	The diameter of general water inlet pipe	Ø50mm	1
8	The structure type of calibratoin table			Whole type
9	Up-down movement structure type of calibration table			clamping frame up-down movement
10	Structure type of clamping frame			"Pallet" type
11	Horizontal adjusting scope of clamping frame	10mm
12	Operation manner of control box			Cantilever type / Fold away
13	Structure type of water tank and water-air separation tank			Whole type
14	Extruder center height	1100mm
15	Calibration table length × width	6000 mm×1100 mm
16	Height adjusting scope	135mm
17	Adjusting scope of axial movement	0~800mm
18	Ajusting scope and requirement of lateral movement	30mm		Manual
19	Center distance between rails	320mm
20	2 Water filter to change		1 set

The extruder information:

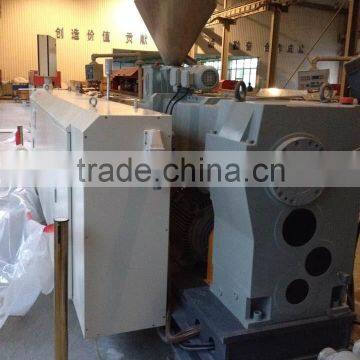

MODEL TT55/110C TWIN CONICAL SCREW EXTRUDER		ONE SET

Material:	PVC powder
Output:	120 Kg/H
POWER SUPPLY:	380 V/3 PHASE/50 HZ
1 Hopper:	Stainless steel fabricated hopper with material level view window and dumping gate. And fitted with a magnetic rack.
2 Extrusion unit:
Screw:	Big Dia.: 55mm, Small Dia: 110mm.
Screw structure:	New structure with high efficiency
Material of screw:	High quality alloy steel (38CrMoAla) and with gas nitrided hardened treatment.
Thickness of screw nitrided layer:	0.3~0.6mm
Hardness of screw surface:	HV740~HV940
Roughness of screw surface:	Ra<0.8
Barrel:	Standard
Feed inlet of barrel:	Forced feed inlet of grooved type with water cooling jacket.
Material of barrel:	High quality alloy steel (38CrMoAla) and with gas nitrided hardened treatment.
Thickness of barrel nitrided layer:	0.4~0.7mm
Hardness of barrel inner surface:	>HV860
Roughness of barrel inner surface:	Ra<1.6

3 Gearbox:
It is designed and made by adopting Germany technology. The gear wheels in reduction gearbox are made of high quality alloy steel (20CrMoTi) and with carbonized, smoothed treatment. The spiral coil cooling tube is installed inside the gearbox to prevent overheating of oil. The gear wheels in distribution gearbox are made of high quality alloy steel (38CrMoAla) and treated by gas nitrided. It has such characteristics as running smoothly and stably, compact design, high efficiency, a long service life with low noise level, etc.
4 Driving unit:	By AC. Siemens beide Motor
Power of A.C motor:	22 KW
Controller of A.C motor:	AC Frequency inverter- ABB
5 Feeding unit:	By AC Motor
Power of A.C motor:	0.37 KW
Controller of A.C motor:	AC frequency inverter
6 Die adaptor:	Made of alloy steel and socket for melt pressure sensor (1/2”-20UNF)
7 Heating zone:
Heating unit for barrel:	Made of copper fin and ceramic heating ring with stainless steel cover
Cooling unit for barrel:	By air blower 0.38KW/set
Quantity of barrel heating zone:	4
Quantity of barrel cooling zone:	3
Quantity of die adapter heating zone:	1
Quantity of die heating zone:	6
Power of barrel heating:	18 KW
8 Thermocouple:	K model
9 Machine frame:	Constructed by channel steel and square Steel of good quality welded with optimum design
Centerline height:	1100mm
10 Control cabinet:	Made of mid-carbon steel (A3)

Heating units controlled by imported temperature controller FUJI - Japan mounted on facial
The speed of extrusion and feeding can be adjusted synchronally or individually.
This extruder includes three auto- alarming function: a,Over-current prevention ; b,Optical-electronic protective device for dislocation of screw; c,Protective unit for oil lack in oil tank

The package:

Different types of downstream equipment:

calibration table	single downstream				double downstream
	HQSS6M	HQSS8M	HQSS11M	HQSS14M	HQSS8M	HQSS11M	HQSS14M
Vacuum Pump	1	2	3	4	4	6	8
Vacuum Cyclone System	1	1	1	1	2	2	2
Frequency Converter	2	3	4	5	6	8	10
Up-Down Adjustment Scope	900-1000				900-1000
Extrusion Center Height	1050-1150				1050-1150
Axial Adjustment Scope	800				800
Horizontal Adjustment Scope	±5				±5
Lateral Adjustment Scope	±15				±15
Length(mm)	6000	8000	11000	14000	8000	11000	14000
Width(mm)	1100				1400
Distance Between Rails	320				320+500
