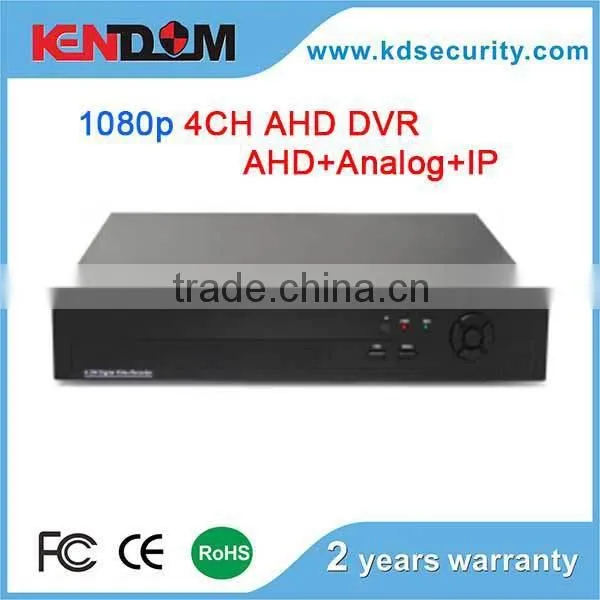

Kendom P2P Cloud function Support Onvif, 3G/WIFI 4CH AHD DVR 1080P Hybrid:2ch AHD+2ch IP/Analog dvr

Model

KD-AH6004-1H-C21

System

Main processor

Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Display

Operation interface

16 bit real color GUI interface support mouse operation

Display screen

(Take all analog input as an example, others are depended on the selected channel mode)

1/4/9 /16screen

Video

Image encode

H.264(High Profile)

Monitor quality

VGA:1080P ;HDMI:1080P

Playback quality

Max support 1080P under DVR and NVR mode;Max support AHD 720P under DVR mode:

Encode capability

16CH AHD 720P (DVR mode)

Decode capability

4CH AHD 720P (DVR mode)

Multi-mode video input

DVR mode :16*720P/8*720P/16*AHDL

HVR mode:4*720P+4*720P

NVR mode :4*1080P/1*720P+8*720P

Motion detection

Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)

Audio

Audio compression

G.711A

Record and playback

Record mode

Manual,alarm,motion detection,timing

Local playback

1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 720P playback synchronously

Video search

Time,date,event,channel search

Storage and back up

Space occupation

Video:CIF 4~5G/day*channel, D1 8~10G/day*channel               720P 20~30G/day*channel;
 audio:691.2MB/day*channel

Video storage

Local HDD ,Network

Back up mode

Network backup,USB portable HDD,USB DVD-RW

Interface

Video input

16CH BNC

Video output

1CH VGA,1CH HDMI

Audio input

4CH RCA

Audio output

1CH RCA

Alarm input

4CH

Alarm output

1CH

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485;support multi kinds of PTZ Protocol

USB port

2*USB2.0

HDD port

2 SATA(each max support 4TB)

Wireless port

3G,WIFI(extension via USB port)

other

Tour

Yes

Remote controller

Yes

Power

12V/3A

Dimension

375(W)*320(L)*45(H)mm
