Specifications
1.) 8CH HD NVR, 8CH 1080P/720P recording2.) Support HDMI&VGA output in Sync
3.) 4/8 Ch synchronous playback

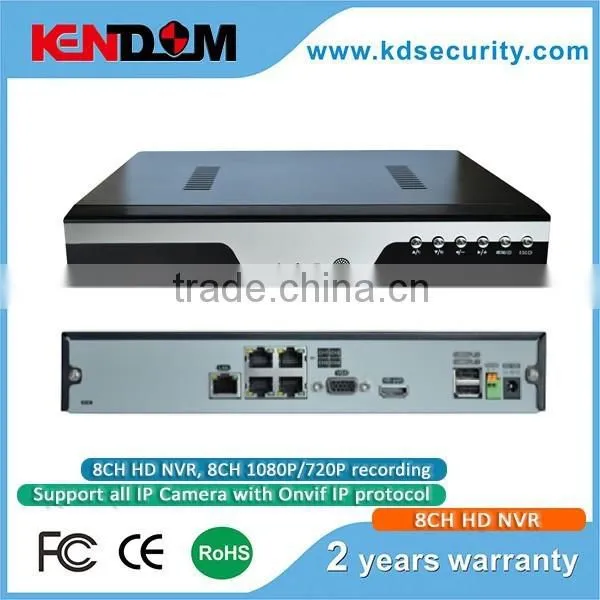

KD-NVR1008-1H
1.) 8CH HD NVR, 8CH 1080P/720P recording
2.) Support HDMI&VGA output in Sync
3.) 4/8 Ch synchronous playback
4.) Support all IP Camera with Onvif IP protocol.
5.) Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
6.) Support 4/8/16ch Audio and Alarm
7.) Support backup of HDD,U disk,USB,External DVD-RW and netwrok.
8.) Support 4 privacy zone
9.) Languages: Chinese,English,Franch,Italian,Spanish,Russian, etc.
Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources |
GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly |
ONVIF standard protocol(Onvif agreement with standard)can be connected with the front –end IPC protocol support onvif. |
Support Strong cloud service(specialized website for super cloud service:),one step to do remote control easily |
Support 8ch 1080P/8CH 720P recording. |
Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other. |
Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view |
Multiple record mode:Auto continuous,timing recording ,motion detection , trigger alarm recording mode |
Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play |
Support drag the progress bar can be targeted playback time directly |
Support Multiple channel playback (Support 1CH 1080P playback simultaneously, each channel can be enlarge to full screen) |
Powerful net service:support IE browser(built -in)and sub-control software to monitor and manage network focused on multiple DVR(can monitor 255 simultaneously) |
Strong network function:support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP authority,IP search,alarm center,etc,complete enclosure (WEB,CMS,SDK),to easily achieve interconnection. |
Supports remote surveillance up to 10 users simultaneously via the Internet Explorer web browser |
Supports Multiple backup mode: USB flash drive,USB hard disk and network backup |
Support pre-alarm recording (before 10 sec),not lose any suspicious screen |
Support two SATA HDD |
Support Mobile phone remote view by Symbian;Windows Mobile;Android system;Iphone;Blackberry. |
Support High-Definition VGA and HDMI(1080P) output. |
Support IR remoter controller |
Support twenty kinds of language. |
System auto recovery to power after power reconnected,and return to the pre-power-down state |
|
Video Compression Format |
H.264 |
Video Standard |
NTSC / PAL |
GUI OSD |
YES |
Video Input(BNC) |
8CH 1080P,8CH 720P |
Video Output(BNC) |
1CH VGA/HDMI output |
Audio Input/Output |
No |
Image Quality Setting |
Supper Best,Well,Very good,Well,Good Common |
Hard Disk Storage |
Support one SATA HDD, |
Alarm Input/Output |
No |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion detection/alarm |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device |
USB flash drive,USB hard disk,USB and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS ,FTP,NTP and UPNP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
NO |
USB Mouse |
YES |
Power Source |
DC 12V |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
325(W) x 52(H) x 230(D) |
