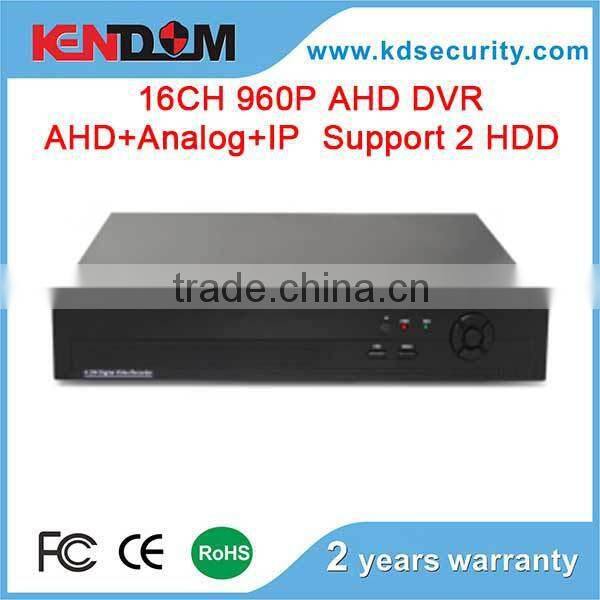

Professional 16CH AHD DVR IPC/Analog/AHD Camera Hybrid Standalone CCTV DVR 960P 16CH H.264 AHD DVR
Product Features:
16CH 960P AHD DVR
Recording: AHD+Analog+IP
AHD:16ch 96P realtime
Hybrid:8ch AHD+8ch IP/Analog
IP: 16ch 960P realtime
Support P2P Cloud function
Support: HDMI/VGA/Network port
Support: Onvif, 3G/WIFI
Offer free CMS software
Support mobile phone viewer
Support talkback function
Support backup of HDD,Udisk, USB, network etc.
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
Picture Show:
Technical Parameter:
|
Model |
KD-AH6016-2H-A31 |
System |
Main processor |
Industrial grade embedded micro controller chip Huawei HIS chipset Hi3531 |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
Display screen |
(Take all analog input as an example, others are depended on the selected channel mode) |
|
1/4/9 /16screen | ||
Video |
Image encode |
H.264(High Profile) |
Monitor quality |
VGA:1080P ;HDMI:1080P |
|
Playback quality |
Max support 1080P under DVR and NVR mode;Max support AHD 720P under DVR mode: |
|
Encode capability |
16CH AHD 720P (DVR mode) |
|
Decode capability |
4CH AHD 720P (DVR mode) |
|
Multi-mode video input |
DVR mode :16*720P/8*720P/16*AHDL HVR mode:4*720P+4*720P NVR mode :4*1080P/1*720P+8*720P |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
|
Audio |
Audio compression |
G.711A |
|
Record and playback
|
Record mode |
Manual,alarm,motion detection,timing |
Local playback |
1-4ch playback synchronously; Under the mode of DVR, Max support 4CH AHD 720P playback synchronously |
|
Video search |
Time,date,event,channel search |
|
Storage and back up |
Space occupation |
Video:CIF 4~5G/day*channel, D1 8~10G/day*channel 720P 20~30G/day*channel; |
Video storage |
Local HDD ,Network |
|
Back up mode |
Network backup,USB portable HDD,USB DVD-RW |
|
Interface |
Video input |
16CH BNC |
Video output |
1CH VGA,1CH HDMI |
|
Audio input |
4CH RCA |
|
Audio output |
1CH RCA |
|
Alarm input |
4CH |
|
Alarm output |
1CH |
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
|
USB port |
2*USB2.0 |
|
HDD port |
2 SATA(each max support 4TB) |
|
Wireless port |
3G,WIFI(extension via USB port) |
|
other |
Tour |
Yes |
Remote controller |
Yes |
|
Power |
12V/3A |
|
Dimension |
320(W)*265(L)*45(H)mm |
