Specifications
2000-8000BPH on 500ML PET bottle Carbonated Drink Filling Machine1.PLC:Mitsubishi, Siemes
2.SUS304/316
3.Up to 20,000bph

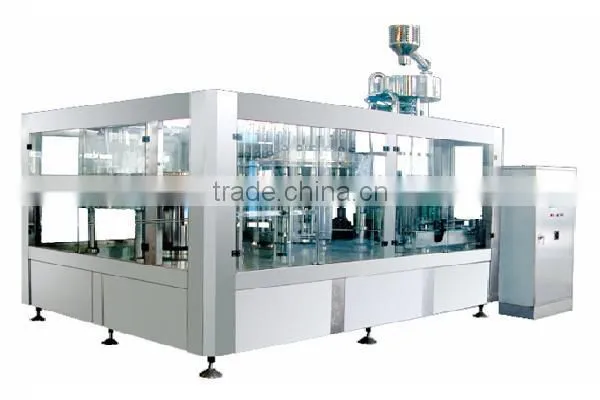

Carbonated Drink Filling Machine/ System can carry out washing bottle, carbonated filling and capping of one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements are adopting international famous products.
Features of Carbonated Drink Filling Machine/ System:
This equipment combines rinsing bottles, filling bottles and capping bottles together with PLC control. It is mainly used for plastic bottles with carbonated beverages and non-carbonated beverages.
Characteristic of Carbonated Drink Filling Machine/ System:
1. All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
2. Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
3. Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
4. Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
Model(GL) |
8-8-3 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-12 |
60-60-15 |
|
Capacity(BPH) |
1000-3000 |
5000-7000 |
10000 |
13000 |
13000-15000 |
18000 |
20000 |
|
Applicable bottle (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||||||
Pressure (kg/cm2) |
2~3 |
|||||||
power (kw) |
1.5w |
2.2w |
3kw |
4w |
7.5w |
9.5w |
12w |
|
Overall dimension (mm) |
1780 x1680 x2200 |
2460x1720 |
3100x2100 |
3500x2500 |
4600x1800 |
5200x4500 |
6500x4500 |
|
Weight(kg) |
2000 |
3500 |
4200 |
5500 |
6800 |
7600 |
9800 |
|
