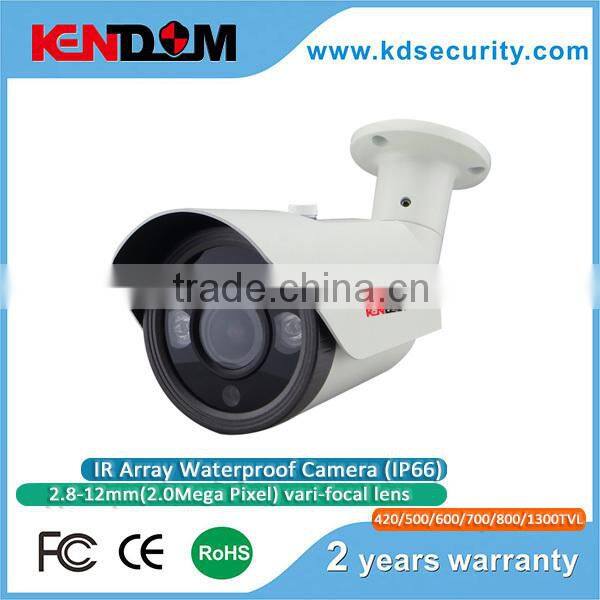

Special Model for Sony CCTV Camera 2pcs of Powerfull IR Array Led security camera 2.8-12mm(2.0MP) lens security camera system
Product Features:
1) CCD: 1/3” SONY CCD,
2) Resolution: 600/ 700/ 700WDR/ 800/ 1300TVL
3) Lens: 2.8-12mm varifocal lens,
4) Material: Aluminium alloy casing
5) IR Auto-open by CDS Control in Low illumination
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
Picture Show:
Technical Parameter:
Model |
KD-IW9022MV |
|||
Horizontal Resolution |
WDR 700TVL |
700TVL |
600TVL |
420TVL |
Effective Pixels (HxV) |
PAL:976×582 |
PAL:976×582 |
PAL:752×582 |
PAL:500×582 |
NTSC: 976x494 |
NTSC: 976x494 |
NTSC:768×494 |
NTSC:510×492 |
|
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"SONY 662/663 CCD |
1/3"Sony 810/811 CCD |
1/3"Sony 638/639 CCD |
1/3"Sony 632/633 CCD |
Digital Signal Processor |
SONY Effio-P DSP |
SONY Effio-E DSP |
Nextchip 2090 DSP |
Sony 3142 DSP |
Mini Illumination |
0.02lux(IR on) 0.00lux(IR off) |
0.02lux(IR on) 0.00lux(IR off) |
0.05lux(IR on) 0.00lux(IR off) |
0.01lux(IR on) 0.00lux(IR off) |
Lens |
2.8-12mm Vari-focal lens |
|||
IR LEDs |
2pcs of Powerfull IR Array Leds |
|||
Night Vision |
30-40M |
|||
OSD |
OSD |
OSD |
OSD |
- |
WDR |
WDR |
D-WDR |
D-WDR |
- |
DNR |
3D-DNR |
3D-DNR |
2D-DNR |
- |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On |
On |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto |
Auto |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW |
ATW |
Video Output |
1.0V P-P,75Ω |
|||
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
Suggest Power Adaptor |
DC12V/1A |
|||
Material |
Aluminium alloy |
|||
Dimension |
270(W) x101(H) x97(D)mm |
|||
Weight |
800g |
|||
Guarantee |
2 years |
|||
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
Analog Bullet Cameras
For more CCTV Cameras information,welcome to contact
Clark sales04 @ , Skype : Clark.kdsecurity
