Kendom shenzhen security analog camera cctv camera ahd with price list best selling in 2016
Ⅰ.Alarm Camera's advantages:
1. Frighten intruder: Designed to frighten intruder enter your place at night.
Strong LED light will irradiate the intruder enter your place at night
2. Motion detect: Designed motion detect function
3. Color Video: Get clearly color video if intruder enter at night
4. Warning: Warning signal will show on your monitor
5. Energy saving: Take it as energy saving lamp, as only people move it will open.
Ⅱ.How to use alarm Camera
1. The alarm camera’s LED light will open 20 seconds for self-test once connect the power, then close.
2. Then all operate steps like normal analog camera.
When the IR led open at dark environment, if any intruder enter, strong LED light will irradiate the intruder for 20 seconds, if he keep moving the strong LED light will always irradiate him.
3.Detect level: Set the detect sense level(distance): OSD menu—Motion Det (ON)—Detect Sense
CCD Sensor: (default is 120, you can adjust from 0 to 127)
If<120 detect sensitivity is low, detect distance is short.
If>120 detect sensitivity is high, detect distance is long.
CMOS Sensor: (default is 70, you can adjust from 0 to 99)
If<70 detect sensitivity is low, detect distance is short.
If>70 detect sensitivity is high, detect distance is long.
4.Tracking signal,
If your alarm camera has OSD cable, you can set the tracking signal shows on your monitor. OSD menu—Motion Det (ON)—Block Disp (ON)
5.Siren function:
If you your alarm camera have siren function, connect the siren to the OSD cable. When the white Leds switch on the siren will working, when the white leds switch off the siren will switch off.
Ⅲ.Applications
Places need to frighten intruder
Places need higher quality color video recording at night
Places need light and energy saving.
Specification:

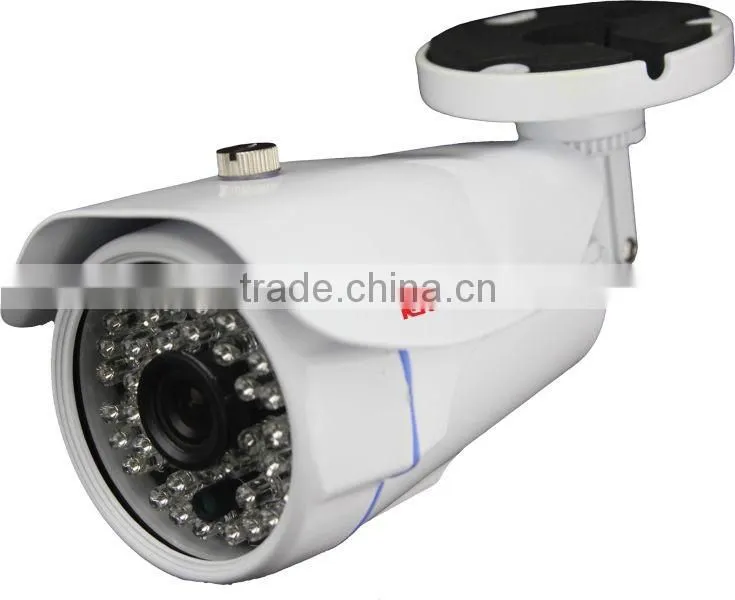

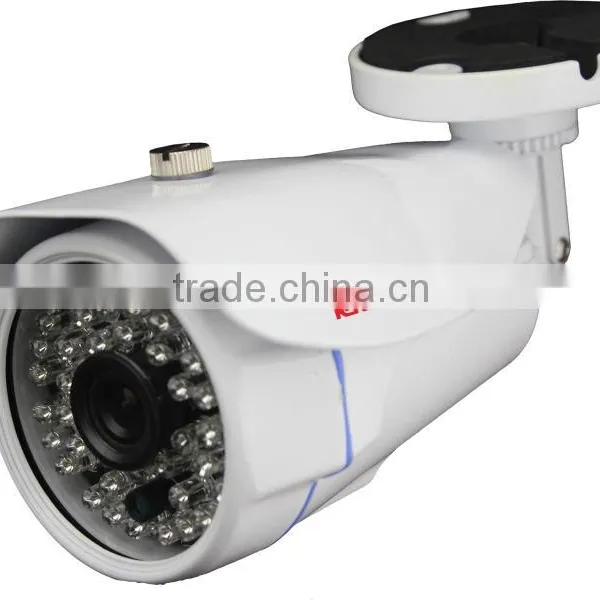

1.) Alarm Bullet Camera
2.) Lens: 3.6/6mm HD lens
3.) IR Leds: 28pcs IR leds
4.) White Leds: 28pcs white leds
5.) IR/White leds range: 30M
6.) Material: Metal
7.) Color: White
8.) Weight: 0.6kg
9.) Size:190(L)x108(W)x95(H) mm
Factory Models:
| KD-AC9056BF-AH11 | 1/4"H42+2431H+Kendom10IC | 1.0MP | ||
| KD-AC9056BF-AH12 | 1/4"AR0141+2431H+Kendom10IC | 1.0MP | ||
| KD-AC9056BF-AH14 | 1/3"AR0130+2431H+Kendom13IC | 1.3MP | ||
| KD-AC9056BF-AH15 | 1/3"SONY IMX238+2431H+Kendom13IC, Low Lux | 1.3MP | ||
| KD-AC9056BF-AH21 | 1/3"OV2710+2441H+Kendom20IC | 2.0MP | ||
| KD-AC9056BF-AH23 | 1/3"SONY IMX322+2441H+Kendom20IC, Low Lux | 2.0MP | ||
