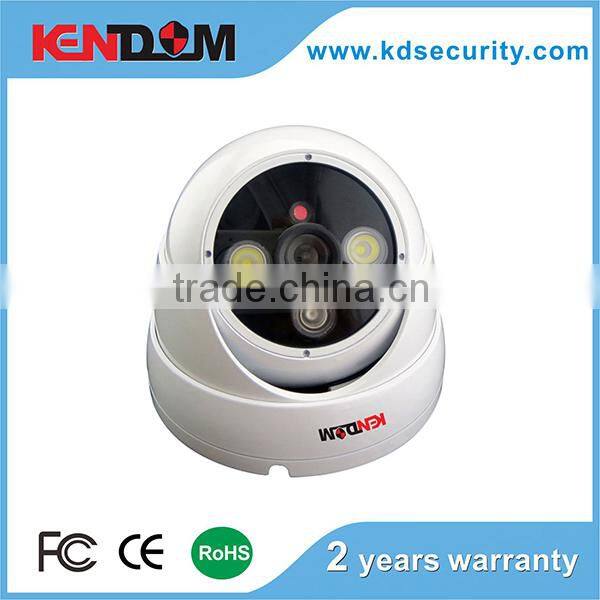

Best price cctv camera ahd cmos sensor CE,FCC,RoHS alarm dome camera
1.Alarm Camera's advantages:
1. Frighten intruder: Designed to frighten intruder enter your place at night.
Strong LED light will irradiate the intruder enter your place at night
2. Motion detect: Designed motion detect function
3. Color Video: Get clearly color video if intruder enter at night
4. Warning: Warning signal will show on your monitor
5. Energy saving: Take it as energy saving lamp, as only people move it will open.
2.How to use alarm Camera:
1. The alarm camera’s LED light will open 20 seconds for self-test once connect the power, then close.
2. Then all operate steps like normal analog camera.
When the IR led open at dark environment, if any intruder enter, strong LED light will irradiate the intruder for 20 seconds, if he keep moving the strong LED light will always irradiate him.
3.Extra use, Set the detect sense level(distance): OSD menu—Motion Det (ON)—Detect Sense (default is 120)
If<120 detect sensitivity is low, detect distance is short.
If>120 detect sensitivity is high, detect distance is long.
4. Extra use, if your alarm camera has OSD cable you can set the tracking signal shows on your monitor. OSD menu—Motion Det (ON)—Block Disp (ON)
3.Product Features:
1.) Alarm Camera
2.) Sensor: SONY CCD,
3.) Alarm DSP: designed by Kendom
4.) Resolution: 600/700/800TVL,
5.) Leds: 2pcs powerful led lamps,
6.) IR Leds: 2pcs powerful IR led(new),
7.) Light range: 10-20 meter,
8.) Lens: 3.6mm / 6mm fixed lens,
9.) Material: Aluminium Alloy
4.Applications
Places need to frighten intruder
Places need higher quality color video recording at night
Places need light and energy saving.
5.Technical Parameter:
Model |
KD-AC1036DF |
|||
Horizontal Resolution |
800TVL |
700TVL |
600TVL |
420TVL |
Effective Pixels (HxV) |
PAL:976×582 |
PAL:976×582 |
PAL:752×582 |
PAL:500×582 |
NTSC: 976x494 |
NTSC: 976x494 |
NTSC:768×494 |
NTSC:510×492 |
|
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"SONY CCD |
1/3"SONY CCD |
1/3"SONY CCD |
No |
Digital Signal Processor |
Kendom 03 IC |
Kendom 02 IC |
Kendom 01 IC |
No |
Mini Illumination |
0.03lux(IR off) 0.00lux(IR on) |
0.05lux(IR off) 0.00lux(IR on) |
0.05lux(IR off) 0.00lux(IR on) |
No |
Lens |
3.6/6.0mm fixed lens |
|||
White LEDs |
2 PC 45miu white Led Lamps |
|||
IR LEDs |
2 PC 42miu IR Array Led |
|||
IR Range |
10-20Meter |
|||
White Led Range |
10-20Meter |
|||
IP Rate |
IP65 |
|||
Sensitivity Level |
0~127 |
0~127 |
0~127 |
No |
OSD |
OSD |
OSD |
OSD |
No |
WDR |
D-WDR |
D-WDR |
D-WDR |
No |
DNR |
3D-DNR |
2D-DNR |
2D-DNR |
No |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On/Off |
No |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto/Manual/Off |
No |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW/Manual/Auto |
No |
Video Output |
1.0V P-P,75Ω |
|||
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
Suggest Power Adaptor |
DC12V/1A |
|||
Dimension |
130(L) x130(W) x110(H)mm |
|||
Weight |
0.75kg |
|||
The picture:
The camera effect picture:
