sand drum scrubber washer
Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.
Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.
Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.
New designed sand drum scrubber washer : grizzly feeding hopper+ drum scrubber washing machine+vibration screen+water pump+ diesel generator
this set sand drum scrubber washer is about 50T/H processing capacity, it is suitable for washing and separating alluvial gold with clay/ mud/sand/alluvial coltan/tin, the drum scrubber washing machine is for washing clean the clay and sand, vibraiton screen is for separating different size particles.
Detail specification of sand drum scrubber washer as below:
1. Feeding hopper: with grizzly bar to remove big stones.
2. Rotary drum scrubber: 50T/H capacity, with diameter 1.2meter, length 4.0meter. with water spray device insider scrubber, with iron steel linning plates, rubber wheel driving.
3. Vibration screen: with two layer screen, high manganese steel material, can make the mesh size according to your request, PU material screen is available.
4. Water pump: supply water for the rotary drum scrubber and vibration screen.
5. Diesel generator: to provde power for the whole plant.
We can make this set machine capacity according to your requst, such smaller one 20-40T/H, or big capacity 100tph.
Features of sand drum scrubber washer :
-Good function of washing clay, screening ores.
-High production capacity ( can be from 10T/H to 180T/H) & efficiency.
-Low operating cost, easy maintenance, low noise.
-The length &diameter of drum unit, screen mesh, layer quantity of
-screen can be customized.
-Can be make mobile type or stationary type.
Specifications for sand drum scrubber washer :

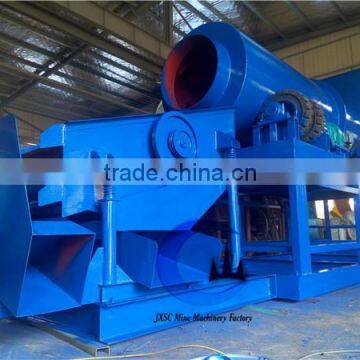

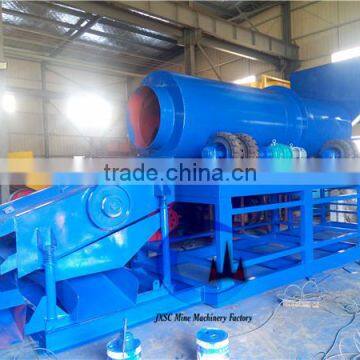

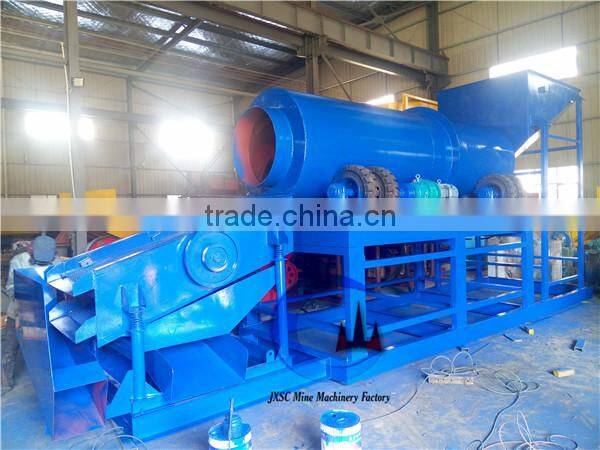

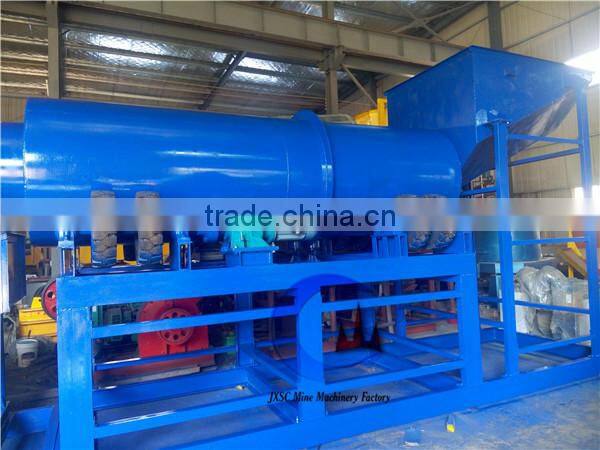

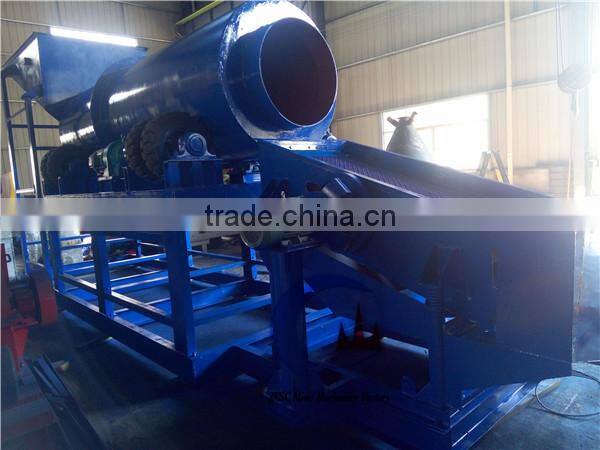

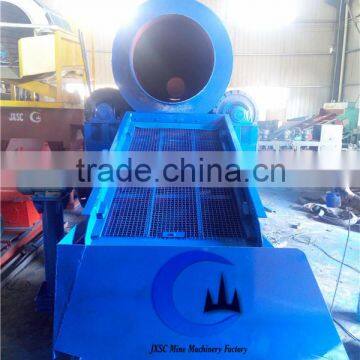

Detail pictures of sand drum scrubber washer :
Some parts of sand drum scrubber washer can be made different materials, detail information as below:
Screen Material:
1. High manganese steel: normal material
2. PU material: wear-resistance, long life time, corrosion resistant, splicing technology, replacable,easy to replace.
3. Stainless steel material.
Linning Plate:
In order to increase the washing effect, we always put linning plates insider of the drum scrubber part, it can be made below two kinds material:
1. High manganese steel: normal material, can’t be replaceable.
2. Natual rubber: wear-resistance, long life time, corrosion resistant, replacable, easy to replace.
Transmission way:
1. All natual rubber wheel driving
We have many other designed sand drum scrubber washer with different processing capacity, pls check below picture:
We sincerely provide below services:
-Mining project processing consulting.
-Design and draw flowchart.
-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.
- Providing whole processing plant equipments.
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact us:
