2), Manufacturing according to the ISO9001:2008 quality control system guidelines.
3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.
4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!
Our laboratory series mining equipment are mainly include:
Lab crusher,
Lab ball mill,
Lab grinder miller,
Lab sampling pulveriser,
Lab flotation cell,
Lab shaking table,
Lab spiral chute,
Lab magnetic separator,
Lab screener and classifier,
Lab crusher divider,
Lab disk vacuum filter

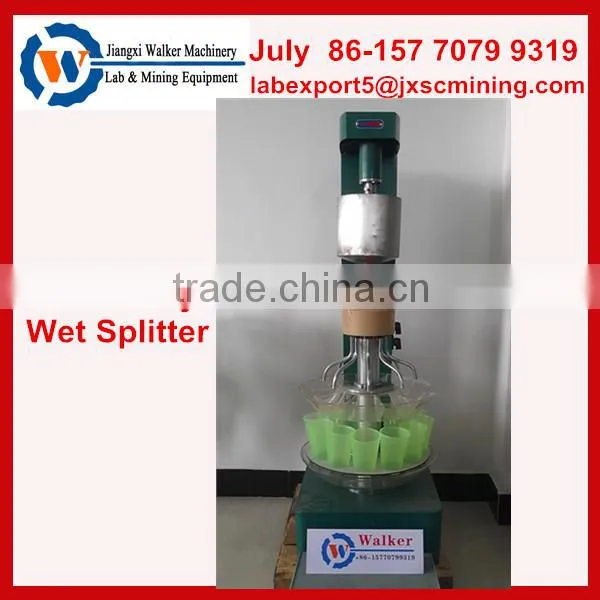

--- Hot Sell Wet Splitter,Lab Wet Sample Splitter from China Reliable Supplier
Lab Wet Splitter Application:

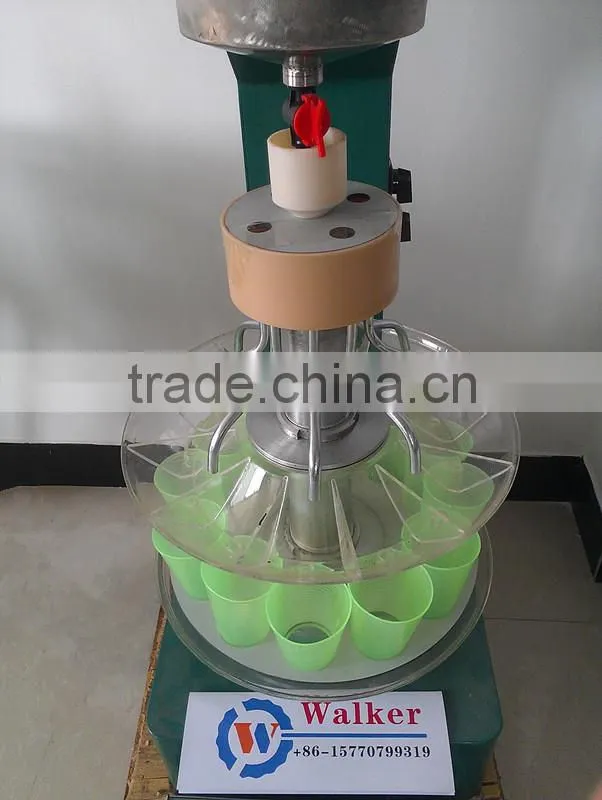

New model XSHF2-3 Wet Splitter is applicable to labs for geological, metallurgical, building material, coal and other industries for ore slurry reduction and wet sampling for product tests. Minor representative samples in terms of solid content, particle size fraction and chemical composition can be made by the splitter.
Lab Wet Splitter Structure:
The main parts of XSHF2-3 Wet Splitter are: (1) feed hopper; (2) slurry conditioning drum; (3) slurry distributing part; (4) slurry intercepting part; (5) slurry gathering and containing part; (6) lathe bed; (7) control switch for slurry conditioning drum; and (8) control switch for distributor. The plate distributor rotates counterclockwise.
1. Structure of Transmission System
The moving system of splitter transmits slurry in two ways: (1) stirring transmission and (2) distribution transmission, both of which are driven by one single motor.
(1) The motor for stirring transmission feeds slurry to the driven shaft through belt pulley, getting the stirring impeller to rotate at constant speeds.

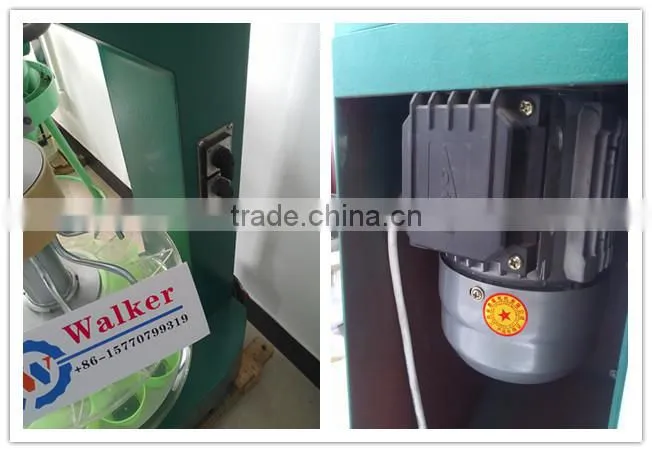

(2) The distributing transmission system is directly driven by high-precision reducing motor imported from Germany, which gets the distributor to operate counterclockwise at a constant speed.
2. Construction Type of Main Parts
(1) The electric switch and operating switch are installed on the right of lathe bed.
(2) The gear box is directly connected with the motor; and the distributor is linked to the transmission shaft through the right-hand thread.
(3) The bottom of machine base is equipped with four legs. The adjustable screw thread pair is used to adjust its level.

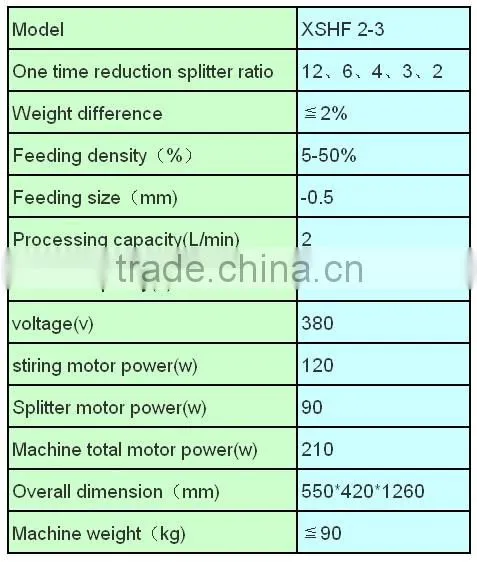

Lab Wet Splitter Specifications:
Lab Wet Splitter Splitting Principle:

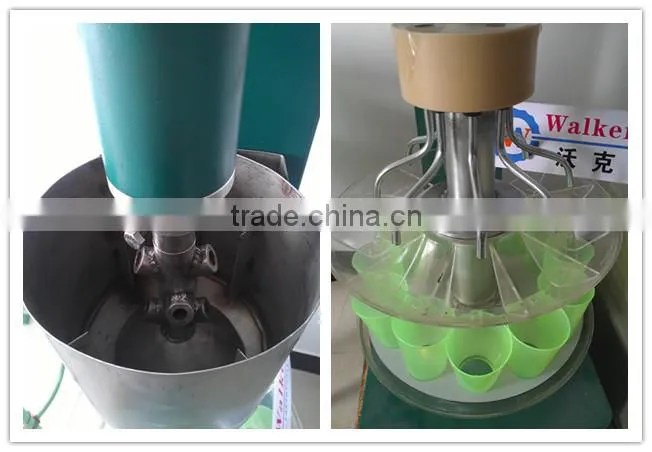

After mixed up through the slurry conditioning drum, the slurry is fed into the hopper and then flows into the slurry distributor with equipartition cone. The distributor is one that rotates at constant speed. When passing it, the slurry is divided into eight equal parts, and then evenly fed into the intercepting hopper. There are 12 hoppers in total, each with a radian of 30° (360°/12) so as to ensure the amount of slurry intercepted in each hopper in unit time is equal. Therefore, with wet splitter, slurry splitting can be finished and representativeness of samples in solid content, grain composition, and chemical composition can be ensured.

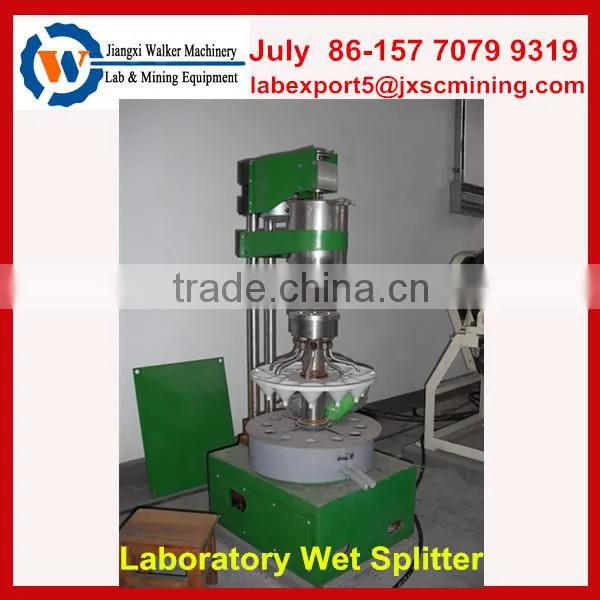

WALKER other type Lab Wet Splitter:

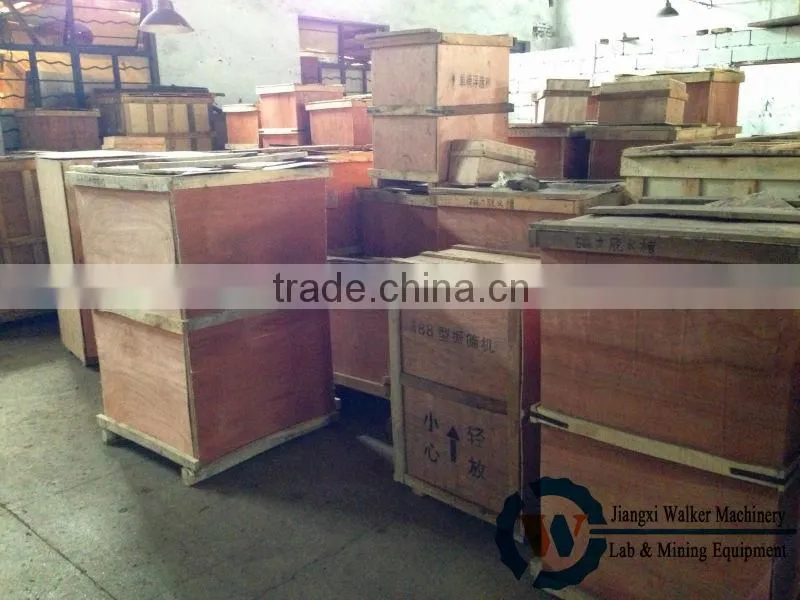

For package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

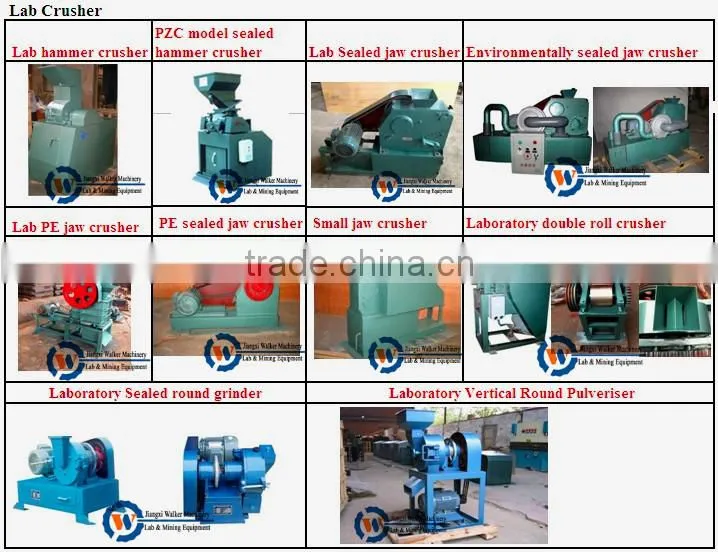

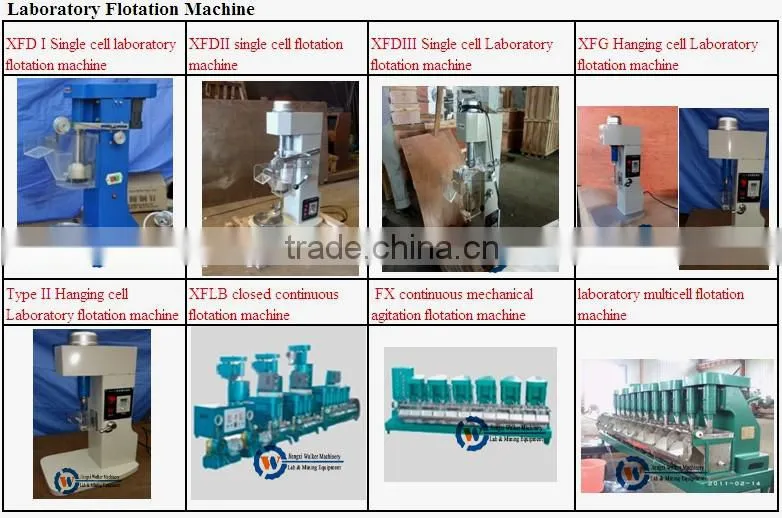

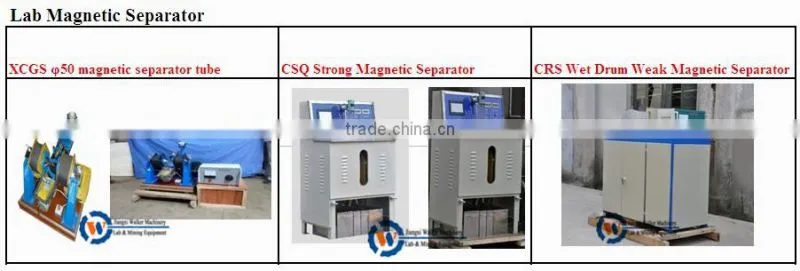

Jiangxi WALKER other hot selling Laboratory Mining Equipment for your choice:
If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
