Professional Manufacturer Iron Ore Flotation Machine,iron Ore Testing Separator in Lab

2), Manufacturing according to the ISO9001:2008 quality control system guidelines.

3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.

4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!

Our laboratory series mining equipment are mainly include:

Lab crusher,

Lab ball mill,

Lab grinder miller,

Lab sampling pulveriser,

Lab flotation cell,

Lab shaking table,

Lab spiral chute,

Lab magnetic separator,

Lab screener and classifier,

Lab crusher divider,

Lab disk vacuum filter

--- professional manufacturer iron ore flotation machine,iron ore testing separator in lab

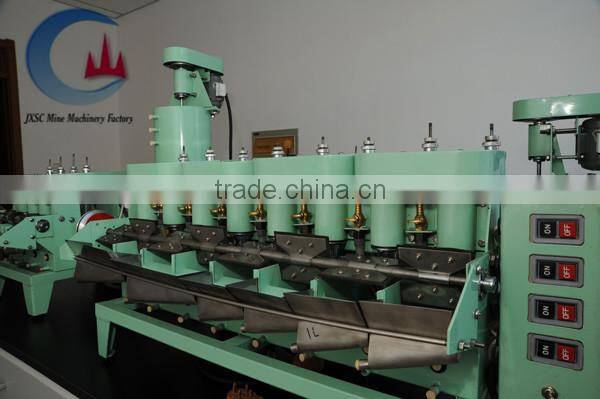

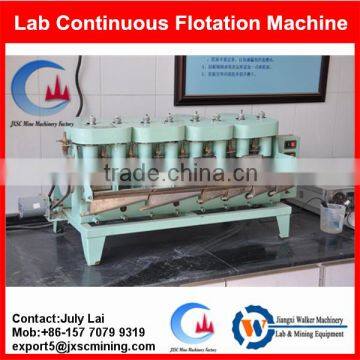

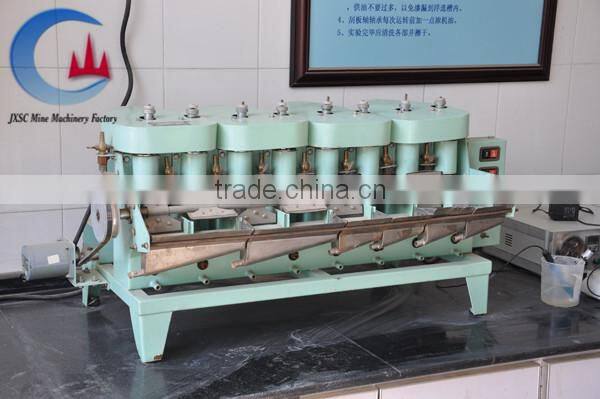

Application of Laboratory Miniature Continuous Flotation Machine:

Lab-used Miniature Continuous Flotation Machine is applied in test of continuous flotation of minor representative samples with its test result being able to represent the results of lab. and pilot plant tests for individual unit in a small close circuit and making available mineral processing indexes for lab. and pilot plant production.

XFLB Miniature Continuous Flotation Machine is self-suction agitated continuous flotation machine with no need or need of small amount of auxiliary equipment ,and configured equipment convenient and adjustable. It can be used for conducting tests on non-ferrous , ferrous and non-metallic minerals.

Equipment Composition of Laboratory Miniature Continuous Flotation Machine:

Slurry storage drum: 1 set

Agitating drum: 2 sets

micro reagent feeding machine: 1 set

squeegee pump: 2 sets

Continuous flotation machine: 1 liter 8 cells 1 set; 0.75 liter 4 cells 1 set; 0.5 liter 2 cells 1 set.

Structure of Laboratory Miniature Continuous Flotation Machine:

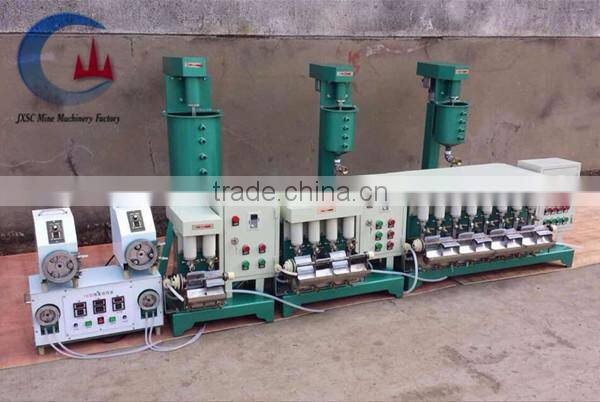

Laboratory XFLB continuous flotation machine are mainly composed of slurry storage drum, agitating drum, micro reagent feeding machine, squeegee pump, and continuous flotation machines of 1 liter, 0.75 liter, and 0.5 liter.

The slurry storage drum is used to store the already grinded and conditioned slurry which does not precipitate through the agitation of impeller.

The agitating drum is agitated through the rotation of wheels to keep the slurry even. The slurry flows to the agitating dram and flotation machine from the slurry storage drum. The change of its flow is realized through the change of flow area.

Features of Laboratory Miniature Continuous Flotation Machine:

Such continuous flotation machine has characteristics such as strong suction capacity and large aeration quantity. The flow of slurry and froth products and suction of air are realized through the rotation of impeller. In case of middling return caused by negative pressure, squeegee pump can be added according to actual conditions. Extension tube is needed for the adjustment of liquid level. Change the length of extension tube and the height of liquid level can be adjusted. It is easy to make adjustment without any blockage.

The reagent feeding machine supplies suction supporting agent, foaming agent, and regulating agent for flotation purpose.

Note: The whole machine includes: Slurry storage drum: 1; agitating drum: 2; micro reagent feeding machine: 1; squeegee pump: 2; continuous flotation machine: 1 liter 8 cells 1; 0.75 liter 4 cells 1; 0.5 liter 2 cells 1. The user shall apply for other combination of such whole machine.

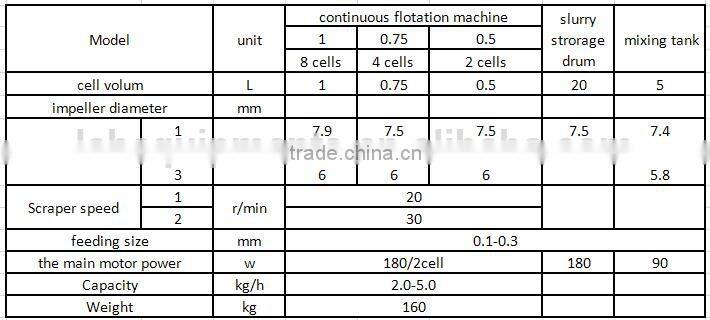

Specifications of Laboratory Miniature Continuous Flotation Machine:

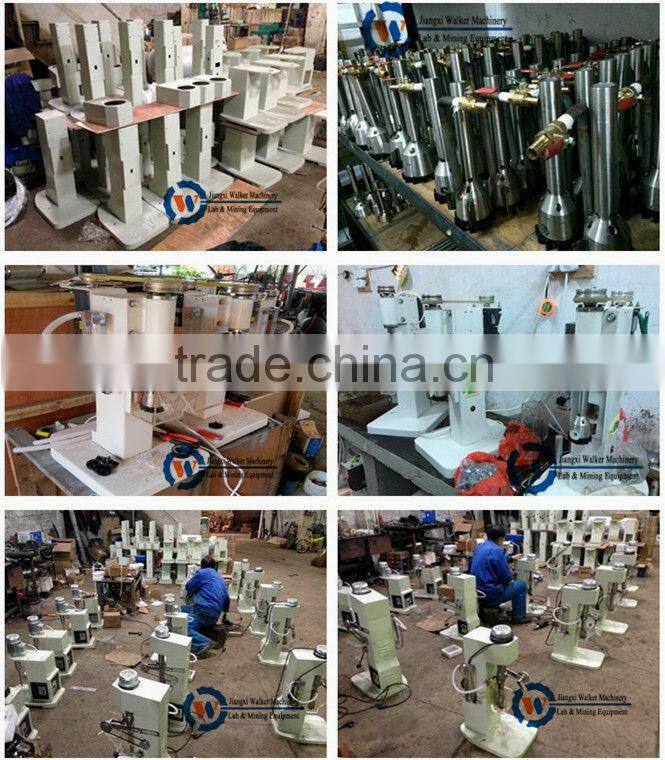

Workshop of JXSC Laboratory Flotation Machine:

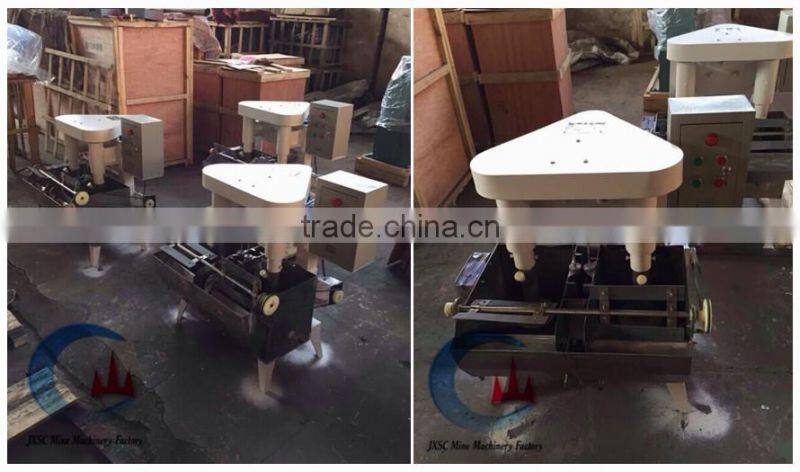

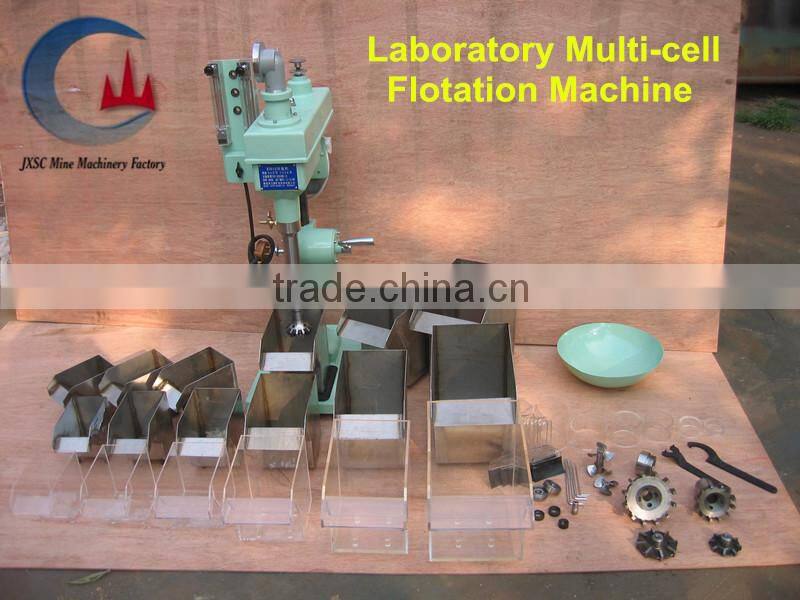

Jiangxi WALKER other hot selling Laboratory Flotation Machine for your choice:

If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
