mini grinding machine,roll crusher laboratory for Lime stone,Dolomite crushing

2), Manufacturing according to the ISO9001:2008 quality control system guidelines.

3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.

4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!

Our laboratory series mining equipment are mainly include:

Lab crusher,

Lab ball mill,

Lab grinder miller,

Lab sampling pulveriser,

Lab flotation cell,

Lab shaking table,

Lab spiral chute,

Lab magnetic separator,

Lab screener and classifier,

Lab crusher divider,

Lab disk vacuum filter

--- mini grinding machine,roll crusher laboratory for Lime stone,Dolomite crushing

Application of roller crusher, lab double roll crusher:

Small size double roll crushers applicate on mining, metallurgy, cement, geology, construction materials, chemical industry, electric industry, research unit laboratory sample crushing.

It is usually used in middle and fine crushing stage to crush medium hardness materials including limestone, Iron ore, furnace slag, coke, coal, steel slag, salt, shale, good used in all kinds of ore, stone, rock fine crushing.

Structure & working principle of  roller crusher, lab double roll crusher:

Laboratory Double Roll Crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc. Discharging size adjustment: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts. When the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite, gasket device is through the quantity or thickness to adjust the materials size.

When roll crusher adding gaskets the gap between wheels become large, when reducing gaskets the gap between wheels become small, so the discharging size becomes small. Driving structure is two motors through triangle belt drive to grooved pulley which drag roller rotating according to relative direction. In crushing stage, material is broken by roll wheel; final product is discharged from chassis. For safety, transmission part should be installed safety guard according to actual situation.

Features of   roller crusher, lab double roll crusher:

1. Suitable to crushing high hardness or brittleness of materials.
2. Continuous finish the crushing and shrinking, to avoid error by manual operation.
3. After the material shrinking, the sample with representative.
4. Sealed design, without dust pollution, easy to clean, environmental compliance.
5. Just placed on level ground, working without fixed base.

Specifications of   roller crusher, lab double roll crusher:

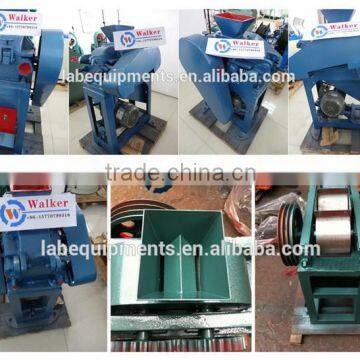

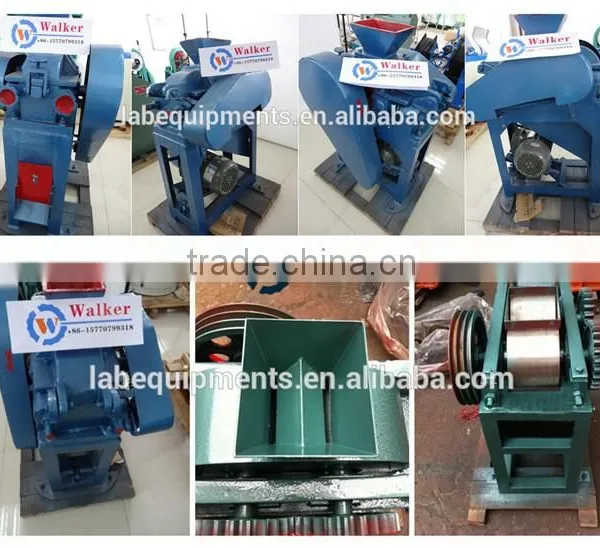

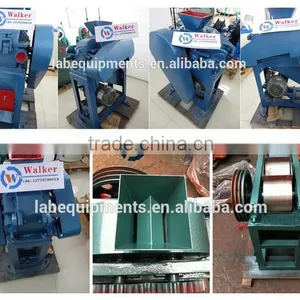

Details of   roller crusher, lab double roll crusher:

Walker work shop of   roller crusher, lab double roll crusher:

For package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

Jiangxi WALKER other hot selling Laboratory Mining Equipment for your choice:

Customers come to visit our factory:

If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
