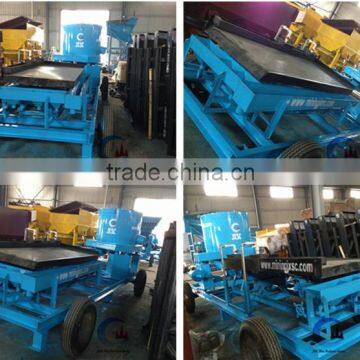

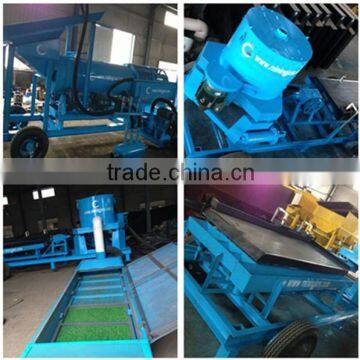

40T/H Complete Set Alluvial Gold Concentrator Gold Shaking Table

Description of 40T/H complete set alluvial gold concentrator gold shaking table  :

The mobile gold washing trammel scrubber is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it’s a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.

Application of alluvial gold concentrator gold shaking table  :

mobile gold washing rotary scrubber/ mobile gold trommel scrubber/ mobile durm scrubber washer /mobile trommel scrubber is mainly used for washing alluvial ores which is with much sticly clay, such as alluvial gold /coltan ore/ black sand/alluvial tin/alluvial chrome,ect.

Main structure of gold concentrator gold shaking table   :

1.     Drum : For washing the clay.

2.     Inner plate: separating the clay and ores.

3.     Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.

4.     Motor: electric or diesel according to your needs.

5.     Carrier rollers: For support the drum

6.     Gear, Reduction Box, coupling.

7.     Frame: Supporting the reduction box and motor.

we Jiangxi walker machinery company is a professional manufacturer of complete set mining machines for gold/tin/tungsten/chorme/zircon sand/coltan/tantalum,ect., also provide complete set small lab mining machines.

our main machines range include:  trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
