Help CenterLM6uu
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ZLC
Model Number:
IM6UU
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance 12x21x30mm Linear Ball Bearing LM12UUNegotiableMOQ: 1 -
12x21x30mm Linear Ball Bearing LM12UUNegotiableMOQ: 1
-
Linear Bearing LM12UUNegotiableMOQ: 1
-
LM12UUNegotiableMOQ: 1
-
LM4UU 4mm Linear Ball Bearing Linear Bearing Bush Bushing 4x8x12mm For 3D Printer CNC PartsNegotiableMOQ: 1
Brand Name
ZLC
Model Number
IM6UU
Place of Origin
Guangdong, China
Precision Rating
P
Product Description
| P/N | Linear bearing | ||
| Brand | OEM | ||
| Dimension | Standard | ||
| Precision | ABEC-1,3,5,7,9 | ||
| Type | Linear Ball Bearings | ||
| Clearance | C0, C1, C2, C3 Available | ||
| Lubrication | Oil Lubrication | ||
| Noise | Z1, Z2, Z3 | ||
| Material | AISI 52100 Chrome Steel | ||
| Package | Plastic Bag and White Box | ||

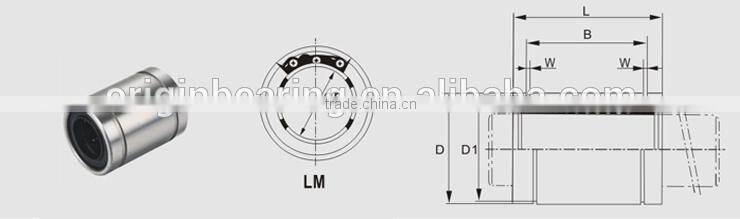

| Linear Guide Bushing | ||||
| Model No. | Main dimensions | |||
| Inscribed bore diameter | Outer diameter | Length | Mass | |
| dr | D | L | ||
| mm | mm | mm | G | |
| LM 3 | 3 | 7 | 10 | 1.4 |
| LM 4 | 4 | 8 | 12 | 1.9 |
| LM 5 | 5 | 10 | 15 | 4 |
| LM 6 | 6 | 12 | 19 | 8 |
| LM 8S | 8 | 15 | 17 | 11 |
| LM 8 | 8 | 15 | 24 | 16 |
| LM 10 | 10 | 19 | 29 | 30 |
| LM 12 | 12 | 21 | 30 | 31.5 |
| LM 13 | 13 | 23 | 32 | 43 |
| LM 16 | 16 | 28 | 37 | 69 |
| LM 20 | 20 | 32 | 42 | 87 |
| LM 25 | 25 | 40 | 59 | 220 |
| LM 30 | 30 | 45 | 64 | 250 |
| LM 35 | 35 | 52 | 70 | 390 |
| LM 40 | 40 | 60 | 80 | 585 |
| LM 50 | 50 | 80 | 100 | 1580 |
| LM 60 | 60 | 90 | 110 | 2000 |

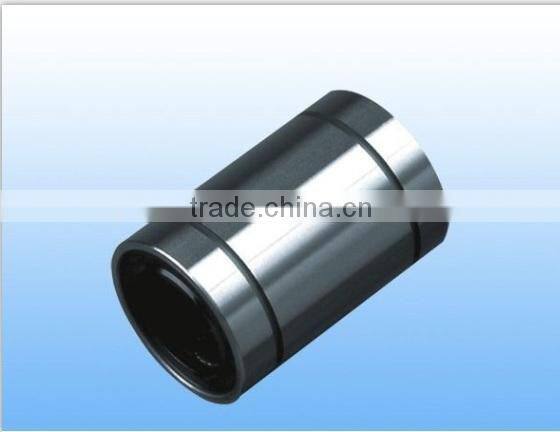

Product Picture
Application
Packing & Shipping
1.Industry package: Plastic paper+Kraft paper,20pcs or 10pcs/roll
2.Plastic tube: 20pcs/tube or 10pcs/tube
3.Single box: plastic bag+single box, OEM supply
4.Carton: Standard export carton(380* 240*180mm) or as your need.
5.Pallet: Wooden or Iron pallet with plastic film against moisture.
