slitting production line
| No. | Model | Raw Width(mm) | Thickness(mm) | After slitting width(mm) | Speed(m/min) |
| 1 | HX-400 | 100-400 | 0.3-2.0 | 20-380 | 10-120 |
| 2 | HX-500 | 100-500 | 0.3-2.0 | 20-380 | 10-120 |
| 3 | HX-700 | 120-700 | 0.3-2.0 | 40-580 | 10-100 |
| 4 | HX-800 | 120-800 | 0.7-3.5 | 40-750 | 10-100 |
| 5 | HX-1300 | 400-1300 | 0.8-5.0 | 60-1250 | 10-80 |
| 6 | HX-1600 | 600-1600 | 2.0-8.0 | 60-1550 | 10-80 |
| 7 | HX-1800 | 900-1800 | 3.0-10.0 | 90-1750 | 10-60 |
| 8 | HX-2050 | 1000-2000 | 4.0-12.7 | 90-2000 | 10-40 |
| 9 | HX-2200 | 1000-2200 | 8.0-16.0 | 90-2150 | 10-30 |
Layout plan of slitting production line
Commodity: slitting production line
1. Material: Hot/cold rolled coil, etc
2. Thickness: 0.3-16mm
3. Width:100-2200mm
4. Inner diameter: 508mm
5. Max outer diameter: 1600mm
6. Capacity: 15T(depends on client's demand)
General introduction of slitting production line
The whole line of the steel strip slitting machine can do uncoiling, slitting and recoiling works. slit the steel coil into narrower coils with any needed widths. The whole line mainly includes coil loading car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler, coil unloading car, hydraulic system and electrical control system, etc. It is mainly applied for processing cold/hot rolled carbon steel, silicon steel,stainless steel, and all the other kinds of metal materials with surface spreading.
Main components of slitting production line
Coil loading car
Decoiler
Straightener
Coill guider
Slitter
Edge scrap recoilers
Pinch devi, tension unit, separating device
Recoiler
Coil unloading car
Hydraulic system and electrical control system
Production process of slitting production line
Feed car--Uncoiler--Cutting head and Straightening--Pinch machine--Hydraulic shears--Pair guide--Disc Shear--Edge wire winders--Pre-dosing device--Winding--Unloading

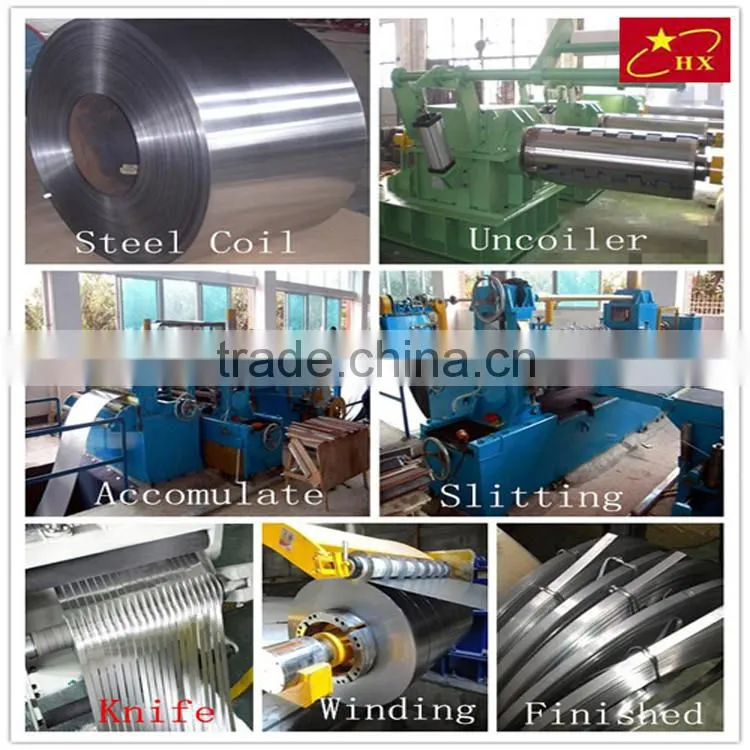

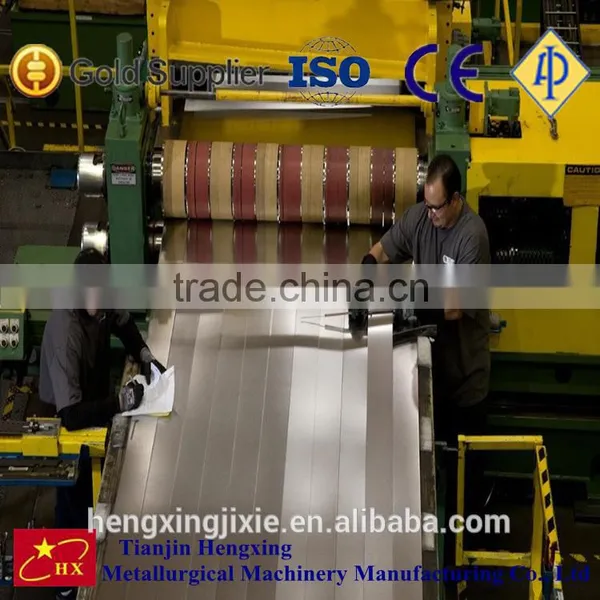

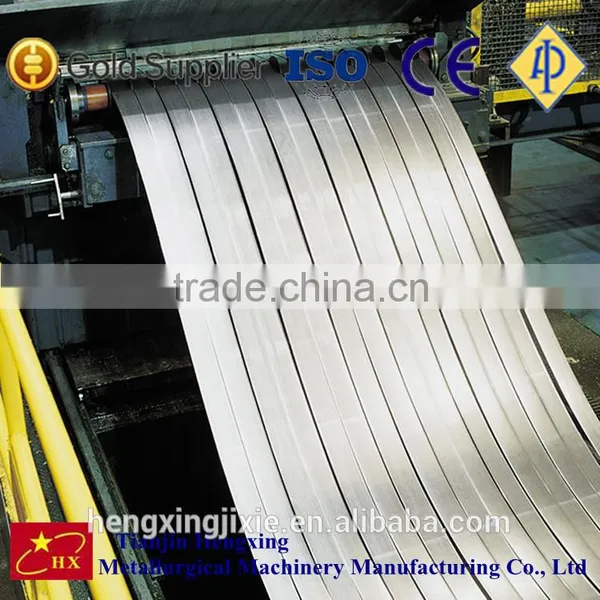

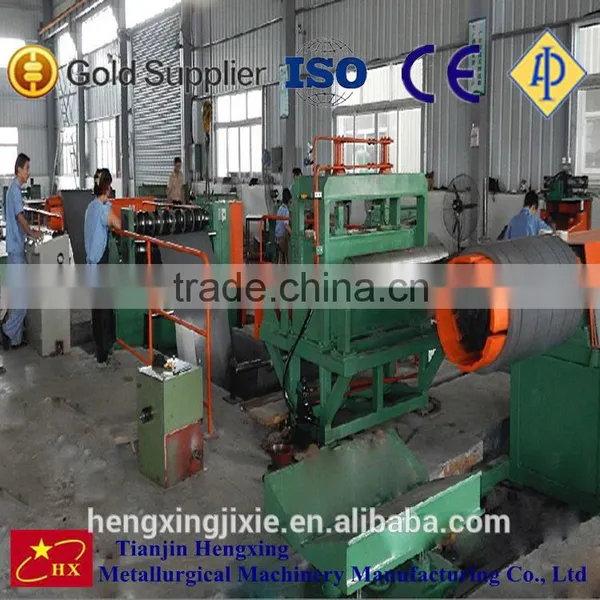

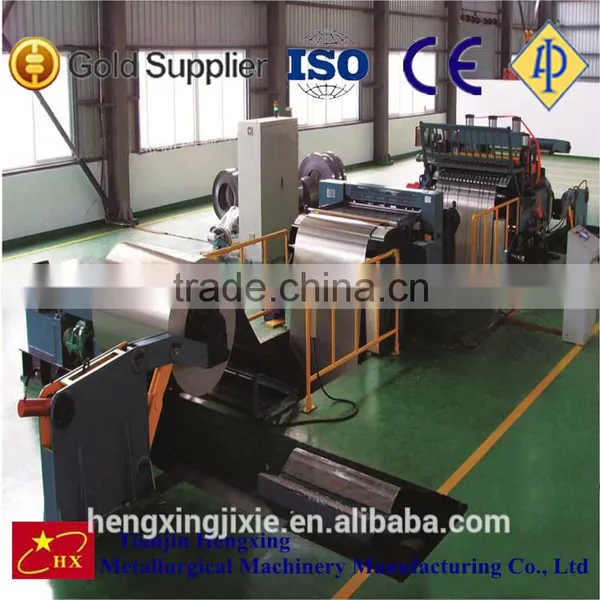

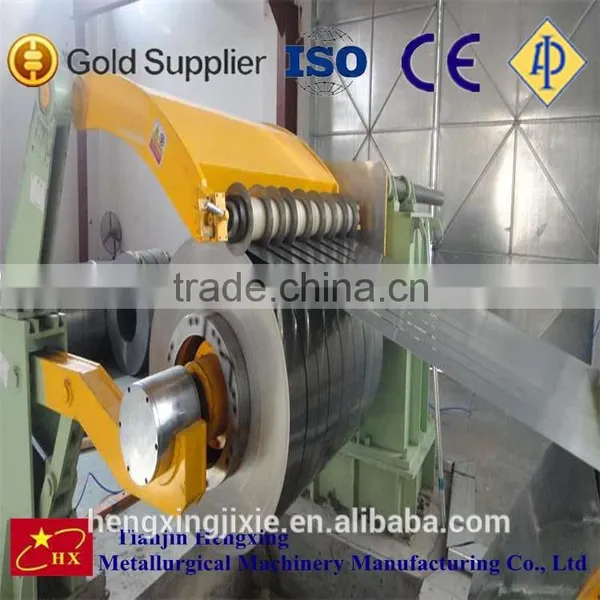

Main equipment pictures showcase

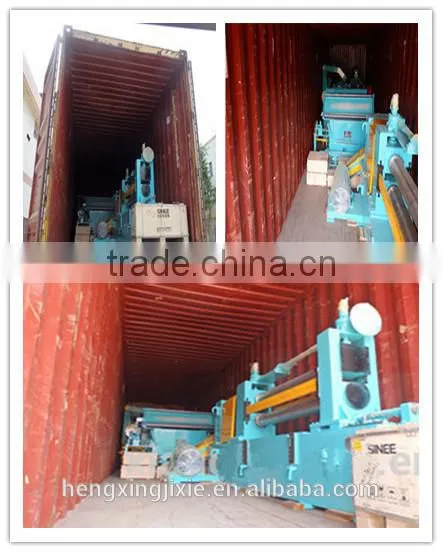

Shipping pictures
1. PLC steel sheet coil slitting machine line
2. Capacity: 400,000t/a
3. Delivery: About 90-100 days.
4. Packaging: According to the export packing standard or customer's requirement or according to customer requirements.
After-sell service
1.Guarantee: 1year
2.Useful life: 40years
One year quality guarantee, life guarantee repair. Within quality guarantee time, besides failures made by human mistake, repair parts will be supplied by free. After the quality guarantee time, only charge the cost of the spare parts.
Our engineer will help the customers to install and train.Our engineer can also work for your for several months to help you to improve the output, reduce the waste and cost.We offer the the pre-sell service- Design for your whole project.
We must try our best to satisfy you both on products and service.
Tianjin Hengxing Metallurgical Machinery Manufacturing Co., Ltd was established in 1998, Equipped with more than 100 sets of small, medium and large-size mechanical machining equipment, our company has 12 professional engineer and more than 200employees. We have an annual capacity to produce over 60 sets of equipment and more than 400 tons of welded tube rollers and cold formed rollers, the annual sales total amount about 35 million USD. Our factory have authentication ABS and API.We are the only machinery factory to get this authentication in Tianjin.
Our main products is: Steel Pipe Making Machine,HF pipe Machinery,ERW Pipe Machinery for forming Round/Square/Rectangular Pipe,Slitting Line,Hot-dip Galvanizing Line,Pipe Forming Rollers etc.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.

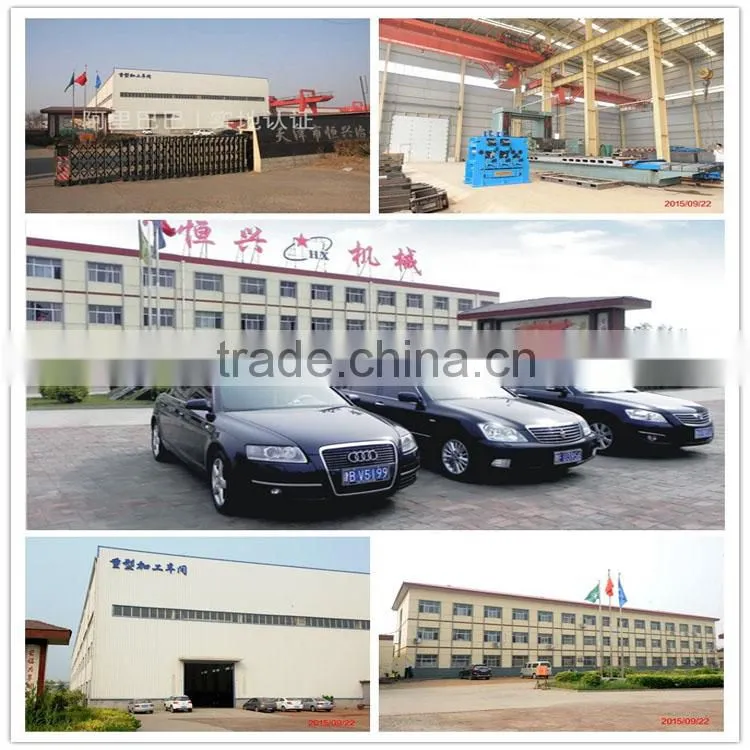

Factory and workshop photo
Exhibition photo
Q: Are you manufacturer?
A: Yes, we are manufacturer, we have our own machine factory and our own design team, our factory is established in 1998, we have proffesional engineer, and our boss is also a machine engineer. Welcome you cooperation with us.
Q: How go to your factory?
A: Proposal 1: Flight to Tianjin Airport, we will arrange to pick you up from airport to our factory or office.
Proposal 2: Flight to Beijing Airport, then by High speed train from Beijing South station to Tianjin South station, we will arrange to pick you up from south station to our office or factory.
Q: What is your machine advantage?
A:1) Our machines are manufactured from best materials. Steady, durable and long life.
2) Automatic control, easy to operate.
3) Easy to replace the moulds, save working hour and increase efficiency
4) Lower noise
5) Our competitive price will let you beat your competitor in your market.
Q: What details you need before you make technical proposal?
A: The steel pipe material, width and thickness range. Or you can send me the drawing of the machine and your special requirement.
Q: Why should I choose you?
A: We have professional engineer to design the machine, we can guarantee our high quality will satisfied with you. Our long time and high effciency after-sales service can let your mind at ease.
Steel Coil /Electrolytically Chromium Coated Steel Tape Slitter Machine
Round/Square/Rectangular Welded Pipe Making Machine
Hot dipped galvanized line for pipe -- World technology machinery
Steel pipe forming machine
Thanks for your visit. If there is any problem, please feel free to let me know directly, I will do my best to assist you. Welcome to visit our factory.
