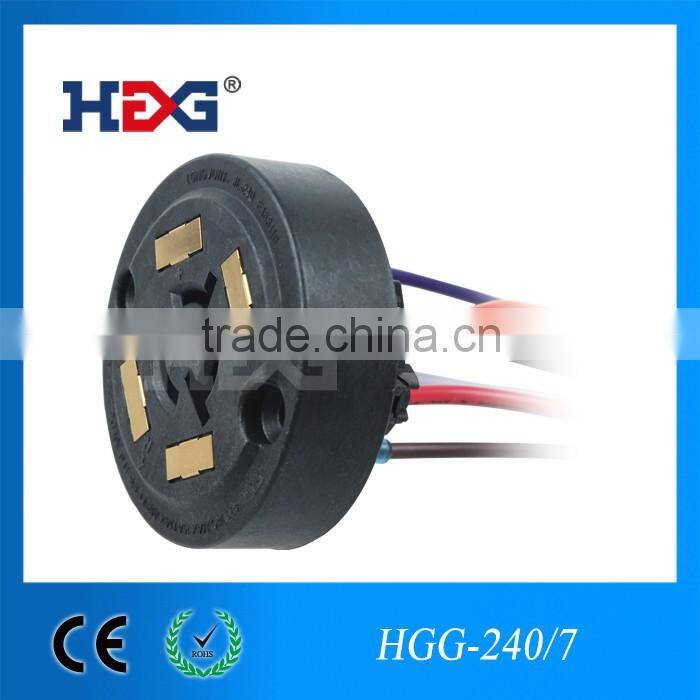

ANSI C136.41 Twist-lock Receptacle For Twist-lock Photocontrol For LED Street Light
1. Conforms ANSI C136.41 |
2. cRUus certificates under UL file E188110 |
3. 4 gold-plated low voltage pads on the top surface to fit photocontrol, has ANSI C136.41 conforming spring contacts, and offers 4 corresponding wires at rear back for signal connection. |
4. 360 degree rotation limiting. |
5. The mechanical installation can be simply completed with 2 screws. |
| Item No. | HGG-240T |
| Power Volt Range | 0~480VAC |
| Rated Frequency | 50/60 Hz |
| Power Loading | 15A max. / AWG#16: 10A max. |
| Signal Loading | 30VDC, 0.25A max. |
| Ambient Temperature | -40℃ ~ +70℃ |
| Receptacle | UV stabilized Polycarbonate (UL94 5VA) |
| Power Contact | Solid Brass |
| Signal Contact | Nickel plated Phosphor Bronze, Gold plated |
| Gasket | Thermal Elastromer (UL94 V-0) |
| Power Lead | 14AWG, AWM1015 |
| Signal Lead | 18AWG, AWM1015 |
| Leads | 12'' |
| Overall Dimensions (mm) | 64Dia.x 38 |
1. Our market researches help you to analyse your market before offering you the competitive price and suitable quality. |
|
2. We confirm with you about all the details before we proceed the production,Professional QC will keep the whole production in eyes;Quality inspection and loading are performed in every order. |
|
3. We keep track of your selling.We improve our products and service by listening to the comments from you. We are trying to be your life-partner. |
| 1. Your inquiry related to our products or prices will be replied in 24hrs. |
| 2. Well-trained and experienced staffs to answer all your enquires in fluent English |
| 3 .OEM&ODM, any your customized lightings we can help you to design and put into product. |
