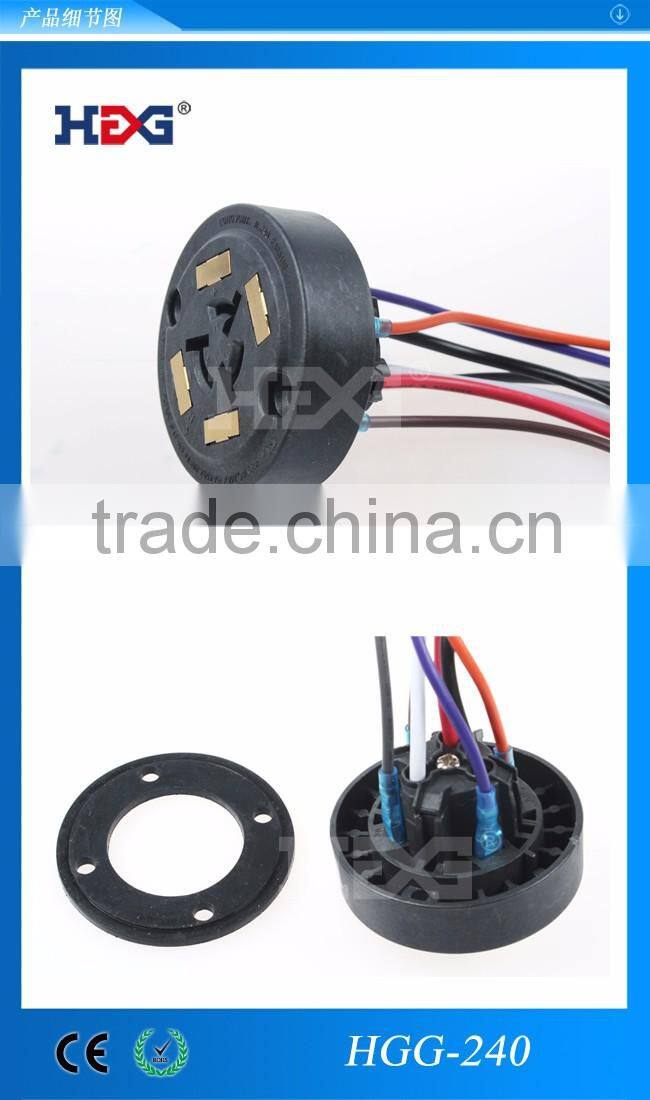

7 Pin Waterproof Receptacle Twist-lock Photo Control Receptacle for street light
1. Conforms ANSI C136.41 |
2. cRUus certificates under UL file E188110 |
3. 4 gold-plated low voltage pads on the top surface to fit photocontrol, has ANSI C136.41 conforming spring contacts, and offers 4 corresponding wires at rear back for signal connection. |
4. 360 degree rotation limiting. |
5. The mechanical installation can be simply completed with 2 screws. |
| Item No. | JL-240T-XA1412R7P |
| Power Volt Range | 0~480VAC |
| Rated Frequency | 50/60 Hz |
| Power Loading | 15A max. / AWG#16: 10A max. |
| Signal Loading | 30VDC, 0.25A max. |
| Ambient Temperature | -40℃ ~ +70℃ |
| Receptacle | UV stabilized Polycarbonate (UL94 5VA) |
| Power Contact | Solid Brass |
| Signal Contact | Nickel plated Phosphor Bronze, Gold plated |
| Gasket | Thermal Elastromer (UL94 V-0) |
| Power Lead | 14AWG, AWM1015 |
| Signal Lead | 18AWG, AWM1015 |
| Leads | 12'' |
| Overall Dimensions (mm) | 64Dia.x 38 |
