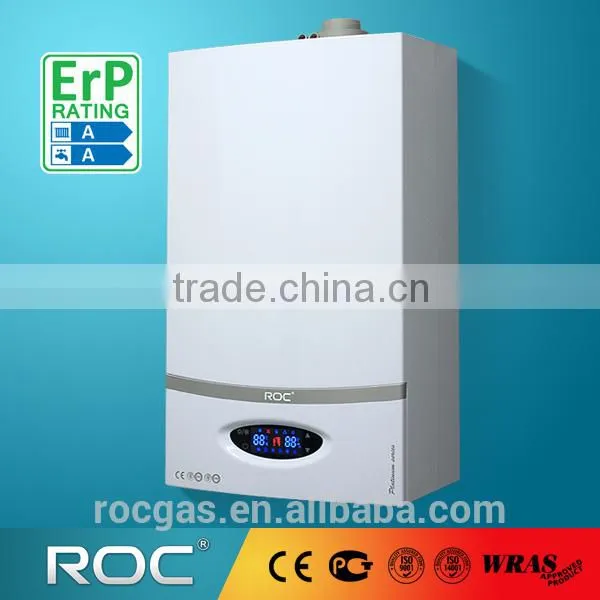

Full Premix Condensing Wall Hung Gas Boiler for Hot Water and Heating--Platinum Series

Platinum Series Condensing Wall-mounted Gas Boiler

Features:

4-sectional stainless steel condensing heat exchange for condensation and utilization of latent heat of the water vapors from exhausting smoke with efficiency till 109%

Fan burner with full gas-air premix provides gas combustion with close to ideal conditions-so the condensation process begins earlier and by higher return line temperature(about 57 ℃)

Electronic controlled fan with variable rotation speed for keeping the optimal minimal required air exceed in the gas-air mix

Control or the return line temperature

Till 40kw heating output, till 23L/min hot water (DHW) with T=25℃

Modulation: boilers output changes automatically to keep the set heating and DHW temperature constant, with great optimization of gas consumption.

Automatic electronic ignition and ionization flame control

Indication of temperatures , working modes, current burner power and error codes on the color multifunctional LCD-display

Integrated pump, expansion tank, heating safety valve, manometer, automatic air exhaust device

Automatic switch-off by: flame blackout, overheating over 90 ℃, too low pressure in the heating system(<0.5bar), too low DHW flow(<2.5L/min), combustion products exhaust failure, failure in electronic.

Service menu for internal functions and working parameters adjusting

Frost protection: burner and pump will be switch on automatically by danger of freezing. It is allowed to use antifreeze liquid instead of water in the heating system.

Supports outdoor temperature driven mode

Supports smooth control with Open Therm room thermostat from any producer

Stainless flue/air duct φ60/100  1m length included
