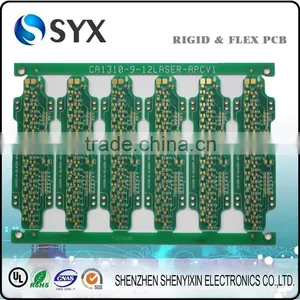

frantronix OEM High Quality 10000 square meter pcb assembly pcb manufacturer
- 80000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
- USB Relay Output Module PCB Board for Home Automation
- PCB Roger Circuit Board with cheap cost & Fast supply
- Cheap cost Rogers PCB production , pcb sample
- Fast Supply Rogers 4350 PCB Circuit Board Prototype and mass pcb production
- High quality Rogers Printed Circuit board with fast supply , rogers material in stock
- 2 layers Taconic Material PCb /Special material pcb circuit board provided
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SYX | Model Number: | SYX |
Number of Layers: | Other, 1-30 layers | Base Material: | FR4, Metal Base, CEM-1, CEM-3, Al2O3, FPC | Copper Thickness: | 1oz-3oz |
Board Thickness: | 1.6mm | Min. Hole Size: | 0.1mm-0.3mm | Min. Line Width: | 0.076mm |
Min. Line Spacing: | 0.076mm | Surface Finishing: | OSP, HASL, ENIG , Planting Gold |
Product Description
Our commitments : 1 Rapid quotation within 2 hours.
2 Response to complaints within 24 hours.
3 24-hour service, with rapid engineering support.
4 Fast delivery service
Item | Manufacture Capability |
Material | FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminum, Metal based/FR1/CEM1/FPC |
Layer No. | 1-- 20 |
Finished Board thickness | 0.2 mm-4.0mm’(8 mil-160 mil) |
Board Thickness Tolerance | ±10% |
Cooper thickness | 0.5 OZ-6OZ (18 um-210 um) |
Copper Plating Hole | 18-40 um |
Impedance Control | ±10% |
Warp &Twist | 0.50% |
Peelable | 0.012"(0.3mm)-0.02’(0.5mm) |
Images | |
Min Trace Width | 0.075mm (3mil) |
Min Space Width | 0.075mm (3mil) |
Min Annular Ring | 0.1mm (4 mil) |
Solder Mask | |
Min Solder Mask Dam | 0.0635 mm (2.5mil) |
Solder mask Clearance | 0.1mm (4 mil) |
Holes | |
Min Hole size (CNC) | 0.1 mm (4 mil) |
Min Punch Hole Size | 0.9 mm (35 mil) |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol | ±0.075mm |
Plating | |
HASL | 2.5um |
Lead free HASL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-5u'' |
OSP | 0.2-0.5um |
Certificate | ROHS, SGS, UL, ISO9001: 2008,TS16949 |
Our PCBs are used for wide range of electronic products,
Like Medical devices, Military equippment ,aumtomobile ,CCTV,
Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.
Why choose us as your pcb production partner?
1.We have professional engineer team who will help you to check your design and make your electronic developement go fast.
2. Our rich expierences in pcb production industry, can make you have the best quality with competitive price pcb.
3.Our dedicated&professional sales team can make our factory and engineer team just as a natural extension of your company.
4.After-sales service. you can easily reach our after-sales service just through our sales. every problem you have will get our professional advice and solution.
5.Constant follow up make us have the fast reaction of your requirement.
PCB Manufacture Quote required:
Gerber file or DXP PCB file or Protel file and PCB sepcification: material; board thickness; copper thickness; surface finish; color of silkscreen and solder mask Quantity and time requirement
if you have specific requirements, please feel free to contact us.
We can do the best.
Shenzhen Shenyixin Electronic Co., Ltd was set up in1998, is a joint venture specializing in PCB production, with registered capital of 800,000 USD, 600 employees, with a factory area of 20,000 square meters, and a monthly production capacity of 500,000 square feet. Our factory has succeeded in passing the certifications of ISO9001 Quality Management System, UL ,RoHS and ISO 14001 Environmental Quality System.
During 9 years, our company has mainly produced 2-30 layer PCBs, wh... View detail
