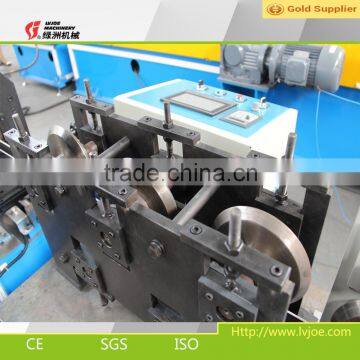

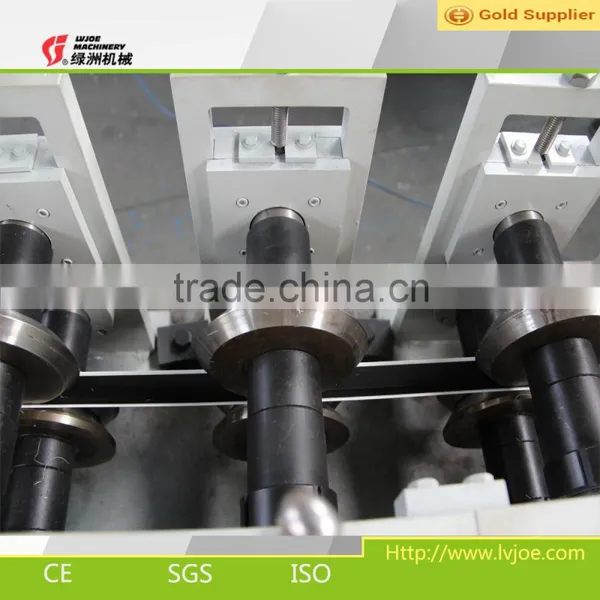

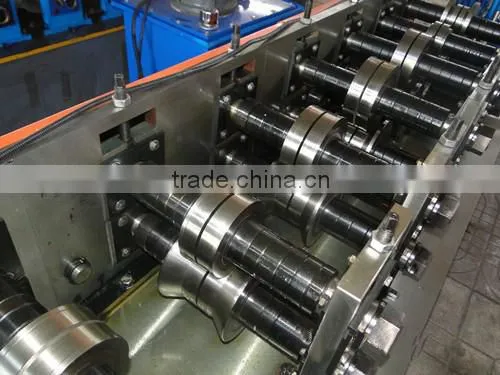

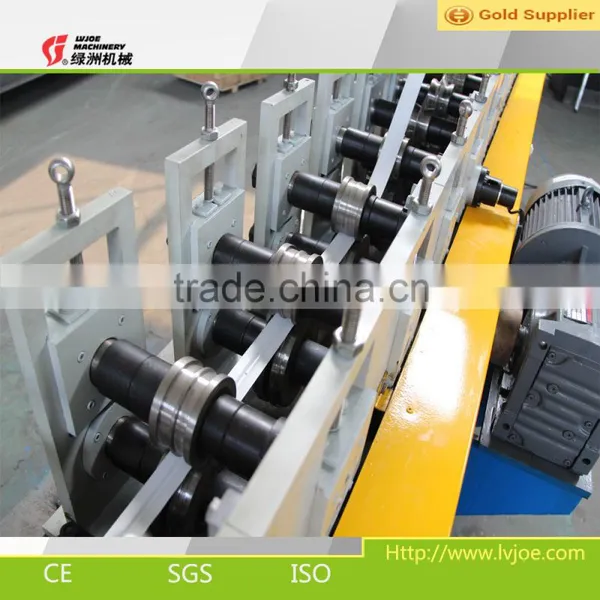

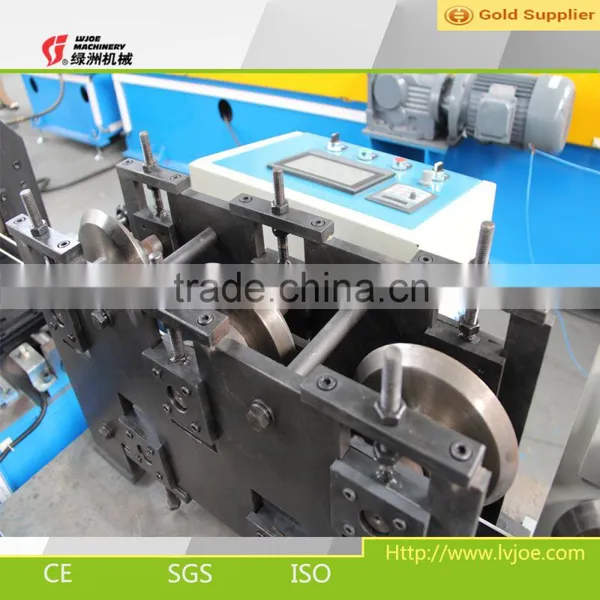

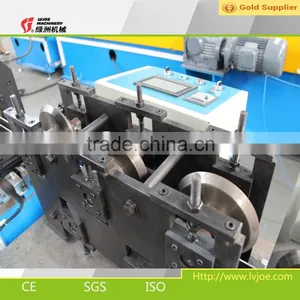

Building Material C U Shaped Light Steel Keel Roll Forming Machine
Technical parameter of production line
Workflow
Decoiling the sheet — Sheet guiding — Roll forming — Measure
length Cutting the panel— panels to the supporter
Key Specifications/Special Features:
· The light steel keel roll forming machine is used as keel for light steel building system
·
1).Automatic inner tight decoiler
il inner diameter 450mm-550mm
b. maximum width of coiling600mm
c. maximum weight of loading 2500kg
2). Main forming machine
a. number of forming steps 11rows
b. material of shaft 45# steel . Outer diameter 60mm
c.main motor power: 5.5kw
d. The speed of forming: 0-50m/min
3).Hydraulic cutter
a. material of blade:Cr12 mould steel with quenched treatment 60-62
b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
4).The electrical control system
a. The Brand of display: DELTA
b.The main computer (PLC): DELTA DVP14
5).Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3kw
6).The equipments coating , package
a.the coating adopt international general shade-guide
b.The package :simple waterproof package.
Main technology: we can design machine according to
your requirement
| Name | Value |
| Brand | HKY and OEM |
| Model | HKY-L |
| Production Capacity | 30 sets/per Month |
| Automatic Grade | full automatic |
| Voltage | 380v/50hz,3phase,or as customer's request |
| Power | 7.5+4kw,depend on different profile |
| Place of Origin | Hebei,China |
| Year | 2014 |
| Dimension(L*W*H) | 3*0.6*1.3m |
| Weight | 3.9tons |
| Warranty | 1 year,and lifelong tracking service |
| Width of raw material | on different profile |
